How Dk and Df Affect High Frequency PCB Performance

Dk and Df are two of the most important material parameters in high frequency PCB design. Dk, also called dielectric constant, affects signal speed, wavelength, impedance, and circuit dimensions. Df, also called dissipation factor or loss tangent, affects how much signal energy is lost inside the PCB material.

For standard low-frequency electronic boards, Dk and Df may not be the first concern. But for high frequency PCB, RF PCB, microwave PCB, antenna PCB, radar PCB, 5G communication PCB, and satellite communication PCB, these two values can directly affect signal performance, impedance stability, insertion loss, and production repeatability.

Rogers explains that dielectric constant is often one of the first numbers engineers consider when selecting PCB materials, but Dk values are not always fixed; they can depend on test method, frequency, temperature, and material conditions.

Quick Summary

Dk affects signal speed, impedance, wavelength, antenna size, and transmission line geometry.

Df affects signal loss, insertion loss, heat loss inside the dielectric material, and RF transmission efficiency.

Stable Dk is important for controlled impedance, antenna matching, microwave circuits, and repeatable RF performance.

Lower Df is usually preferred for high frequency PCB applications where signal loss must be reduced.

For RF and microwave PCB projects, Riching PCB supports High Frequency PCB, RF PCB manufacturing, Microwave PCB manufacturing, Rogers PCB materials, and PTFE PCB manufacturing for projects requiring low-loss materials, controlled impedance, and stable high frequency performance. Riching PCB’s Rogers Materials page also describes Rogers materials as suitable for RF, microwave, antenna, radar, satellite communication, and advanced communication PCB applications.

What Is Dk in PCB Materials?

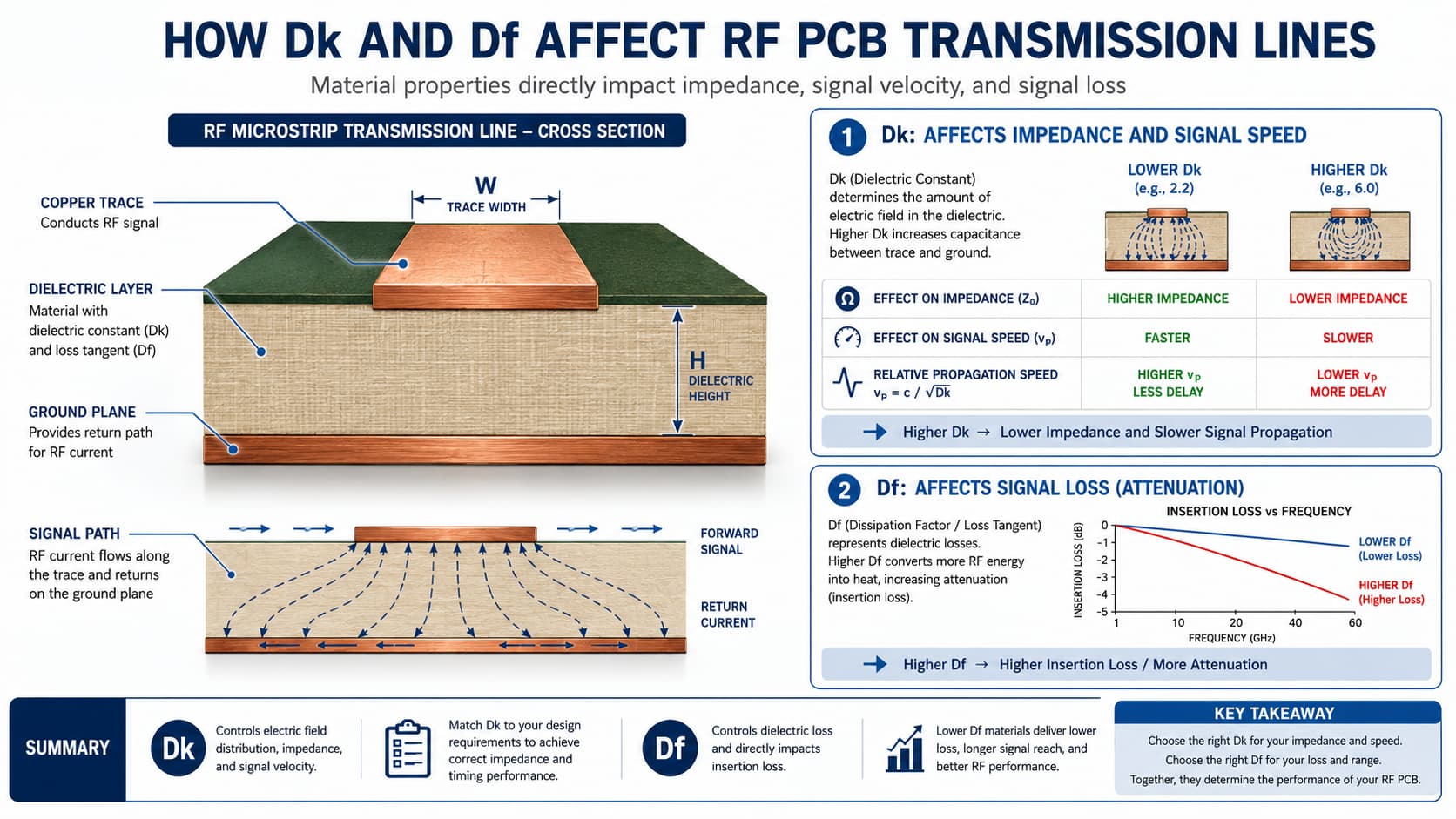

Dk stands for dielectric constant. It describes how the PCB material affects the electric field between copper conductors.

In practical RF and microwave PCB design, Dk affects:

Signal speed
Transmission line impedance
Wavelength inside the material
Antenna size
Trace width calculation
Circuit dimensions
Phase behavior

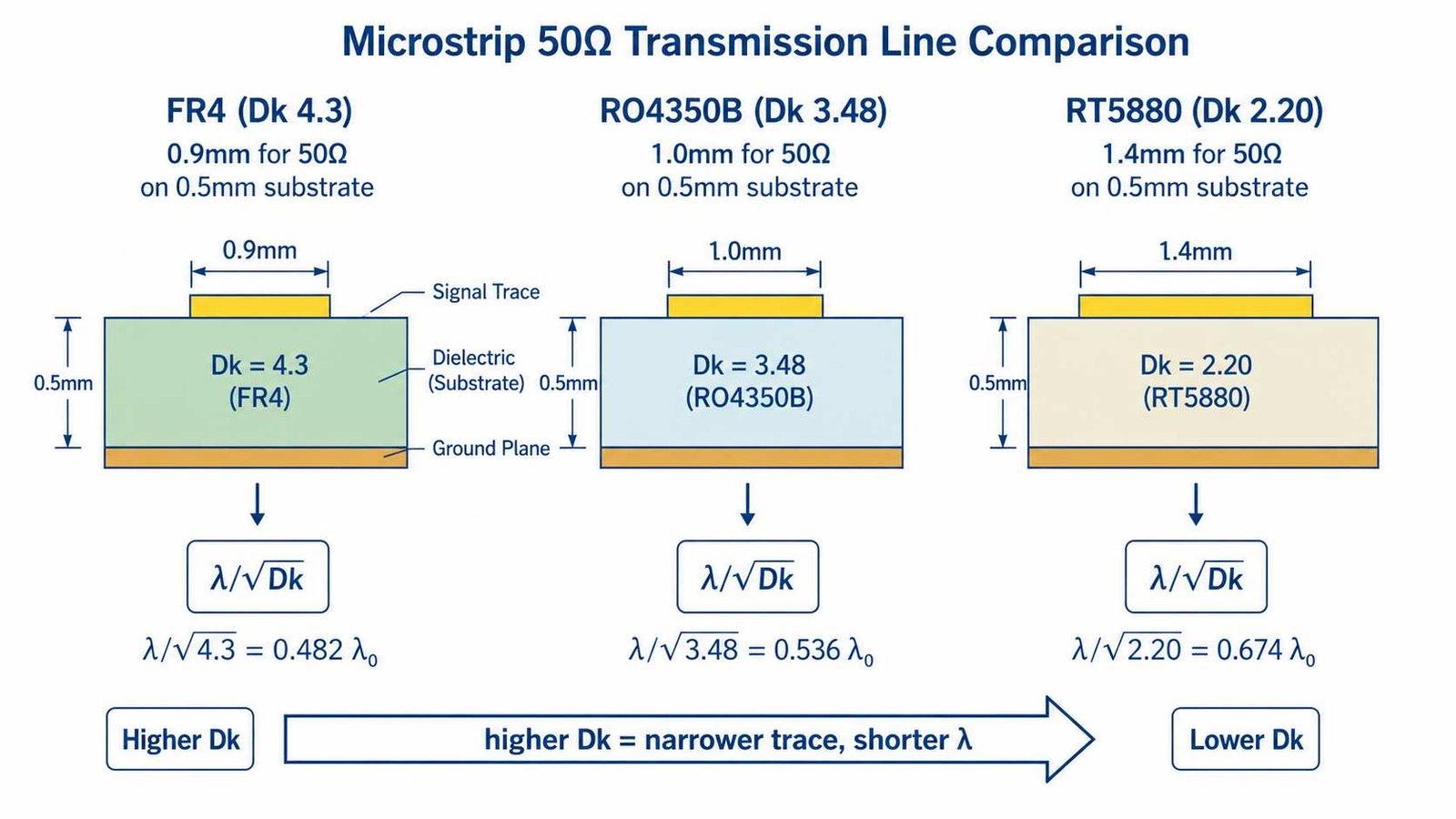

A higher Dk material can make circuit structures smaller for a given frequency, while a lower Dk material may help reduce certain design constraints depending on the application. Rogers notes that circuit size for a given wavelength decreases as dielectric constant increases, but material selection should not be based on Dk alone.

For RF PCB and microwave PCB projects, the stability of Dk is often more important than simply choosing a high or low Dk value. If Dk changes with frequency, temperature, or material batch, the final circuit may behave differently from the design model.

What Is Df in PCB Materials?

Df stands for dissipation factor. It is related to dielectric loss inside the PCB material.

In high frequency PCB applications, part of the signal energy can be lost as it travels through the dielectric material. A lower Df usually means lower dielectric loss and better signal transmission efficiency.

Df is especially important for:

Microwave PCB
Radar PCB
Antenna PCB
Satellite communication PCB
RF front-end circuits
High frequency test equipment
Long RF transmission paths

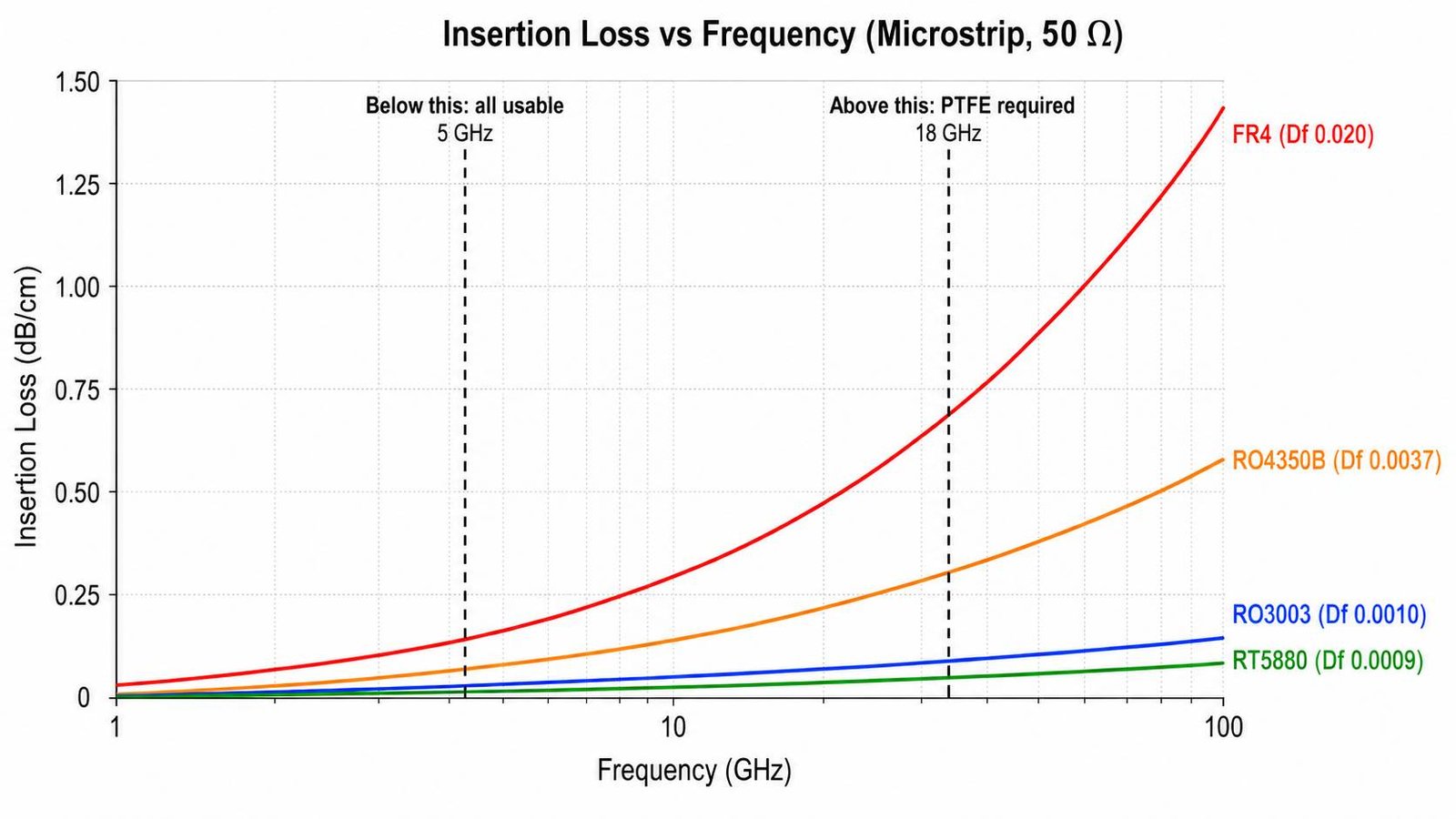

As frequency increases, signal loss becomes more important. This is why low-loss PCB materials are often used in RF and microwave projects instead of standard FR4.

Rogers RO4000 LoPro data describes low conductor loss and improved insertion loss and signal integrity, and it also lists dissipation factor values for RO4003C, RO4350B, and RO4835 LoPro materials.

Why Dk Matters for Controlled Impedance

Controlled impedance is one of the most important requirements in RF PCB manufacturing.

Impedance depends on several factors:

Dk
Dielectric thickness
Trace width
Copper thickness
Reference ground plane
Solder mask
Manufacturing tolerance

If the Dk value is different from the value used in the impedance calculation, the final PCB impedance may shift. This can cause signal reflection, poor matching, unstable RF behavior, or failed testing.

For this reason, RF PCB stackup design should always use the correct material Dk value and actual dielectric thickness.

Why Df Matters for Signal Loss

Df matters because it affects how much signal energy is lost in the PCB material.

In RF and microwave circuits, signal loss can reduce transmission distance, lower antenna efficiency, weaken radar signal performance, and affect test results.

Low Df materials are often preferred for:

RF modules
Microwave circuits
Antenna systems
Radar electronics
Satellite communication
5G communication devices
Wireless infrastructure
Test and measurement equipment

Rogers describes its RO4000 series as low-loss, high frequency materials with well-controlled dielectric properties for microwave and RF applications, including mobile networks.

For B2B PCB buyers, Df is important because it can affect both prototype testing and batch production consistency. If the material loss is too high for the application, changing trace width or stackup alone may not solve the performance problem.

Dk and Df in Material Selection

When choosing high frequency PCB materials, engineers should review Dk and Df together.

A material with a suitable Dk but high Df may still create too much signal loss. A material with low Df but unstable Dk may create impedance or phase problems.

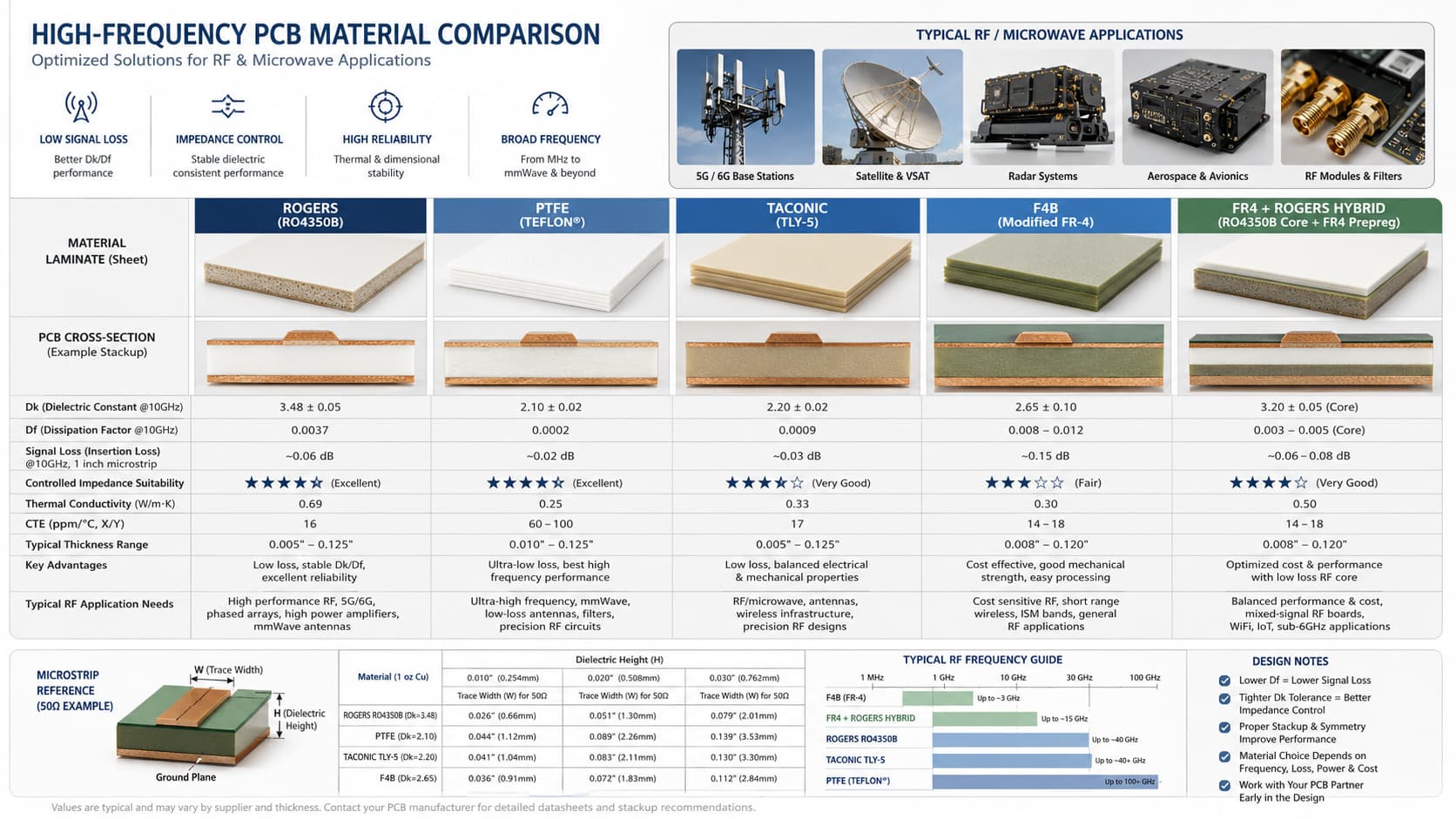

Common material options include:

Rogers materials
PTFE laminates
Taconic materials
F4B materials
FR4 plus high frequency hybrid stackups

Riching PCB’s Rogers Materials page is a useful internal link for projects requiring stable dielectric performance and controlled impedance. For low-loss microwave applications, you can also link to PTFE PCB manufacturing and Microwave PCB manufacturing.

Dk and Df for Antenna PCB

Antenna PCB performance is closely related to material Dk and Df.

Dk can affect antenna size, resonant behavior, impedance matching, and feed line design. Df can affect antenna efficiency and signal loss.

For antenna PCB projects, engineers should review:

Operating frequency
Material Dk
Material Df
Board thickness
Copper pattern accuracy
Feed line impedance
Ground plane design
Surface finish
Manufacturing tolerance

Dk and Df for Radar and Microwave PCB

Radar and microwave PCB projects are highly sensitive to material loss and dielectric stability.

If Dk is unstable, radar signal phase, impedance, and frequency behavior may be affected. If Df is too high, signal attenuation may increase.

This is why radar PCB and microwave PCB projects often use low-loss high frequency materials instead of standard FR4.

Do Not Choose PCB Materials by Dk Alone

A common mistake is choosing PCB material only by Dk.

Dk is important, but it is not the only factor. The final material decision should also consider:

Df
Dk tolerance
Frequency stability
Temperature stability
Copper type
Dielectric thickness
Availability
Stackup feasibility
Drilling and plating reliability
Surface finish
Cost target

Rogers notes that material choice should consider dielectric constant together with other material parameters, rather than selecting based on one parameter only.

For production, the manufacturer should review both electrical performance and fabrication feasibility before confirming the final material.

What Information Is Needed for Material Review?

To review Dk and Df properly, the PCB manufacturer usually needs:

Gerber files
Drill files
PCB stackup
Material requirement
Working frequency
Controlled impedance requirement
Board thickness
Copper thickness
Surface finish
Quantity
Application background
Prototype or batch production requirement

If the material is not fixed, the manufacturer can help compare Rogers, PTFE, Taconic, F4B, FR4, or hybrid stackup options based on frequency, loss requirement, impedance, and cost target.

Conclusion

Dk and Df are key material parameters in high frequency PCB design.

Dk affects signal speed, impedance, wavelength, antenna behavior, and circuit dimensions. Df affects signal loss, insertion loss, RF efficiency, and microwave signal stability.

For RF PCB, microwave PCB, antenna PCB, radar PCB, 5G communication PCB, and satellite communication PCB projects, Dk and Df should be reviewed together with stackup design, controlled impedance, copper thickness, surface finish, and manufacturing feasibility.

Working with an experienced high frequency PCB manufacturer can help reduce material selection risk and improve production consistency.
