High Frequency PCB Materials for RF & Microwave Applications
We support Rogers, PTFE, Taconic, F4B, FR4 hybrid stackups, and other low-loss materials for RF, microwave, antenna, radar, and communication PCB projects.
Product Categories

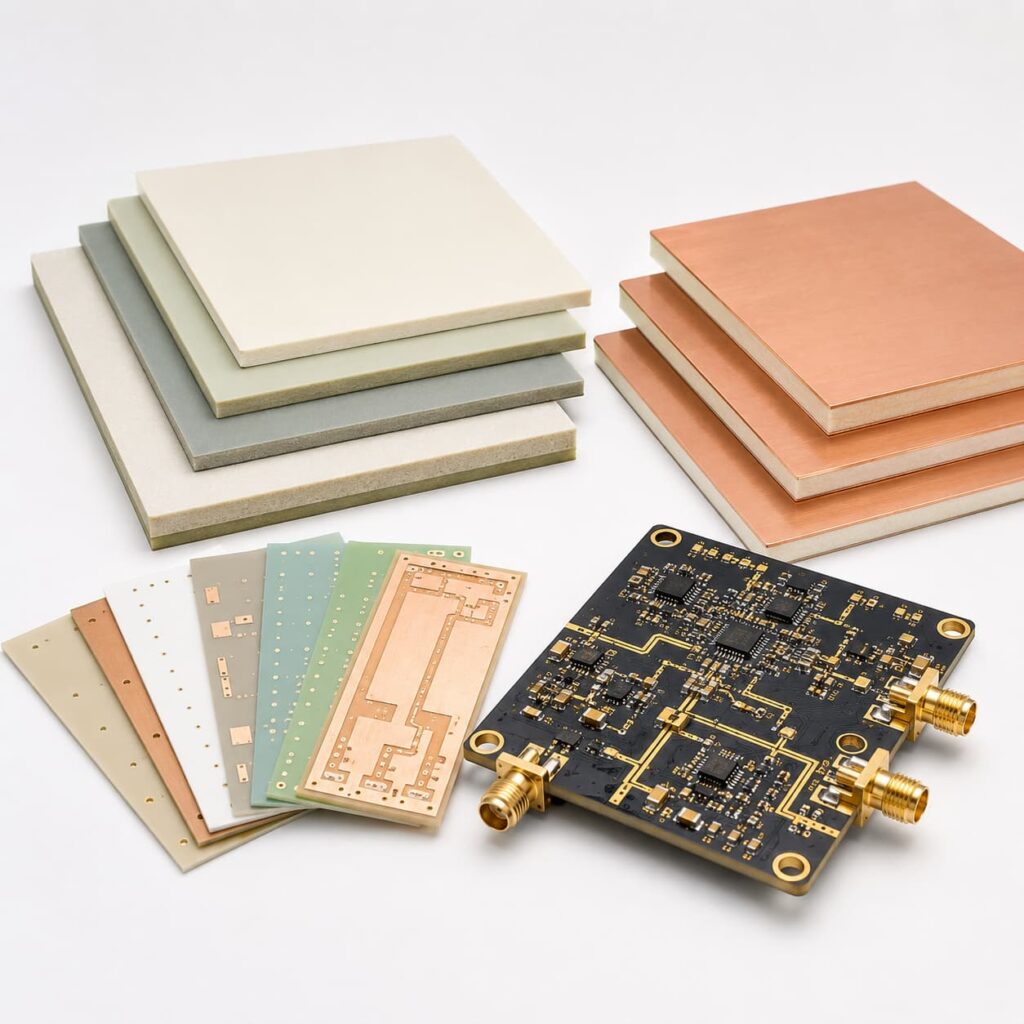

RO4000 series, RT/duroid series, and other Rogers laminates for RF, microwave, antenna, radar, and communication PCB projects.

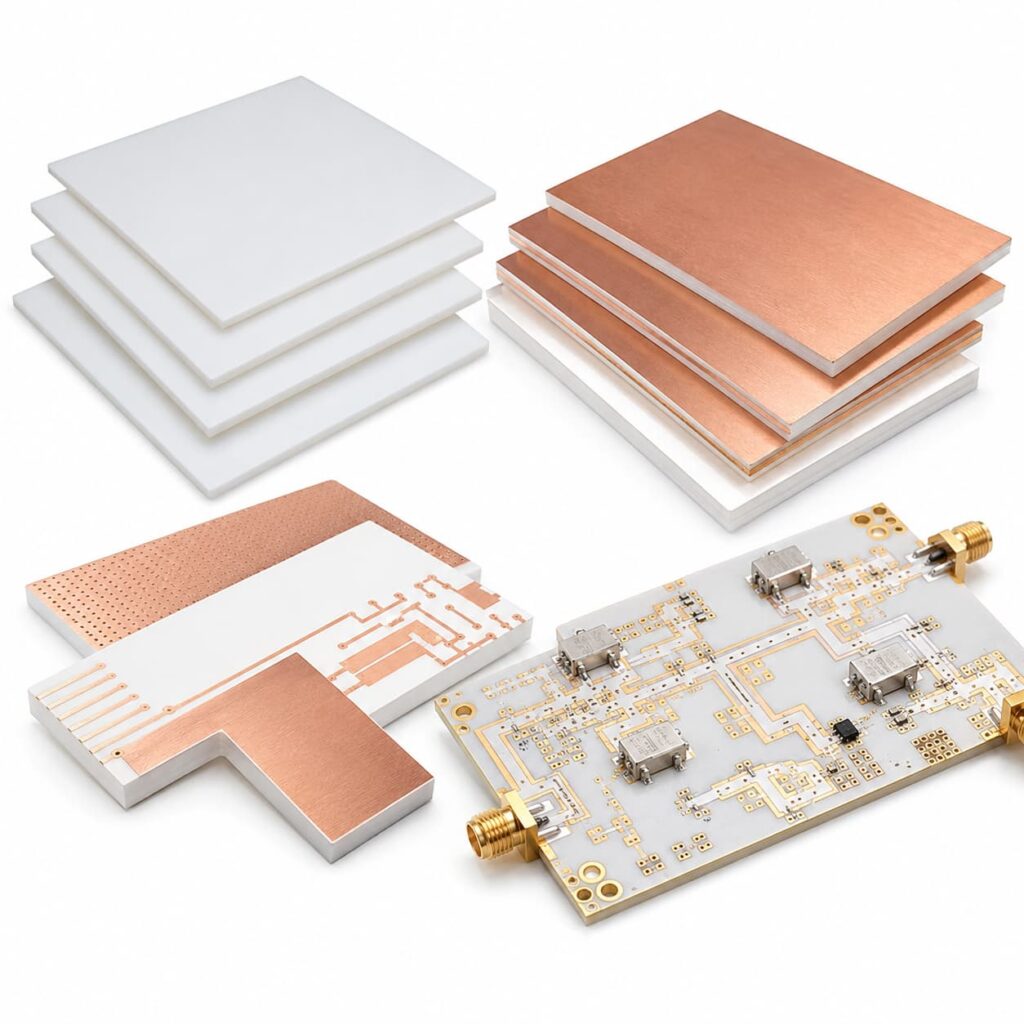

Low-loss PTFE materials for microwave circuits, RF modules, antenna systems, and high-frequency electronic devices.

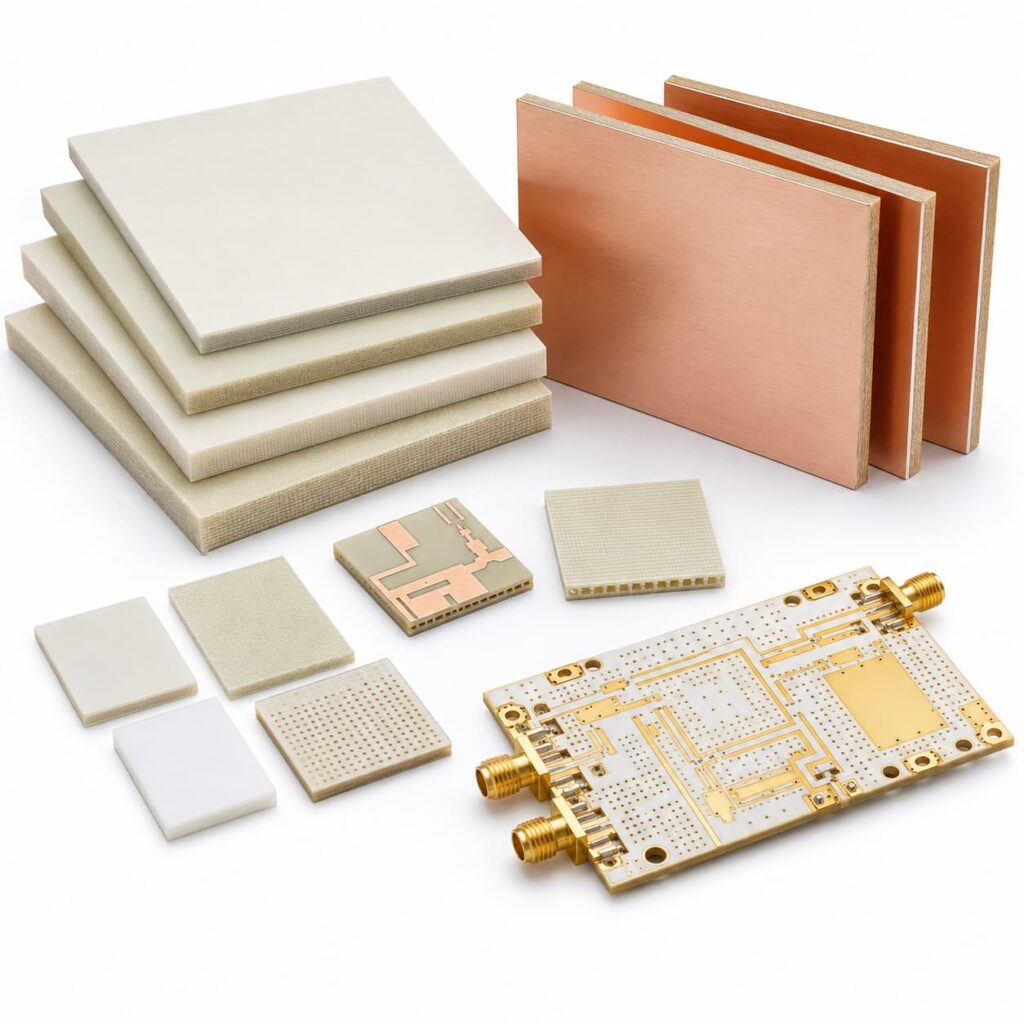

Commonly used for RF and microwave PCB projects requiring low dielectric loss and stable signal performance.

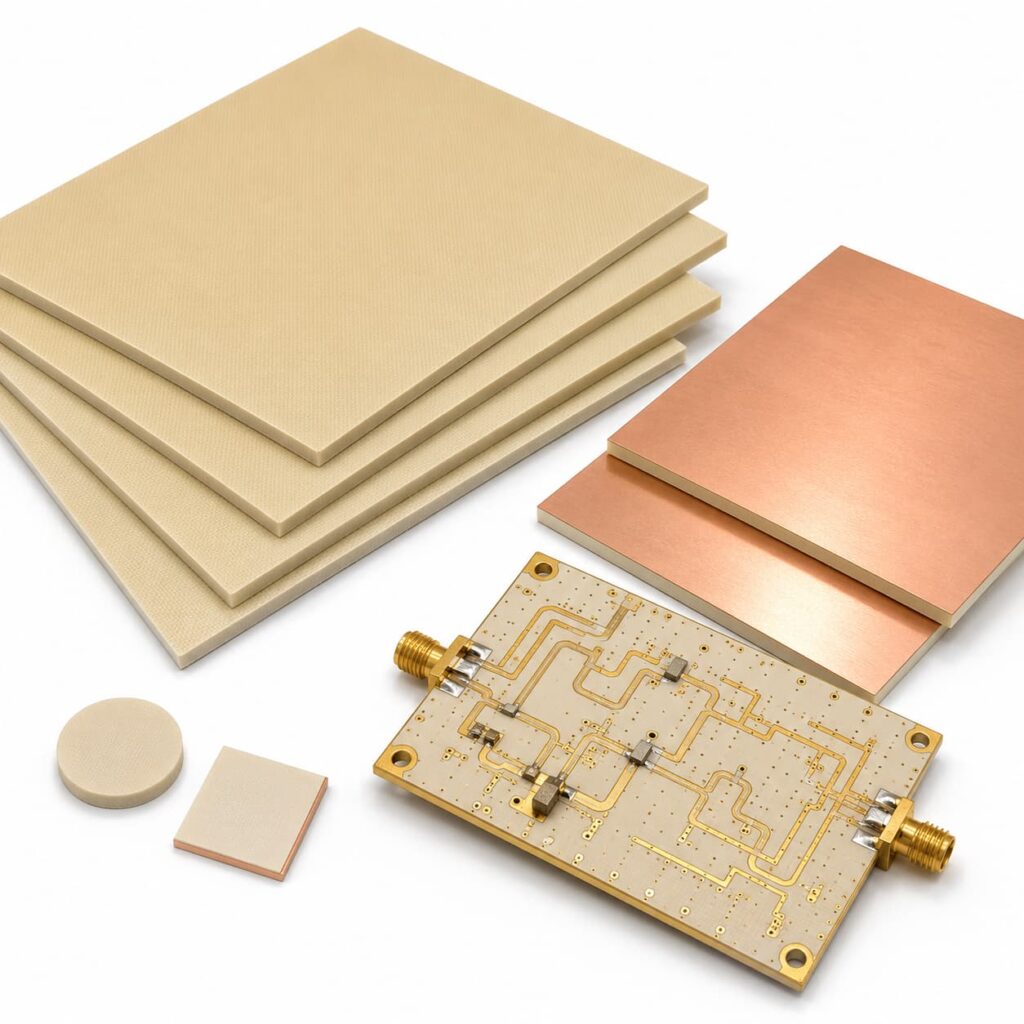

A practical material option for RF and microwave PCB projects with balanced performance, availability, and production efficiency.

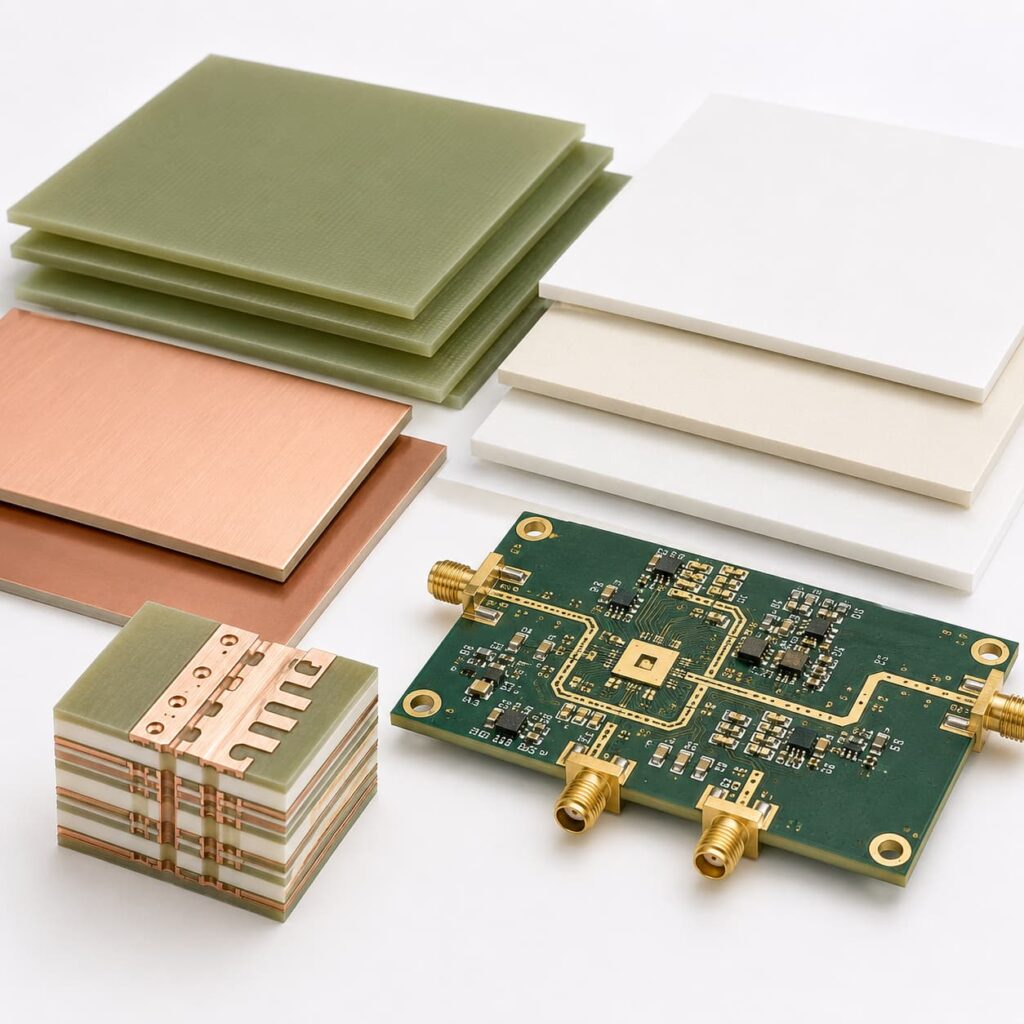

Hybrid stackups combine FR4 and high-frequency materials to balance cost, mechanical structure, and electrical performance.

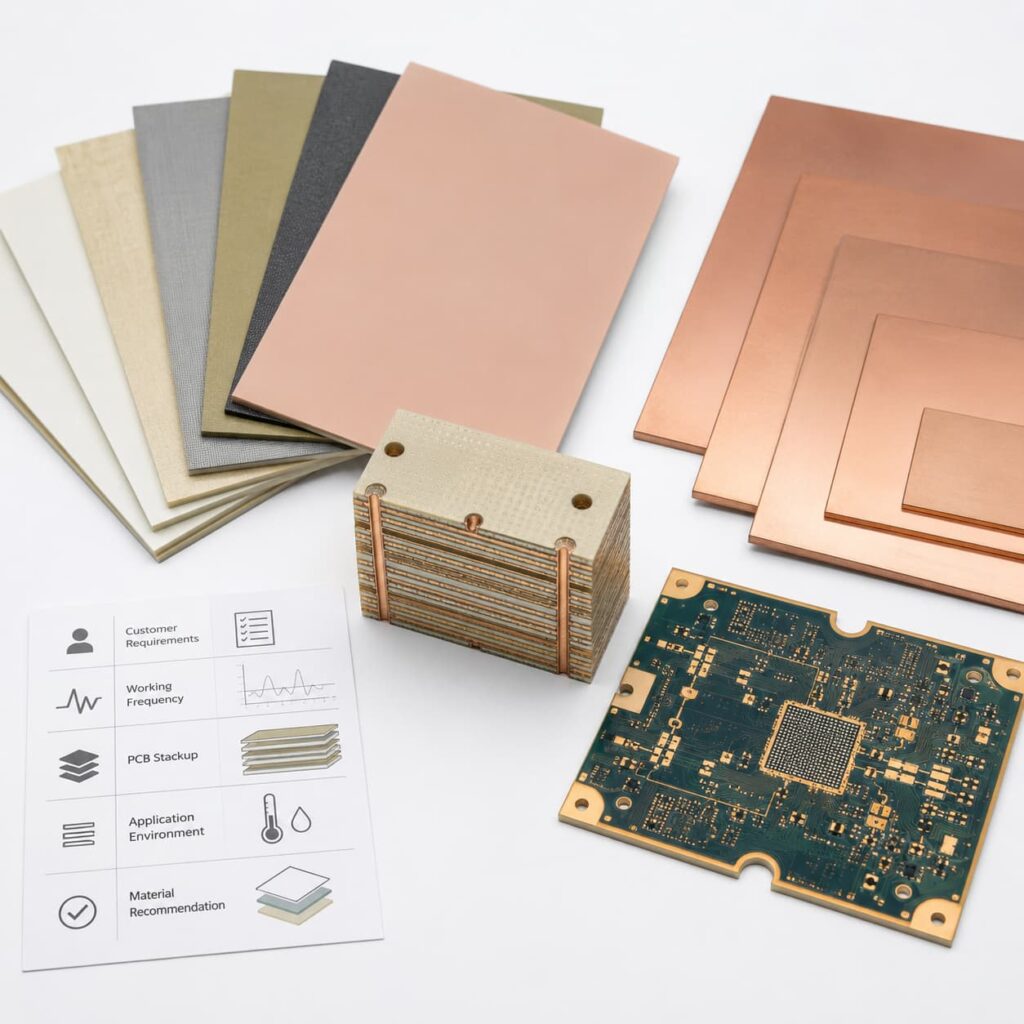

We can review material requirements based on customer specifications, working frequency, stackup, and application environment.
How to Choose the Right PCB Material for Your Project
Choosing the right PCB material depends on working frequency, dielectric loss, impedance control, thermal stability, mechanical structure, and production cost.
For RF and microwave PCB projects, material selection directly affects signal loss,
phase stability, reliability, and manufacturing yield.
- Working frequency
- Dielectric constant requirement
- Loss tangent requirement
- Controlled impedance
- Board thickness
- Copper thickness
- Layer count
- Application environment
- Prototype or batch production
High Frequency PCB Material Comparison
High Frequency PCB Material Comparison
Different high frequency PCB materials are suitable for different RF, microwave, antenna, and communication applications. The table below gives a simple overview for material selection.
| Material Type | Common Use | Main Advantage |
|---|---|---|
| Rogers | RF, microwave, antenna, radar | Stable electrical performance |
| PTFE | Microwave circuits, low-loss RF modules | Very low signal loss |
| Taconic | RF and microwave PCB projects | Low dielectric loss |
| F4B | Communication and RF PCB projects | Practical cost-performance balance |
| FR4 Hybrid | Multilayer RF PCB structures | Cost and structure balance |
| Other Materials | Custom high frequency PCB projects | Reviewed by specification |
Applications of High Frequency PCB Materials
RF Modules
Microwave Communication
Antenna Systems
Radar Electronics
Satellite Communication
5G Communication Devices
Wireless Infrastructure
Industrial RF Equipment
Test & Measurement Devices
Material Stackup and Engineering Review Before Production
Before production, our engineering team reviews the material type, stackup structure, board thickness, impedance requirements, copper thickness, hole design, and manufacturing tolerance. This helps reduce production risks for RF and microwave PCB projects.
We Can Review
Material availability
Stackup feasibility
Controlled impedance requirement
Drill and plated through-hole design
Copper thickness and surface finish
Prototype and batch production requirements
PCB Manufacturing Capabilities for High Frequency Materials
We support high frequency PCB manufacturing with Rogers, PTFE, Taconic, F4B, FR4 hybrid stackups, and other low-loss materials for RF and microwave applications.
Material Processing
- Rogers material processing
- PTFE laminate processing
- High frequency material lamination
- FR4 hybrid stackup production
Manufacturing Control
- Controlled impedance
- Stable plated through holes
- Tight tolerance drilling
- Low-loss circuit fabrication
- Prototype and batch production
Send Your Gerber Files for Engineering Review
For high-frequency PCB projects, accurate material selection, stackup design, impedance control and production review are essential. Send us your Gerber files and project requirements, and our engineering team will review them before quotation.
