Sourcing High-Frequency PCB Substrates: A Procurement Guide for RF and Microwave Layouts

Introduction

Selecting the appropriate substrate for a High-Frequency (HF) PCB is one of the most critical decisions in radio frequency (RF) hardware development. The choice goes far beyond balancing the bill of materials (BOM); it directly governs insertion loss, signal propagation speed, thermal management, and structural yield during fabrication.

While standard FR-4 laminates are completely fine for everyday, low-speed electronics, they fail when processing microwave frequencies, 5G networks, automotive radar, or satellite telemetry. At these elevated operational thresholds, poor material choices degrade signal integrity and cause unexpected hardware failures during laboratory verification.

This guide outlines the critical mechanical and electrical metrics technical buyers and layout engineers must evaluate when sourcing high-frequency substrates from specialized fabrication facilities.

Technical Benchmarks: The Core Physics of Substrate Selection

In high-frequency designs, traces behave as transmission lines rather than simple current conduits. To maintain uniform wave propagation, you must optimize three primary material characteristics:

1. Dielectric Constant ($D_k$ or $\varepsilon_r$) Stability

The dielectric constant determines the electrical wavelength and signal velocity within the substrate. For high-frequency layouts, consistency is paramount. The chosen material must exhibit a flat $D_k$ curve across changing temperature distributions and wide operational frequency bands. If the $D_k$ fluctuates wildly, the trace experiences impedance shifts, causing signal reflection and phase distortion.

2. Dissipation Factor ($D_f$ or $\tan\delta$) and Insertion Loss

The dissipation factor, or loss tangent, measures the percentage of RF energy absorbed by the core dielectric material and lost as ambient heat. Microwave applications demand ultra-low-loss substrates where $D_f < 0.002$. Forcing a multi-gigahertz signal down a standard high-loss FR-4 trace results in severe signal attenuation, rendering long transmission lines unusable.

3. Coefficient of Thermal Expansion (CTE)

RF power amplifiers and wireless base stations generate high thermal loads. If the substrate’s thermal expansion coefficient does not match the copper foil, thermal stress will crack plated through-hole (PTH) via barrels during operational heating cycles, destroying the multi-layer interconnects.

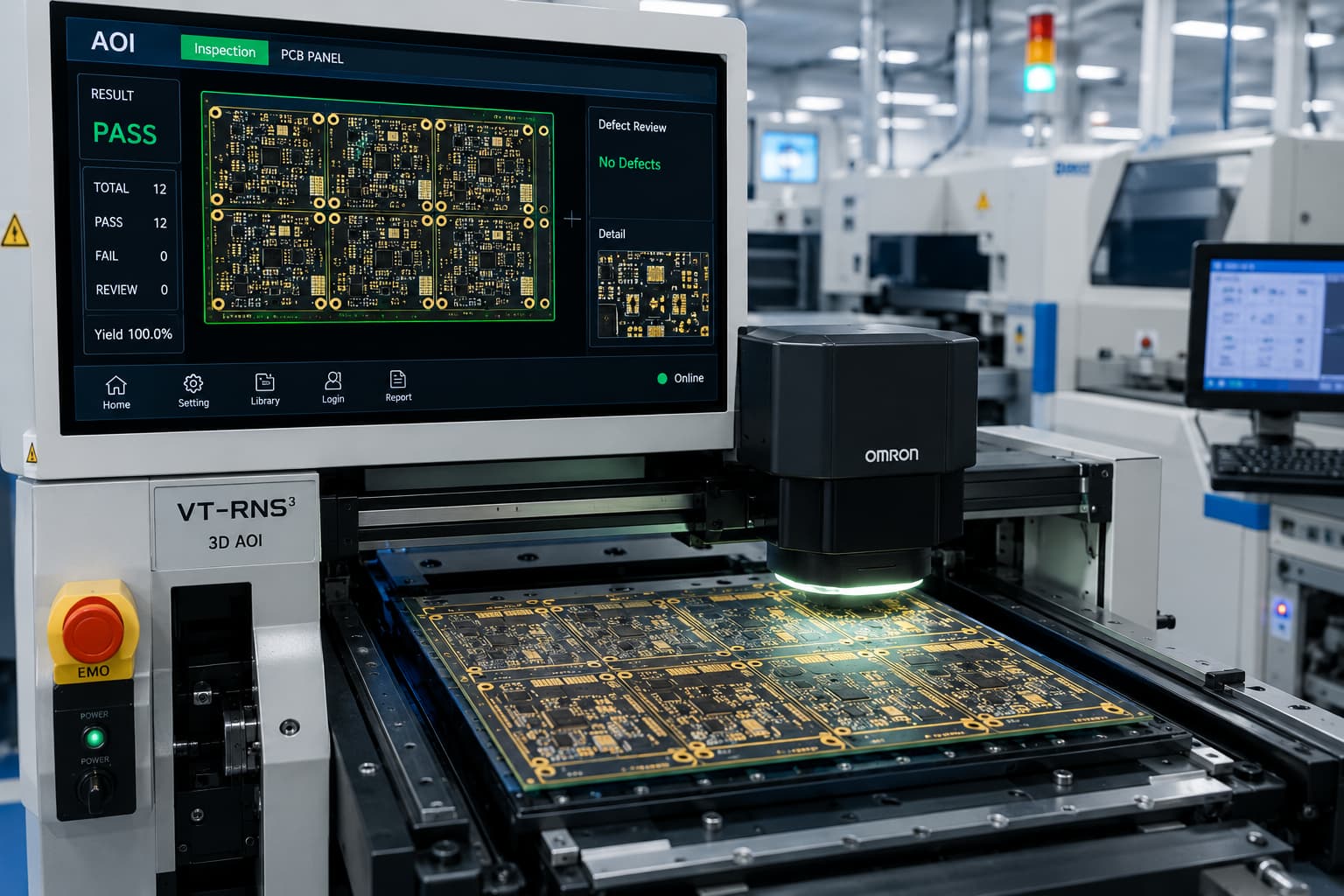

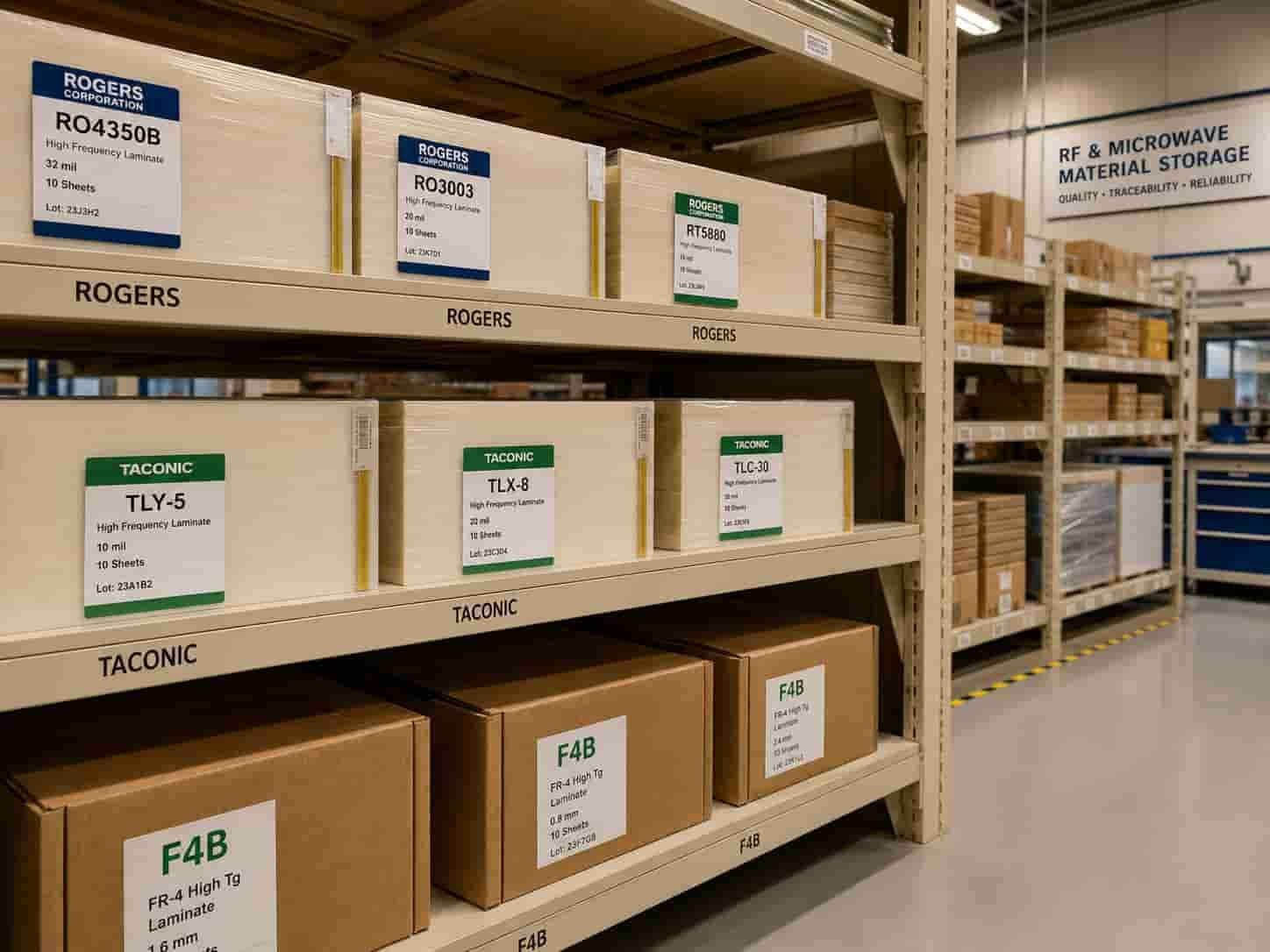

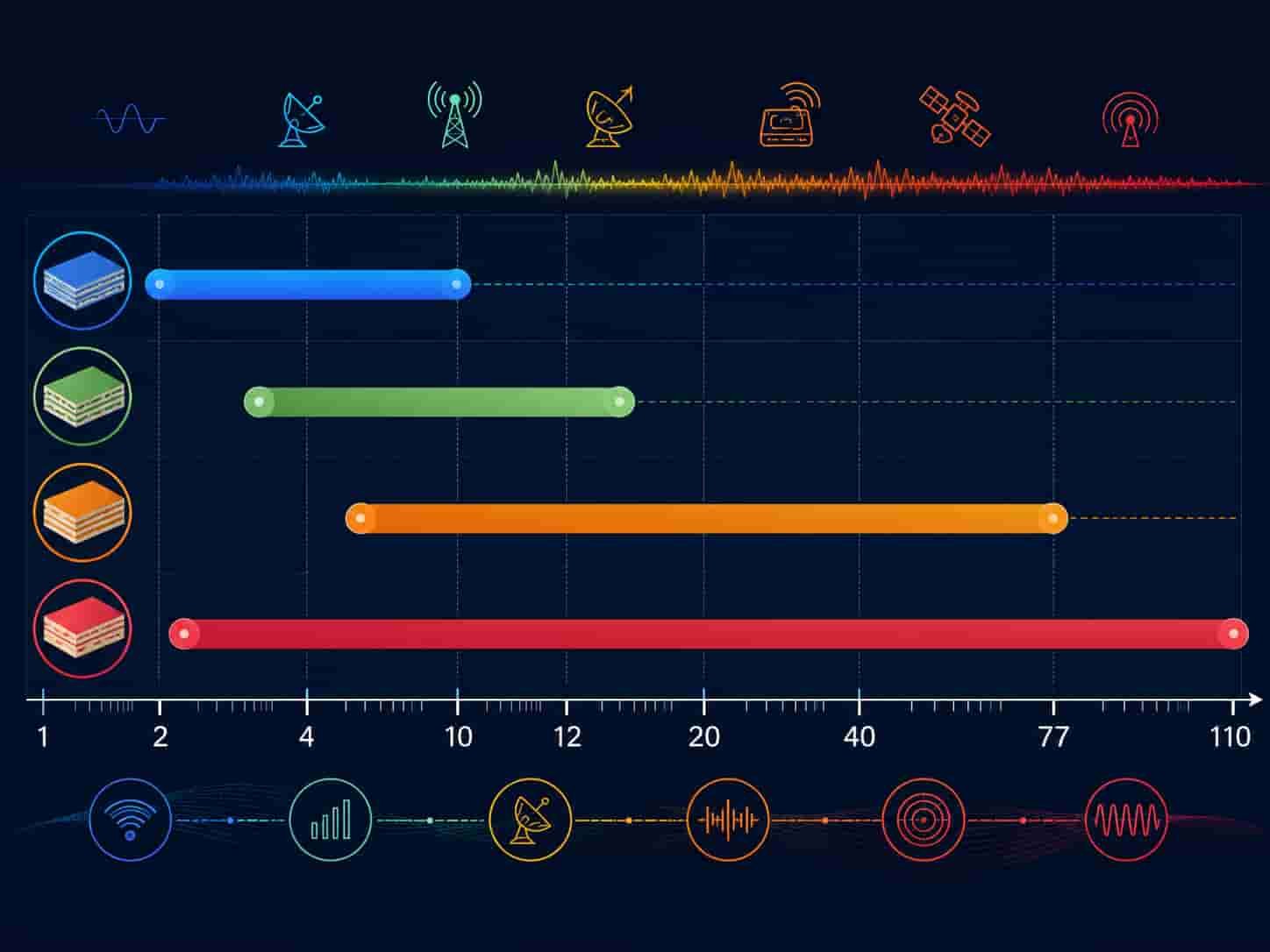

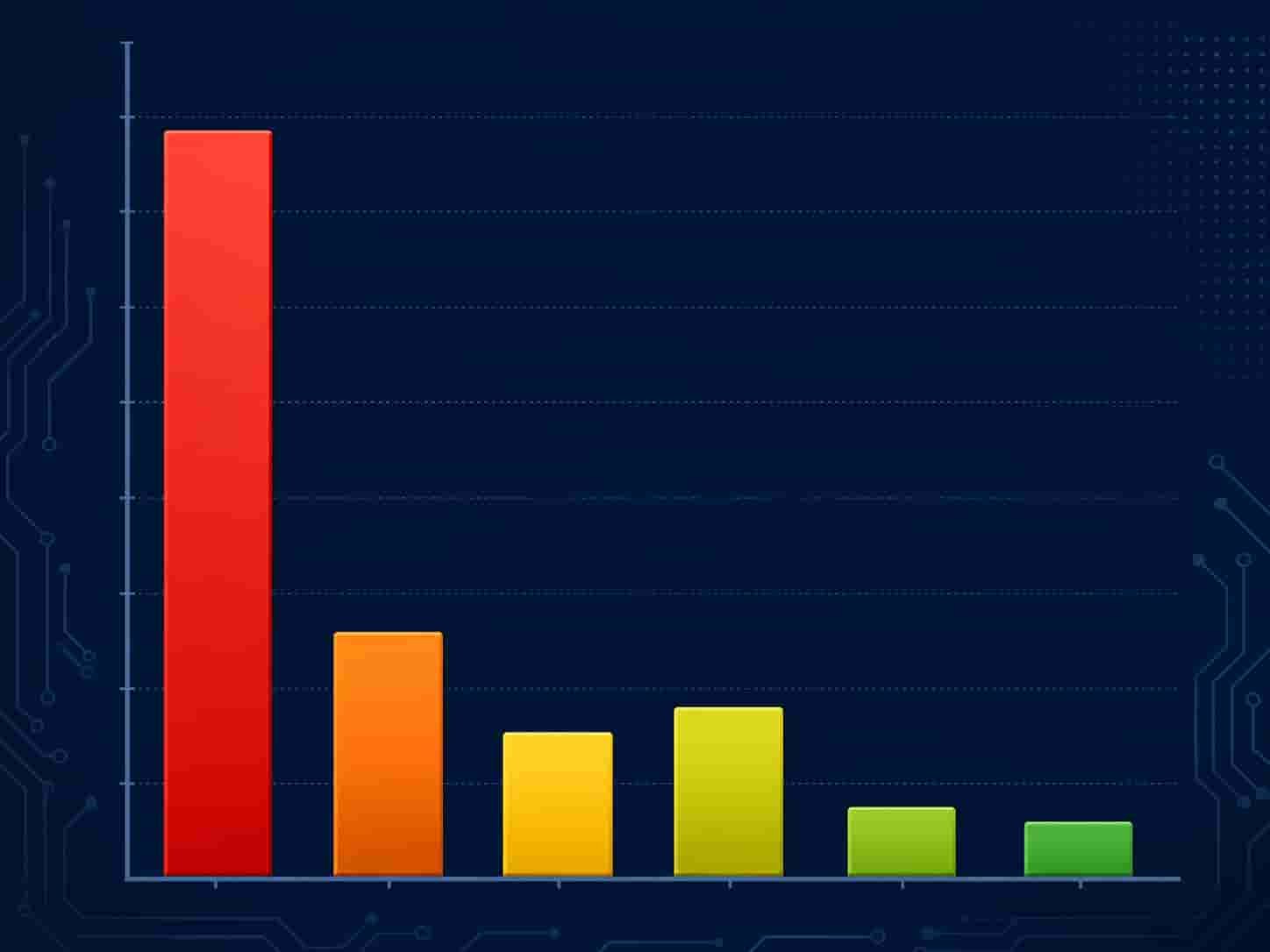

The High-Frequency Material Matrix

Modern fabrication facilities work with a diverse spectrum of raw substrates tailored to specific frequency domains, performance metrics, and cost targets.

+------------------+------------------+---------------------+-------------------+
| Substrate Family | Standard Dk      | Dielectric Loss (Df)| Best Application  |
+------------------+------------------+---------------------+-------------------+
| Rogers (Thermoset| 3.0 - 4.5        | Low to Moderate     | Commercial 5G, RF |
| Hydrocarbon)     |                  | (0.002 - 0.004)     | Power Amplifiers  |
+------------------+------------------+---------------------+-------------------+
| Pure PTFE        | 2.1 - 2.5        | Ultra-Low           | SatCom, Aerospace,|
| (Teflon Based)   |                  | (< 0.001)           | 77 GHz Radar      |
+------------------+------------------+---------------------+-------------------+
| F4B (Woven Glass | 2.5 - 3.0        | Economical Low-Loss | Budget Antenna    |
| PTFE)            |                  | (0.003 - 0.004)     | Arrays, IoT       |
+------------------+------------------+---------------------+-------------------+

Rogers Materials: The Industry Benchmark

Laminates manufactured by the Rogers Corporation—specifically the RO4000 and RT/duroid series—are highly popular in commercial RF designs. Unlike soft fluoropolymers, Rogers hydrocarbon ceramic substrates can be processed using standard FR-4 fabrication machinery, keeping manufacturing overhead low while maintaining exceptional $D_k$ tolerances.

PTFE Formulations: The Low-Loss Standard

Pure Polytetrafluoroethylene (PTFE) cores offer the lowest possible dissipation factors, making them indispensable above 10 GHz. However, PTFE is chemically inert, soft, and mechanically flexible. It requires distinct manufacturing experience, including plasma desmear cycles and customized drilling parameters, to ensure reliable copper adhesion inside through-hole barrels.

Taconic Materials: Optimized for Antennas

Taconic laminates emphasize structural reinforcement using woven glass matrices impregnated with PTFE. They are widely utilized in massive MIMO antenna arrays and wireless infrastructure due to their resistance to moisture absorption and excellent dimensional stability under humid environmental conditions.

F4B Substrates: Cost-Effective Microstrip Runs

F4B is a widespread standard for high-volume, budget-sensitive RF commercial applications. It balances acceptable low-loss performance with broad material availability, making it an appropriate choice for entry-level microwave circuits that do not justify the premium cost of top-tier ceramics.

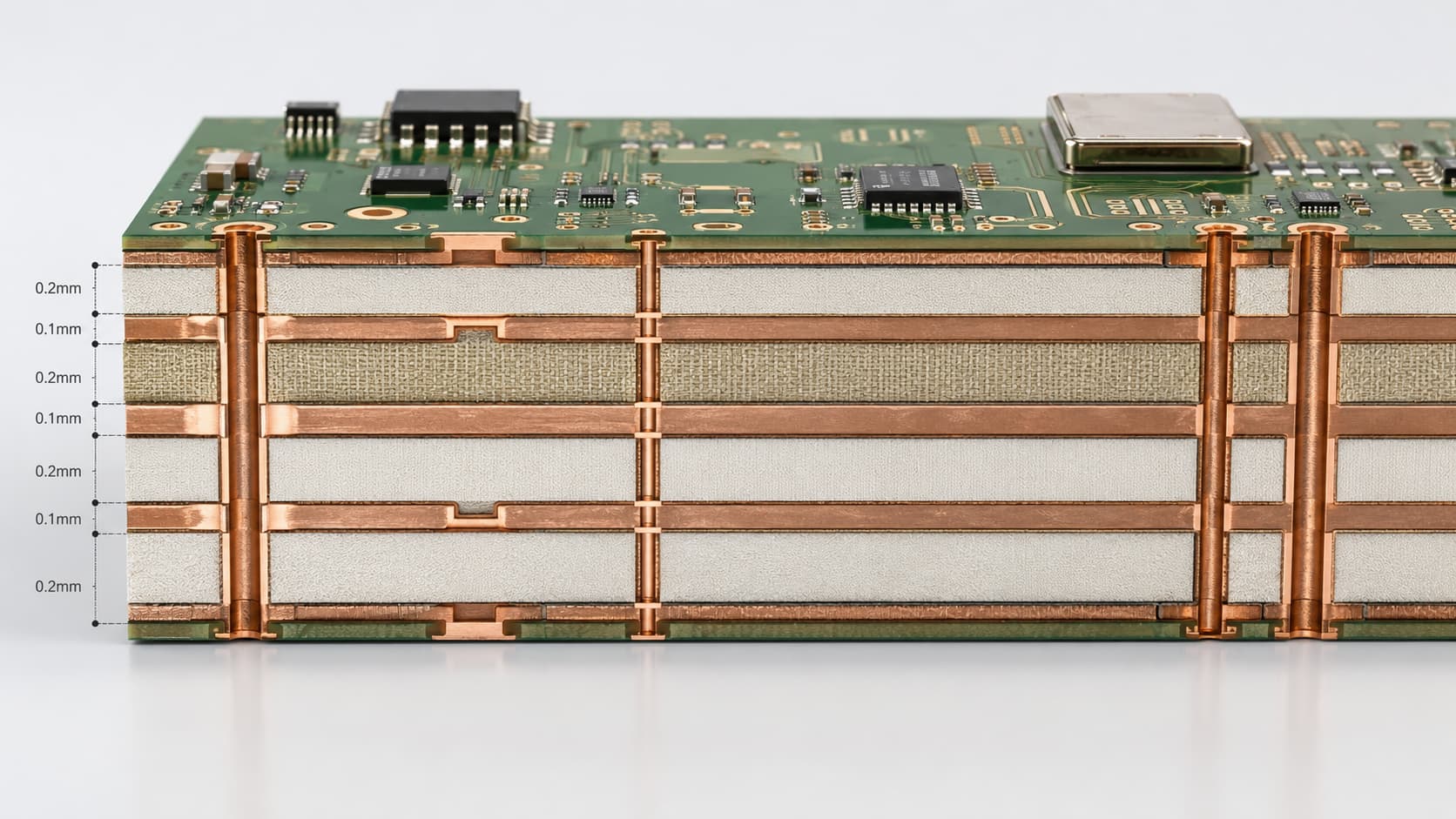

Maximizing Margins with Hybrid Stackups

For sophisticated multi-layer boards, using premium high-frequency laminates across every layer can introduce unnecessary costs. To optimize project budgets, engineers frequently deploy hybrid stackups.

In a hybrid configuration, specialized low-loss cores (like Rogers) are used exclusively on the top and bottom layers where critical RF transmission lines reside. The internal layers—which typically carry less demanding DC power lines or low-speed digital control signals—utilize standard, cost-effective FR-4 cores.

This approach provides three distinct advantages:

• Significant Cost Reduction: Minimizes the volume of expensive raw high-frequency material.

• Enhanced Structural Integrity: Woven FR-4 layers offer superior mechanical rigidity compared to pure, soft PTFE.

• Streamlined Multi-layer Registration: Standard prepregs simplify the lamination process at the fab house.

However, hybrid builds require close coordination with the factory. Different materials expand at different rates during thermal lamination, meaning the factory’s engineering team must validate the stackup symmetry to avoid board warpage or inner-layer delamination. Refer to established design guidelines from the IPC Association to ensure stackup tolerances line up with manufacturing realities.

Sourcing Checklist: Settle the Specs Before the Quote

To secure an accurate, production-ready quotation from your fabrication partner and bypass prolonged engineering holds, ensure your procurement file contains the following technical details:

• Complete Gerber/NC Drill Files (preferably in RS-274X or ODB++ format).

• The Intended Working Frequency Range: Tells the engineer if your choice of copper foil matches the skin effect depth.

• Target Controlled Impedance Constraints: Clear documentation indicating which specific traces require a 50 Ohm or 100 Ohm match, including layer references and tolerance constraints (e.g., $\pm5\%$).

• Surface Finish Selection: Highly precise RF boards require exceptionally flat finishes like Electroless Nickel Immersion Gold (ENIG) or Immersion Silver to minimize insertion loss along trace edges.

• Copper Foil Profiling: Specify if your high-frequency application requires low-profile or reverse-treated copper foil to mitigate trace roughness losses.

By addressing these physical and material parameters during the initial quoting phase, you ensure a smoother transition from prototype validation to volume manufacturing. For additional insight on structural trade-offs in high-frequency hardware, tracking professional design publications like the Microwave Journal can provide valuable field data for your engineering team.
