High Frequency PCB: Materials, Applications and Manufacturing

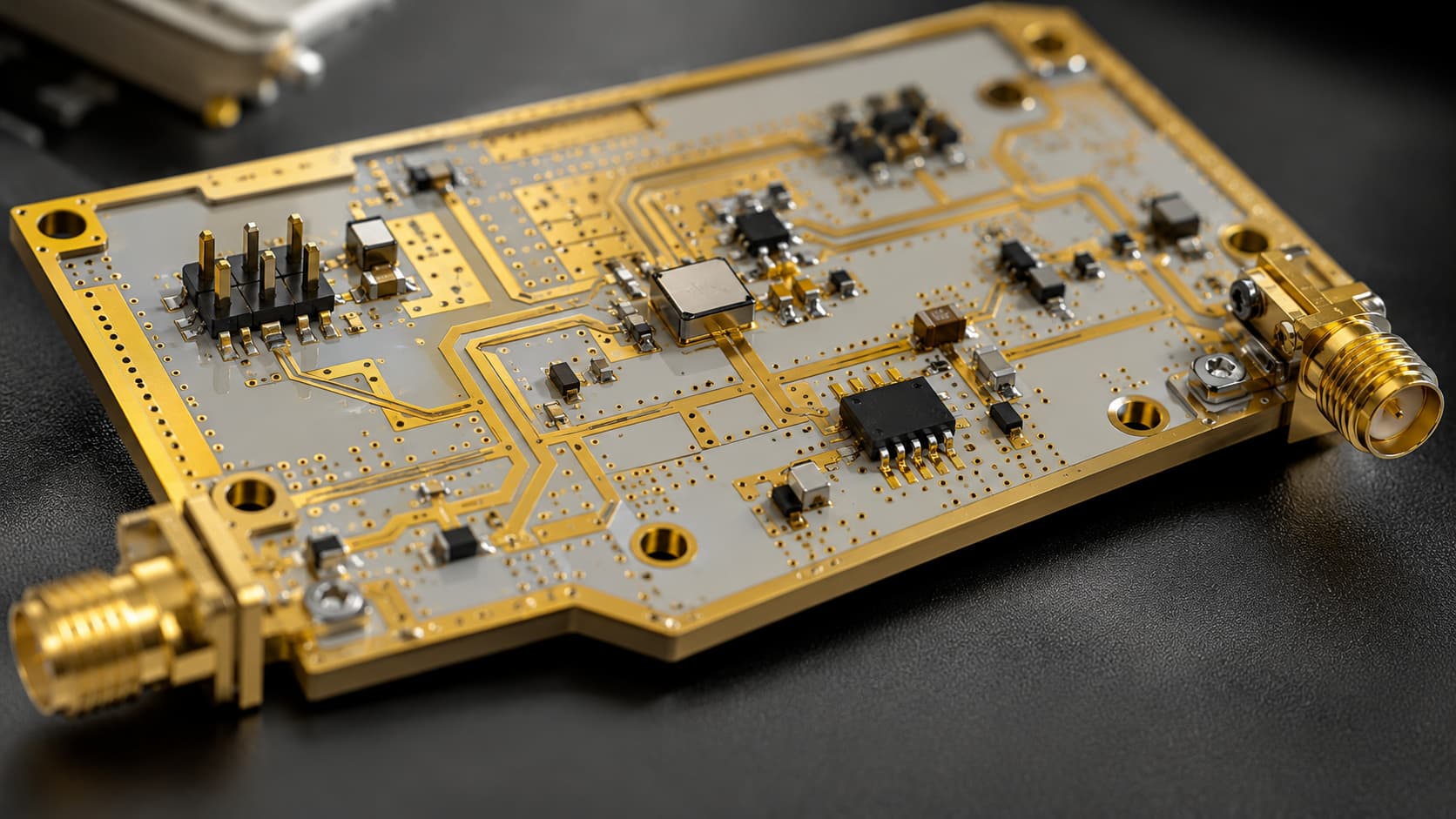

High frequency PCB is a printed circuit board designed to transmit RF and microwave signals with controlled impedance and minimum insertion loss. This guide covers what makes high frequency PCB different from standard FR4, how to select the right material by frequency and application, the main manufacturing requirements, and where high frequency PCB is used — from 5G base station antenna to Ka-band missile seeker.
Table of Contents
A high frequency PCB is any PCB designed to carry RF or microwave signals — typically above 500 MHz — where the electrical behavior of the PCB material itself becomes a performance variable. Below approximately 500 MHz, standard FR4 is adequate for most applications. Above 1 GHz, FR4’s high dissipation factor (Df ~0.020) causes too much signal loss for most RF circuits, and its unstable dielectric constant (Dk) causes impedance to vary with frequency and temperature.
High frequency PCB solves this by using specialized laminate materials — Rogers, PTFE, Taconic, F4B — with low Df, stable Dk, and consistent mechanical properties. These materials allow the factory to manufacture transmission lines with controlled impedance, verified by TDR on every production lot, that maintain predictable RF performance from the first prototype through years of field operation.
As a direct high frequency PCB factory in Shenzhen, China, we produce Rogers, PTFE, Taconic, F4B, and hybrid PCB for radar, satellite communication, electronic warfare, 5G, automotive radar, aerospace, and commercial RF applications. This guide covers everything needed to understand and specify high frequency PCB correctly.
Quick Summary: High Frequency PCB vs Standard FR4
The core difference: Standard FR4 has Df ~0.020 at microwave frequencies — it absorbs approximately 20 times more signal energy per unit length than Rogers RO4350B (Df 0.0037). At 10 GHz over 6 inches of trace, FR4 adds approximately 12 dB of insertion loss. Rogers RO4350B adds approximately 2 dB. Rogers RO3003 (PTFE, Df 0.0010) adds approximately 0.6 dB. For a receiver system, every dB of insertion loss before the LNA adds directly to the system noise figure. For a transmitter, every dB of loss means less power reaches the antenna. High frequency PCB materials exist to keep this loss within the system link budget.
What Makes a PCB ‘High Frequency’
The Two Key Material Properties
Two material properties determine whether a PCB laminate is suitable for high frequency use:
- Dielectric constant (Dk): determines how fast signals travel and how wide 50Ω traces must be. Lower Dk = faster signal velocity, wider traces, easier manufacturing. Higher Dk = smaller circuit elements — useful for compact antenna design. Dk must be stable over frequency, temperature, and humidity.
- Dissipation factor (Df): determines how much signal energy is absorbed by the dielectric as heat. Lower Df = less insertion loss. FR4 Df ~0.020 is acceptable below 500 MHz. Rogers RO4350B Df 0.0037 is the standard for most RF applications. Rogers RO3003 Df 0.0010 is used where minimum loss is critical (Ka-band, EW).
Both properties must be stable — a material with good Dk and Df at room temperature but significant variation with temperature or moisture is not suitable for high frequency PCB in real operating environments.
Controlled Impedance
High frequency PCB is always controlled impedance PCB. The transmission line impedance — determined by trace width, copper thickness, dielectric height, and Dk — must match the source and load impedance (typically 50Ω for single-ended RF) or signal reflections will degrade performance.
- Standard tolerance: ±10% — a 50Ω trace acceptable between 45Ω and 55Ω
- Advanced tolerance: ±8% — for designs with tighter link budget
- Verification: TDR measurement on a coupon on every production panel
- Calculation: uses confirmed production Dk from the material certificate, not nominal values
For detailed controlled impedance guidance, see Controlled Impedance PCB: Design, Calculation and TDR Verification

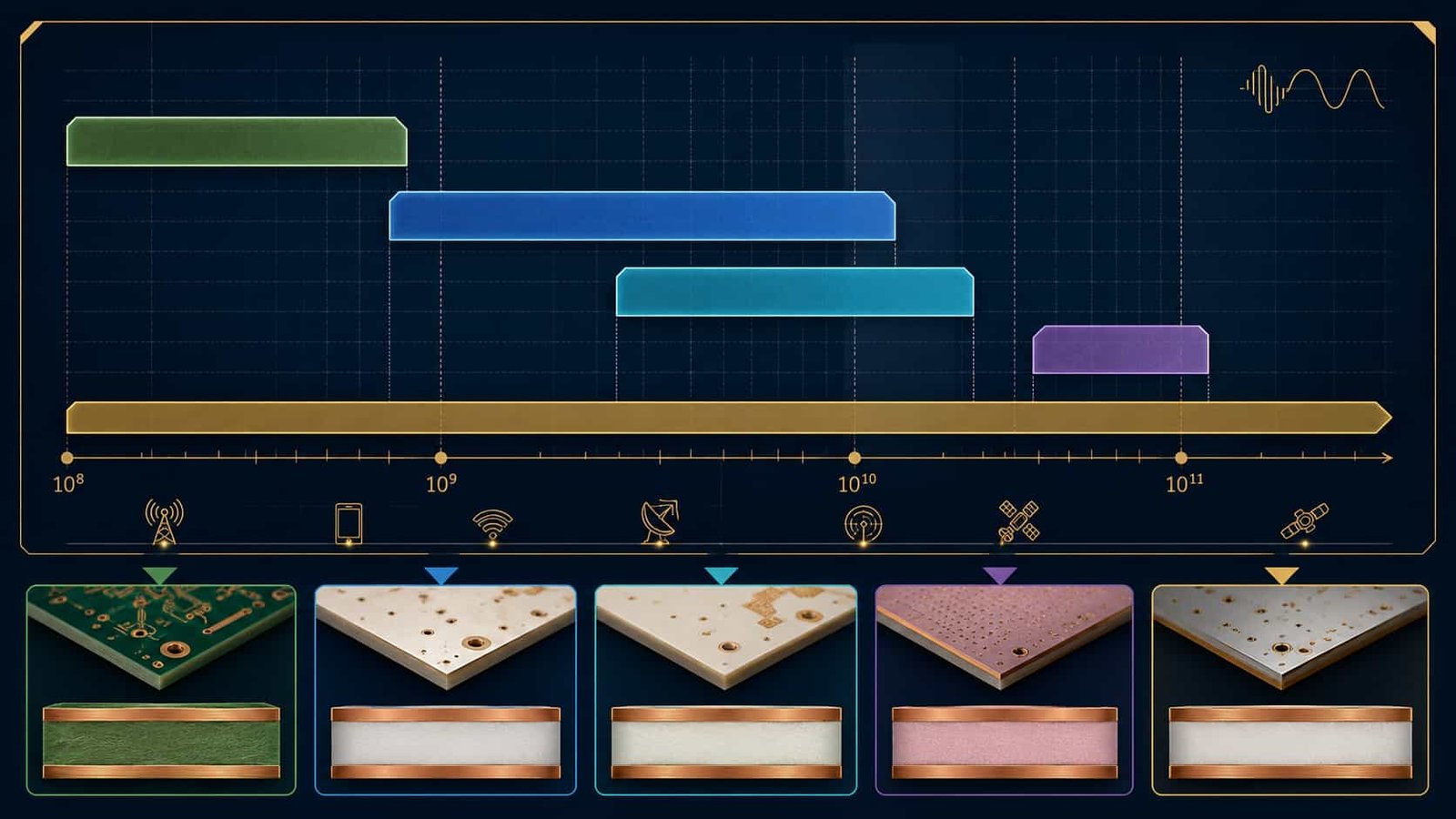

High Frequency PCB Materials: Selection by Frequency
| Material | Dk | Df (10 GHz) | Frequency Range | Process | Typical Applications |
|---|---|---|---|---|---|
| Rogers Hydrocarbon — FR4-Compatible Process, Max 3 Press Cycles | |||||
| Rogers RO4350B | 3.48 ±0.05 | 0.0037 | 500 MHz – 12 GHz | FR4-compatible | 5G sub-6GHz, VSAT, S/X-band radar, 24GHz automotive |
| Rogers RO4003C | 3.38 ±0.05 | 0.0027 | 8 – 18 GHz | FR4-compatible | X-band fire control, Ku-band VSAT, high-power PA |
| Rogers PTFE — Plasma Activation Required, Max 2 Press Cycles | |||||
| Rogers RO3003 | 3.00 ±0.04 | 0.0010 | Ka-band, 77 GHz | PTFE — plasma | Missile seeker, AESA, 77GHz radar, Ka-band SATCOM |
| Rogers RO3003G2 | 3.00 ±0.03 | 0.0010 | 77 GHz production | PTFE — plasma | High-volume 77GHz automotive radar |
| Rogers RT5880 | 2.20 ±0.02 | 0.0009 | 2–110 GHz | PTFE — plasma | EW 2–18GHz, SIGINT, W-band 75–110GHz |
| Rogers RT5870 | 2.33 ±0.02 | 0.0012 | 2–18 GHz | PTFE — plasma | Wideband EW, alternative to RT5880 |
| Rogers RO3006 | 6.15 ±0.15 | 0.0020 | S–X band compact | PTFE — plasma | Compact antenna, bandpass filter |
| Rogers RO6010 | 10.2 ±0.30 | 0.0023 | S–C band miniature | PTFE — plasma | Maximum miniaturization patch antenna, filter |
| Taconic (AGC) PTFE — Same Process as Rogers PTFE | |||||
| Taconic TLY-5 / TLP-5 | 2.17–2.22 | 0.0009 | 2–110 GHz | PTFE — plasma | EW, W-band — Rogers RT5880 alternative |
| Taconic RF-35 | 3.5 | 0.0018 | 1–15 GHz | PTFE — plasma | Commercial RF, lower Df than RO4350B |
| Taconic CER-10 | 10.0 | 0.0035 | Compact circuits | PTFE — plasma | High Dk compact antenna |
| F4B and ZY — Cost-Effective PTFE for Commercial RF | |||||
| F4BM220 | 2.20 ±0.04 | 0.0010 | 1–40 GHz | PTFE — plasma | Commercial RF, 24GHz industrial radar |
| ZYF220D | 2.20 ±0.02 | 0.0009 | 1–40 GHz | PTFE — plasma | Commercial RF alternative to Rogers |
| Standard FR4 — Sub-GHz Only for RF Applications | |||||
| High-Tg FR4 | 4.0–4.5 | ~0.020 | Below 500 MHz | Standard | Sub-GHz sensors, low-frequency control |
Rogers RO4350B — The Standard for Most RF Applications (1–12 GHz)
Rogers RO4350B (Dk 3.48, Df 0.0037, Tg >280°C) is the most widely used high frequency PCB material globally. It is a hydrocarbon ceramic material that processes on standard FR4-compatible equipment — no plasma activation, no special bonding film beyond Rogers RO4450F. This combination of adequate RF performance and FR4-compatible manufacturing makes it the default material for most RF PCB designs from L-band through X-band.
- Frequency range: 500 MHz to 12 GHz standard, adequate to 15 GHz for many designs
- Applications: 5G sub-6 GHz, VSAT, S-band surveillance radar, X-band airborne radar, 24 GHz automotive radar, WiFi, wireless infrastructure
- Process: FR4-compatible — no plasma activation, Rogers RO4450F bonding film for hybrids
- Maximum lamination cycles: 3
Full guide: Rogers RO4350B PCB
Rogers RO4003C — X-Band to Ku-Band (8–18 GHz)
Rogers RO4003C (Dk 3.38, Df 0.0027) has 27% lower Df than RO4350B with identical FR4-compatible manufacturing process. It is the correct upgrade when RO4350B’s insertion loss at X-band or Ku-band marginally exceeds the system link budget.
- Frequency range: X-band to Ku-band — most useful above 8 GHz
- Applications: X-band fire control radar with long feed networks, Ku-band VSAT ground terminal
- Cost: approximately 20–35% more than RO4350B
Full guide: Rogers RO4003C PCB
Rogers RO3003 — Ka-Band and 77 GHz (PTFE)
Rogers RO3003 (Dk 3.0, Df 0.0010) is the standard material for Ka-band (26.5–40 GHz) and 77 GHz automotive radar. It is a PTFE ceramic material requiring plasma hole wall activation before copper plating — a completely different manufacturing process from RO4350B.
- Frequency range: Ka-band (26.5–40 GHz), 77 GHz
- Applications: missile seeker, Ka-band AESA radar, 77 GHz automotive ADAS, Ka-band SATCOM
- Process: PTFE — plasma activation mandatory, Rogers 2929 bondply, 2-cycle maximum
Full guide: Rogers RO3003 PCB
Rogers RT5880 — Wideband EW and W-Band (PTFE)
Rogers RT5880 (Dk 2.20, Df 0.0009) has the lowest Df of any standard Rogers material and Dk that varies less than 2% from 1 GHz to 110 GHz. It is the standard material for wideband EW systems covering 2–18 GHz and the only viable material for W-band (75–110 GHz).
- Frequency range: 2–110 GHz — wideband EW and W-band
- Applications: airborne EW receivers, SIGINT, W-band sensing
- Process: PTFE — plasma activation, Rogers 2929 bondply, 2-cycle maximum
Full guide: Rogers RT5880 PCB
Taconic Materials — PTFE Alternative to Rogers
Taconic (now AGC) produces PTFE laminates including TLY-5 (Dk 2.22, Df 0.0009), TLP-5 (Dk 2.20, Df 0.0009), RF-35 (Dk 3.5, Df 0.0018), and CER-10 (Dk 10.0, Df 0.0035). Same PTFE manufacturing requirements as Rogers PTFE materials.
- TLY-5 / TLP-5: equivalent to Rogers RT5880 — EW, wideband applications
- RF-35: Dk 3.5, moderate Df — commercial RF alternative to RO4350B
Full guide: Taconic PCB Materials
F4B — Cost-Effective PTFE for Commercial RF
F4B (Wangling) PTFE materials — including F4BM220 (Dk 2.20, Df 0.0010) — provide comparable RF performance to Rogers at lower cost for commercial applications where Rogers-certified documentation is not required.
Full guide: F4B PCB Materials
ZY (中英) Materials — Chinese PTFE Alternative
- ZYF220D (Dk 2.20, Df 0.0009), ZYF265D (Dk 2.65), ZYF300CA-P (Dk 3.00), ZYF350CA (Dk 3.50)
- Cost-effective alternative to Rogers for commercial Chinese market
Full guide: ZY High Frequency PCB Materials
High Frequency PCB Applications
Radar Systems
- S-band surveillance radar (2–4 GHz): Rogers RO4350B — standard material
- X-band fire control radar (8–12 GHz): Rogers RO4350B or RO4003C
- Ka-band radar (26.5–40 GHz): Rogers RO3003 — PTFE required
- 77 GHz automotive radar: Rogers RO3003 or RO3003G2
See: High Frequency PCB for Radar Systems | High Frequency PCB for Automotive Radar
Satellite Communication
- C-band VSAT (4–8 GHz): Rogers RO4350B
- Ku-band VSAT (10.7–14.5 GHz): Rogers RO4003C or RO3003
- Ka-band SATCOM (26.5–40 GHz): Rogers RO3003
See: High Frequency PCB for Satellite Communication
Electronic Warfare and Defense
- EW receivers 2–18 GHz: Rogers RT5880 or Arlon AD250C
- SIGINT collection: Rogers RT5880
- Missile guidance Ka-band: Rogers RO3003, IPC Class 3
- AESA phased array: Rogers RO3003 or RO4350B depending on frequency
See: Rogers PCB for Electronic Warfare | Missile Guidance PCB
5G Communication
- 5G sub-6 GHz massive MIMO: Rogers RO4350B — large panel up to 480×800mm
- 5G mmWave 28/39 GHz: Rogers RO3003, plasma activation required
See: High Frequency PCB for 5G Communication
Aerospace and Avionics
- Airborne communication: Rogers RO4350B, IPC Class 3
- Avionics RF subsystem: Rogers RO4350B or RO4003C
- Wide temperature range: -55°C to +125°C aerospace — Rogers RO3003 for Ka-band
See: High Frequency PCB for Aerospace and Defense | Avionics PCB
Other Applications
Medical Device RF PCB | Industrial IoT PCB | UAV and Unmanned Systems | Naval Shipborne PCB | RF PCB for Wireless Communication Modules

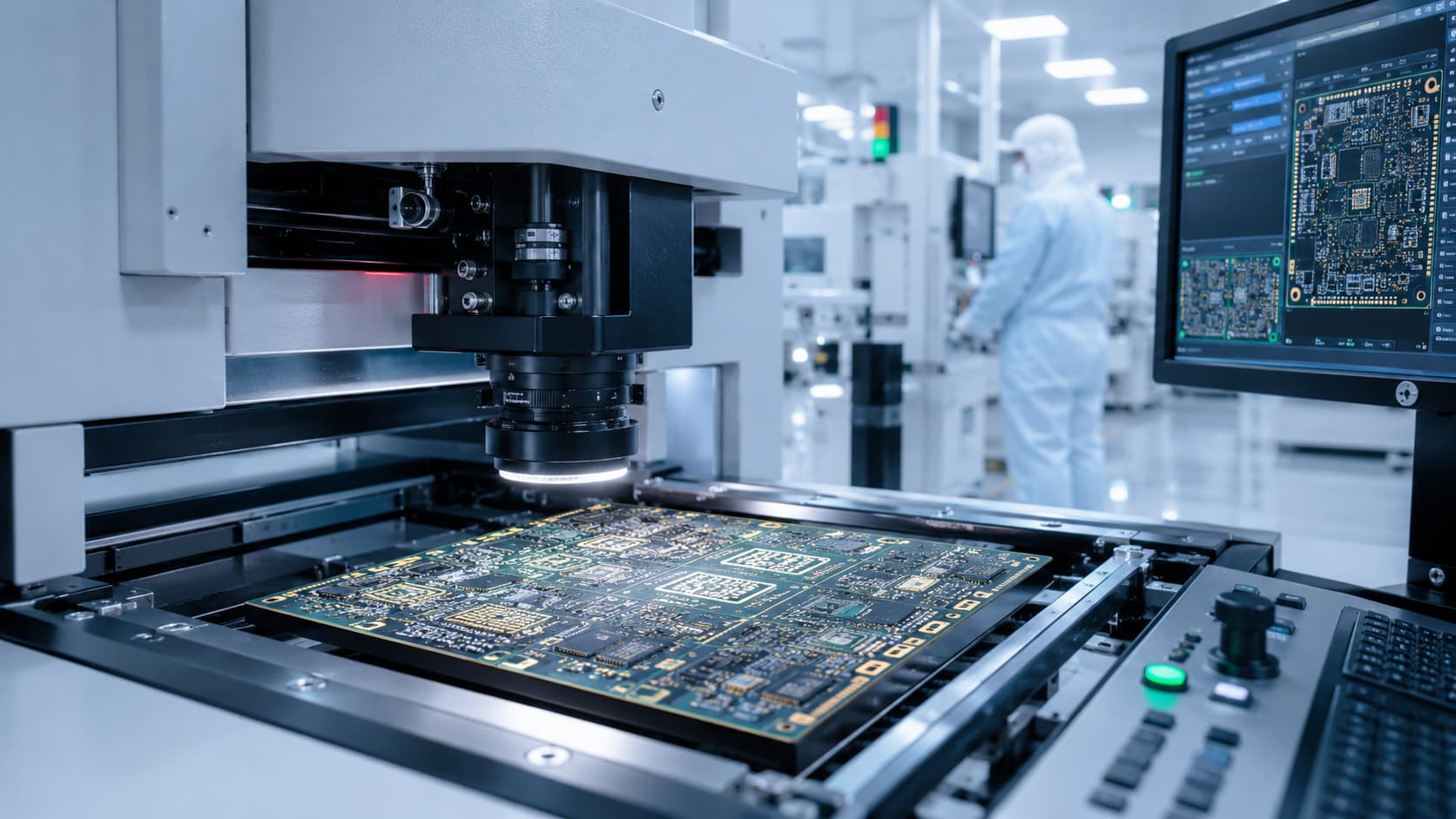

High Frequency PCB Manufacturing: Key Requirements
PTFE Hole Wall Activation
Rogers RO3003, RT5880, Taconic, F4B, and all PTFE-based high frequency materials require plasma or sodium naphthalene hole wall activation before copper plating. Without this step, copper deposits on the PTFE hole wall with no adhesion, passes initial testing, and fails under thermal cycling. This is the single most critical manufacturing step that separates genuine PTFE capability from claimed capability.
How to verify: Ask any high frequency PCB supplier: ‘What hole wall activation method do you use for Rogers RO3003?’ A factory that processes PTFE answers immediately — plasma or sodium naphthalene. A factory that cannot process PTFE gives a vague answer.
Full guide: PTFE PCB Manufacturing Challenges

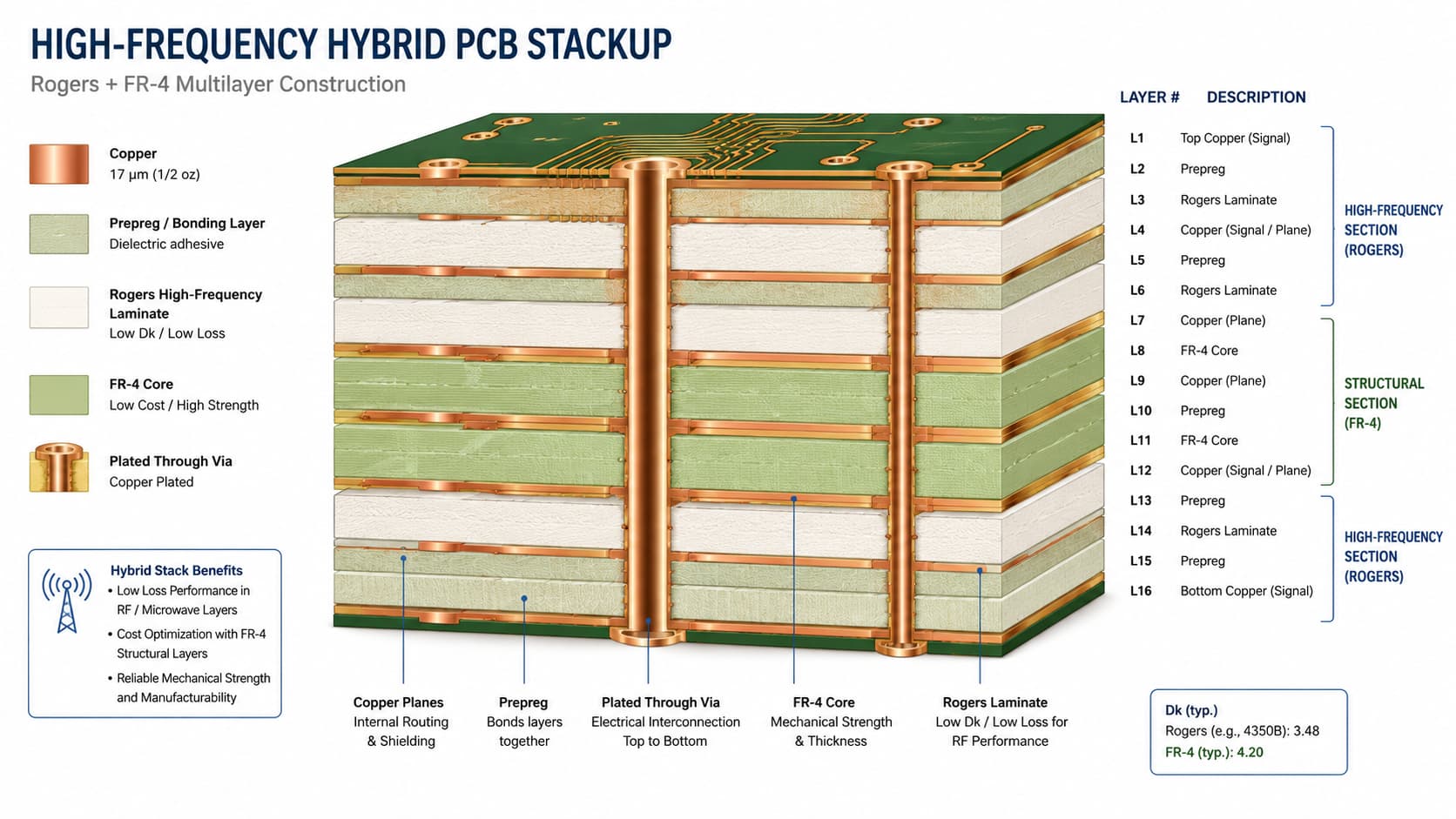

Stackup Design and Bonding Film
- Rogers RO4350B hybrids: Rogers RO4450F bondply — NOT standard FR4 prepreg
- Rogers PTFE hybrids (RO3003, RT5880): Rogers 2929 bondply — NOT RO4450F
- Maximum lamination cycles: 3 for Rogers hydrocarbon, 2 for all PTFE materials
Full guide: RF PCB Stackup Design
Via Design
- Via stub resonance: back drilling required above 15 GHz, blind via above 26.5 GHz
- Via fence: ground via array for signal isolation — max pitch λ/10 at operating frequency
- Aspect ratio: 10:1 standard, 14:1 advanced
Full guide: Via Design for RF and High Frequency PCB
Surface Finish
- ENIG (standard): nickel 120–300 µin, gold 1–5 µin — most common for high frequency PCB
- ENEPIG: for wire bonding and IPC Class 3 aerospace/defense
- Immersion Silver: preferred above 10 GHz for lowest surface roughness
Full guide: ENIG, ENEPIG and Immersion Silver for RF PCB

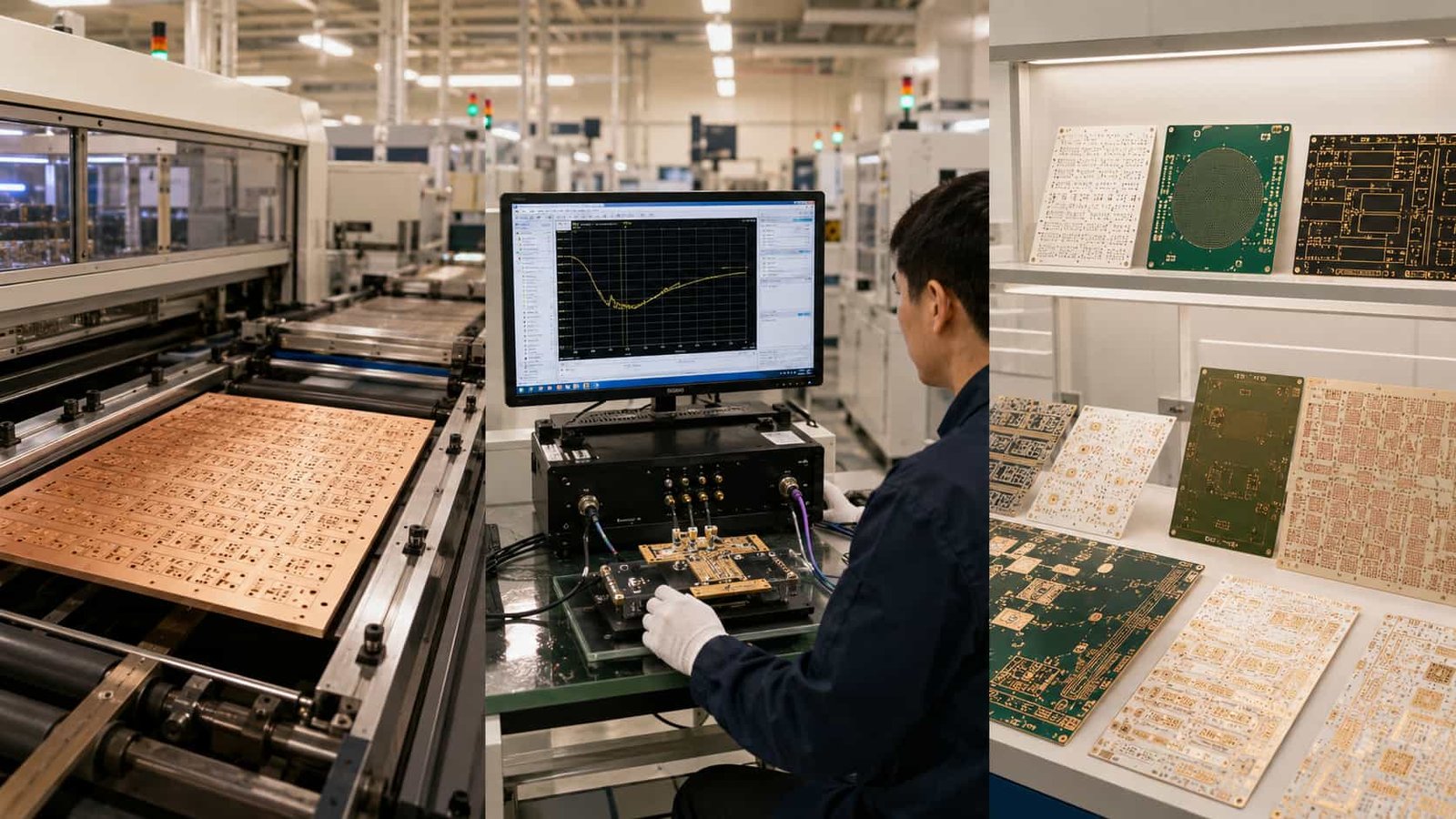

Riching PCB: Direct High Frequency PCB Factory
Riching PCB is a direct high frequency PCB manufacturer in Shenzhen, China. We hold Rogers RO4350B, RO4003C, RO3003, RT5880, RO6010, Taconic, F4B, ZY, and Arlon materials in or available for production. Our factory capabilities include:
- PTFE plasma activation: in-house — standard for all PTFE material orders
- Controlled impedance: ±10% standard, ±8% advanced — TDR verified every production lot
- Layer count: 2–32 layers standard, up to 50 layers advanced
- Minimum drill: 0.1mm advanced, 0.2mm standard
- Aspect ratio: 14:1 advanced, 10:1 standard
- IPC Class 3: available for aerospace and defense programs
- No minimum order quantity: prototype from 1 board
- Prototype lead time: 5–7 working days for Rogers RO4350B, 7–10 days for PTFE
- Contact: WhatsApp +86 13760473650 | richingpcb.com
Full factory capability: China High Frequency PCB Manufacturer: Direct Factory
High Frequency PCB Quick Reference
| Frequency / Application | Recommended Material | Key Reason | Process Note |
|---|---|---|---|
| Below 500 MHz | High-Tg FR4 | FR4 adequate at low frequency | Standard FR4 process |
| 500 MHz – 6 GHz (5G, WiFi, VSAT) | Rogers RO4350B | Low Df, FR4-compatible | FR4 process, RO4450F bondply |
| 8–18 GHz (X-band / Ku-band) | Rogers RO4003C | 27% lower Df than RO4350B | FR4 process, same as RO4350B |
| 24 GHz automotive radar | Rogers RO4350B 0.508mm | Adequate at 24GHz for most designs | FR4 process |
| Ka-band 26.5–40 GHz | Rogers RO3003 0.254mm | Df 0.0010, Dk +13ppm/°C stability | PTFE plasma activation required |
| 77 GHz (automotive/defense) | Rogers RO3003 / RO3003G2 | Only viable material at 77GHz | PTFE plasma activation required |
| Wideband EW 2–18 GHz | Rogers RT5880 0.508mm | Dk stable <2% variation 1–110GHz | PTFE plasma activation required |
| W-band 75–110 GHz | Rogers RT5880 | Only viable standard material | PTFE plasma activation required |
| Compact antenna (size-limited) | Rogers RO6010 (Dk 10.2) | 41% element size reduction vs RO4350B | PTFE plasma activation required |
| Commercial RF (no Rogers cert needed) | F4BM220 or Taconic RF-35 | Cost saving vs Rogers | PTFE plasma activation required |
| Defense EW (Arlon specified) | Arlon AD250C / CLTE-XT | Program-specified material | PTFE plasma activation required |
Conclusion
High frequency PCB is any PCB designed for RF and microwave signals where the laminate material’s Dk and Df directly affect circuit performance. The correct material depends on operating frequency: Rogers RO4350B for most applications from 500 MHz to 12 GHz; Rogers RO4003C for X-band and Ku-band where lower Df is needed; Rogers RO3003 for Ka-band and 77 GHz; Rogers RT5880 for wideband EW (2–18 GHz) and W-band (75–110 GHz). All PTFE materials require plasma activation — this is the manufacturing step that separates a genuine high frequency PCB factory from one that can only process Rogers RO4350B.
As a direct factory with the full range of high frequency materials and plasma activation in-house, we review every high frequency PCB order with our engineering team before production — confirming material selection, impedance calculation using confirmed lot Dk, bonding film, and via design — before your boards are built. Contact us via WhatsApp +86 13760473650 or visit richingpcb.com to submit your files for DFM review.
FAQ
Can you build a multilayer PCB that combines both Rogers and standard FR-4?
Yes. These are known as "Hybrid Stackups." To optimize project budgets, designers often place high-frequency Rogers laminates only on the outer layers where critical RF signals travel, while using cost-effective FR-4 for the internal power and ground planes. This strategy balances structural strength, thermal performance, and material costs.
Why is moisture absorption such a critical factor for high-frequency board performance?
Water has a very high dielectric constant (Dk ≈ 70). If a substrate absorbs even a fraction of a percent of environmental humidity, its local Dk will shift unpredictably. This alters the track impedance, leads to phase mismatch, and increases signal attenuation. High-performance Rogers materials typically limit moisture absorption to less than 0.02%.
What is the "Skin Effect" and why does it matter for HF PCB routing?
As signal frequency rises, the electrical current stops flowing through the center of a copper trace and crowds toward the outer surface. Because the signal travels exclusively along this thin outer "skin," any roughness on the copper foil or surface finish will increase resistance and cause signal loss.
Is PTFE material more difficult to manufacture than standard hydrocarbon ceramics?
Yes. Pure PTFE is physically soft and prone to shifting or stretching during mechanical drilling. It requires specialized drilling speeds, precise chemical plasma treatment to ensure copper adhesion inside through-holes, and rigorous thermal profiling during the lamination process.
What is the typical impedance tolerance for a high-frequency PCB?
While standard electronics allow for a broad variance of ±10%, high-frequency microwave and RF designs usually demand a tighter tolerance of ±5% to prevent signal reflections and minimize return loss at critical entry interfaces.
