RF Power Amplifier PCB: Manufacturing Requirements and Production Review

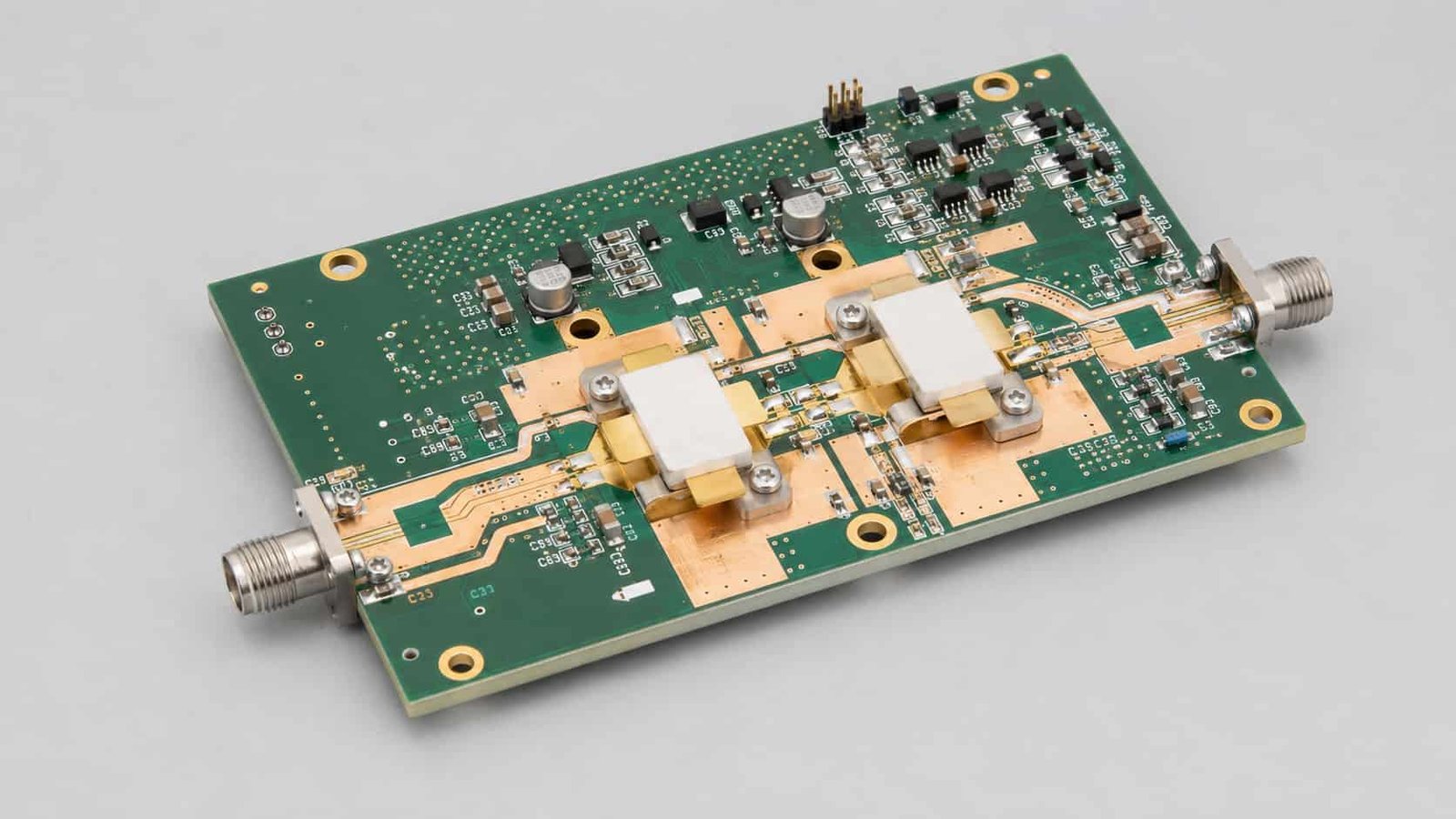

RF power amplifier PCB is more demanding than many general RF boards because it must support both high-frequency signal behavior and power-related stress. The board may require controlled impedance, low-loss signal paths, stable grounding, reliable RF connectors, thermal vias, wider copper areas, and strong plated through-holes.

For a small RF module, the main concern may be signal routing and shielding. For an RF power amplifier board, heat, copper thickness, component mounting, connector strength, and repeatable production become equally important.

The manufacturing review should not begin after the prototype fails testing. It should start before quotation, when the buyer provides Gerber files, stackup, working frequency, power level, material preference, copper thickness, impedance requirements, and connector details.

Quick Summary

• RF power amplifier PCBsare used in communication systems, industrial RF equipment, wireless infrastructure, RF test systems, microwave modules, and signal amplification products.
• These boards often require controlled impedance, stable high-frequency materials, thermal vias, reliable grounding, thicker copper areas, strong RF connector launch design, and careful assembly review.
• The main production risks include impedance deviation, heat concentration, weak plated through-holes, connector mismatch, copper thickness variation, material substitution, and prototype-to-batch inconsistency.
• Before quotation, buyers should provide Gerber files, drill files, stackup, material requirement, working frequency, power level, impedance details, copper thickness, surface finish, connector type, quantity, and application background.

Where RF Power Amplifier PCBs Are Used

RF power amplifier PCBs appear in products where a signal must be amplified before transmission or testing.

Common applications include:

• Wireless communication equipment
• Base station RF modules
• Industrial RF systems
• RF test platforms
• Microwave communication modules
• Power amplifier evaluation boards
• Antenna transmission systems
• Radar-related signal boards
• Laboratory RF equipment
• 5G and wireless infrastructure

The board may carry both sensitive RF traces and higher-power components. This combination makes the manufacturing review more complex than a standard signal board.

Material Selection

Material selection should match the working frequency, signal loss target, power level, thermal condition, and cost requirement.

For lower-frequency or less sensitive sections, FR4 hybrid stackups may be acceptable. For RF paths, microwave sections, or lower-loss requirements, Rogers, PTFE, Taconic, F4B, or hybrid materials should be reviewed.

Material review should include:

• Dk and Df values
• Dielectric thickness
• Copper thickness
• Board thickness
• Thermal behavior
• Copper adhesion
• Material availability
• Assembly temperature compatibility
• Batch repeatability

For RF power amplifier PCB, material selection should not focus on signal loss alone. Heat handling, mechanical strength, copper adhesion, and long-term reliability are equally important considerations.

Stackup and Controlled Impedance

Controlled impedance is typically required for RF input paths, output paths, matching networks, connector transitions, and transmission lines.

The stackup should define:

• Layer count
• Material type
• Dielectric thickness
• Copper thickness
• RF signal layer
• Ground reference plane
• Power layer
• Final board thickness
• Controlled impedance target and tolerance
• Via structure
• Surface finish

If dielectric thickness or copper thickness changes during manufacturing, impedance may shift. In amplifier circuits, this can affect matching, output stability, gain consistency, and test results.

The manufacturer should calculate impedance based on the real production stackup, not only the original design assumption.

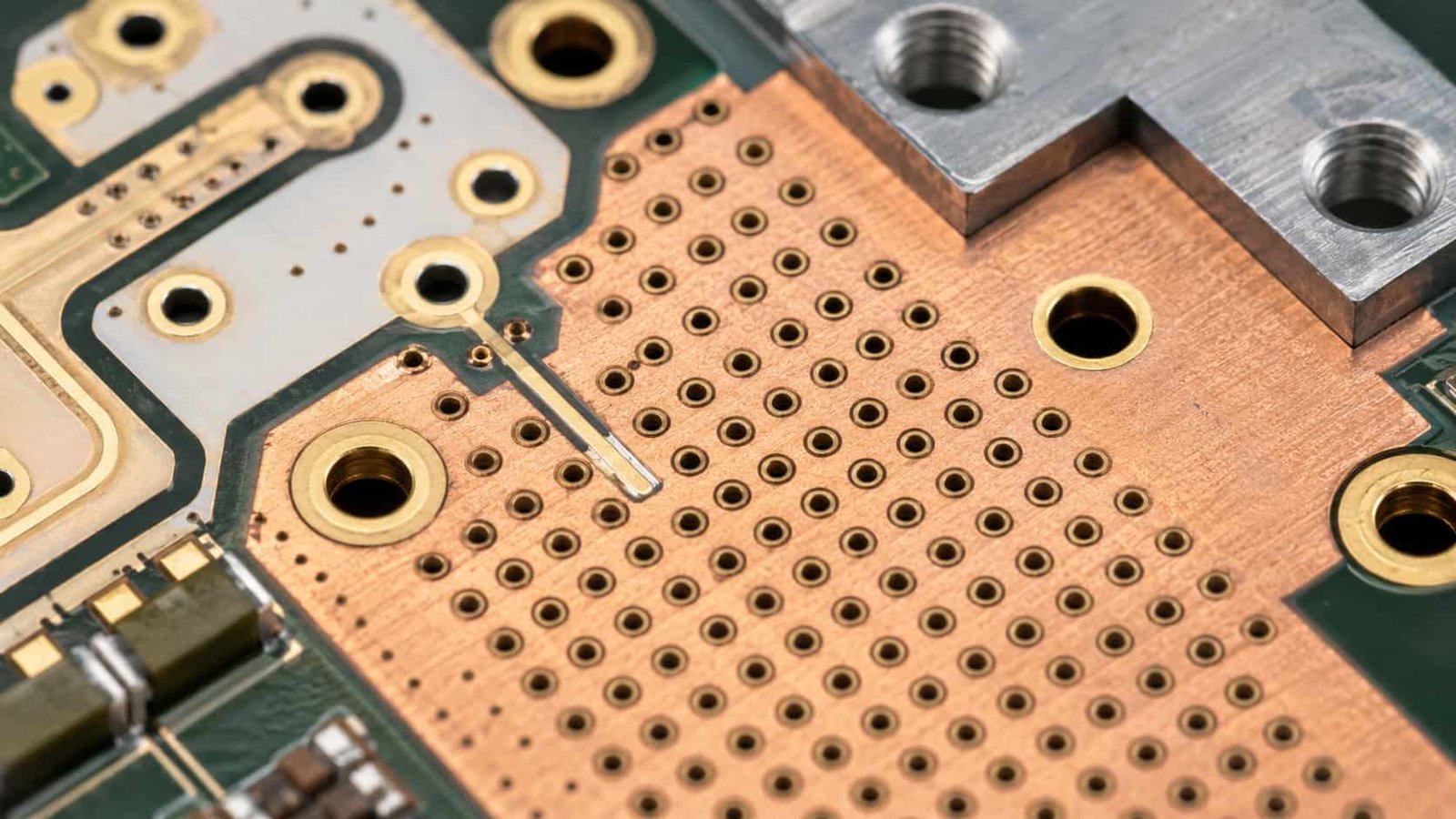

Heat Dissipation and Copper Design

Thermal design is one of the most significant differences between RF power amplifier PCB and lower-power RF boards.

Heat may come from power transistors, RF output stages, bias circuits, or nearby mechanical structures. If heat is not managed properly, the board may experience unstable performance, solder joint stress, copper adhesion issues, or reduced component life.

Thermal review should include:

• Thermal via arrays
• Copper area size
• Copper thickness
• Heat sink mounting area
• Power component pad design
• Ground copper continuity
• Plated through-hole quality
• Material thermal behavior
• Assembly process compatibility

A board with good RF layout can still fail if thermal paths are inadequate. In power amplifier designs, thermal vias and copper balance should be reviewed before production begins.

RF Connector and Output Path Review

RF connector areas are high-risk points because they combine electrical performance requirements with mechanical stress.

A connector launch should be reviewed for:

• Connector footprint accuracy
• Pad-to-trace transition geometry
• Ground via placement
• Reference plane continuity
• Mounting hole accuracy
• Cable stress tolerance
• Surface finish compatibility
• Assembly strength
• Copper clearance

The RF output side may be more sensitive due to higher signal level and power handling requirements. Poor grounding, weak connector pads, or uncontrolled transition geometry can create impedance mismatch, localized heating, or unstable test results.

Grounding and Via Design

Grounding is essential for RF power amplifier PCB performance and reliability.

A solid ground reference supports impedance control, return current management, shielding, heat spreading, and stable RF behavior. Ground vias and via fences are commonly used around RF paths, connectors, and power components.

The review should include:

• Ground via spacing
• Via fence design
• Signal via size
• Thermal via reliability
• Via stub length
• Anti-pad clearance
• Connector grounding vias
• Plated through-hole quality

For higher-power RF boards, via quality is not only an electrical concern. It also affects heat transfer and long-term reliability.

Surface Finish and Assembly

Surface finish should be selected to match solderability requirements, connector areas, power component pads, storage conditions, and assembly process.

Common options include:

• ENIG
• Immersion silver
• OSP
• Lead-free HASL
• Hard gold for repeated contact areas
• Customer-specified finishes

ENIG is widely used because it provides a flat surface and stable solderability. Hard gold may be required for repeated-contact areas. Immersion silver may be considered for some RF-sensitive applications.

Assembly review is also important. Power components, connectors, heat sinks, and matching network components should be placed and soldered consistently. A small assembly issue in a matching network or connector area can directly affect RF test results.

Prototype-to-Batch Consistency

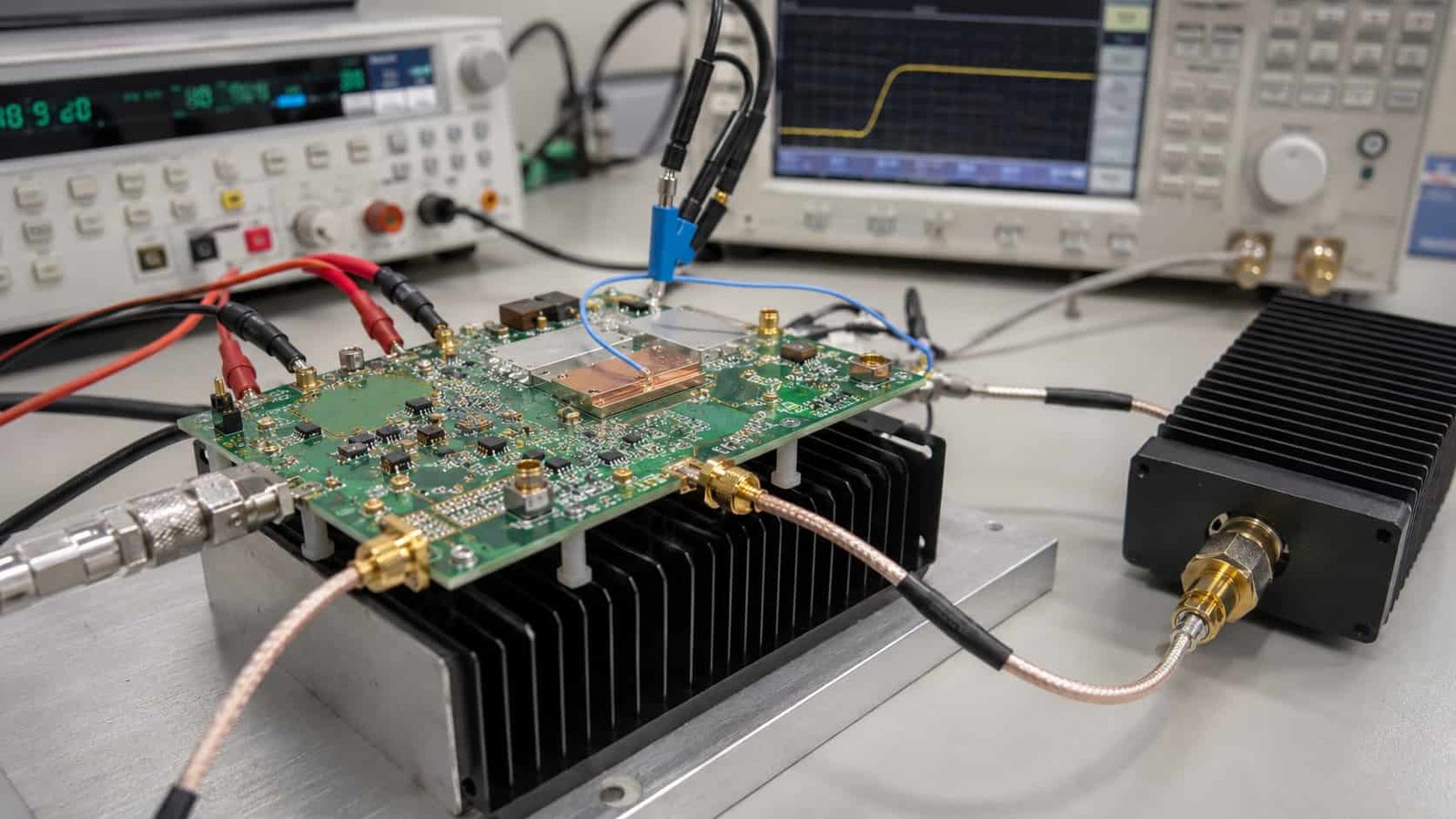

RF power amplifier boards often require repeatable performance across production runs. A prototype that passes testing is not sufficient if the production batch behaves differently.

Batch variation may come from:

• Material substitution
• Stackup revision
• Copper thickness variation
• Different surface finish
• Thermal via process variation
• Connector source change
• Assembly profile change
• Panelization difference
• Missing impedance test requirement

If the board will move to batch production, the approved stackup, material, copper thickness, connector type, and assembly process should all be documented and controlled.

What Buyers Should Provide for Quotation

A complete RF power amplifier PCB quotation request should include:

• Gerber files
• Drill files
• PCB stackup
• Material requirement
• Working frequency
• Power level (if available)
• Controlled impedance table
• Board thickness
• Copper thickness
• Surface finish
• Connector type
• Thermal requirement
• Assembly requirement (if applicable)
• Quantity
• Prototype or batch plan
• Application background

If the material is not yet fixed, working frequency, power level, and application background are especially useful. The manufacturer can then review whether FR4 hybrid, Rogers, PTFE, Taconic, F4B, or a hybrid stackup is more appropriate for the application.

Common Mistakes to Avoid

Common mistakes include:

• Treating RF power amplifier PCBlike a standard RF signal board
• Selecting material based on price alone
• Sending files without a stackup
• Ignoring thermal vias
• Using insufficient copper thickness
• Omitting the controlled impedance table
• Weak connector grounding design
• Changing material after prototype approval
• Overlooking heat sink mounting areas
• Not discussing batch repeatability requirements

These issues may not appear during visual inspection. They typically surface during RF testing, thermal testing, assembly, or repeat production.

Conclusion

RF power amplifier PCB requires careful review of material, stackup, controlled impedance, heat dissipation, copper thickness, vias, grounding, connector areas, surface finish, assembly, and production consistency.

For communication equipment, industrial RF systems, wireless infrastructure, RF testing, and microwave modules, the PCB must handle both signal quality and power-related stress reliably.

The best results come when buyers provide complete files, working frequency, power information, impedance requirements, thermal details, connector specifications, and application background before production begins.

For technical standards reference, see IPC-2141A (Controlled Impedance Circuit Boards), IPC-2221 (Generic Standard on Printed Board Design), and the Rogers MWI-2021 Impedance Calculator for material and impedance reference.
