Sourcing High-Frequency PCB Substrates: A Procurement Guide for RF and Microwave Layouts

RO4003C and RO4350B are both widely used Rogers materials for RF PCB and microwave PCB projects. They are often considered when standard FR4 cannot provide enough signal stability, low-loss performance, or controlled impedance consistency.

For buyers, the decision is not simply “which one is better.” The better question is: which one fits the working frequency, signal loss target, stackup, assembly requirement, and production budget of this specific board?

In many RF and microwave projects, RO4003C is reviewed when lower loss and stable electrical performance are the main concerns. RO4350B is often reviewed when the project needs a widely used high frequency laminate with strong manufacturing familiarity and practical PCB processing behavior. The final choice should come from the design requirement, not from habit.

Quick Summary

• RO4003C and RO4350B are both common Rogers RO4000 series materials used in RF, microwave, antenna, radar, communication, and high frequency PCB projects.

• RO4003C is often considered when lower dielectric loss and stable RF performance are a priority.

• RO4350B is often considered when the project needs a reliable, commonly used RF laminate with good manufacturability and broad application experience.

• Both materials require proper stackup review, controlled impedance calculation, copper thickness confirmation, surface finish selection, and manufacturing feasibility check before production.

• For buyers, the safest approach is to provide Gerber files, drill files, stackup, working frequency, impedance requirement, board thickness, copper thickness, quantity, and application background before choosing the final material.

Where RO4003C and RO4350B Are Commonly Used

Both materials are used in high frequency PCB projects where FR4 may be too lossy or unstable for the design requirement.

Common applications include:

• RF modules

• Microwave circuits

• Antenna PCBs

• Radar electronics

• Wireless communication boards

• 5G communication devices

• Satellite communication circuits

• Test and measurement equipment

• Industrial RF devices

In these applications, the PCB material affects signal behavior. Trace width, dielectric thickness, copper thickness, and ground reference all work together with the laminate. A material change can shift impedance, increase loss, or affect test consistency.

RO4003C: When It Makes Sense

RO4003C is often selected when the design needs good RF performance with relatively practical fabrication behavior.

It is commonly reviewed for:

• RF communication boards

• Microwave signal paths

• Antenna feed structures

• Radar-related circuits

• Low-loss RF transmission lines

• Controlled impedance designs

A buyer may consider RO4003C when the project needs lower loss than many general-purpose materials, but does not require a more specialized PTFE-based structure.

The key point is not just the material name. RO4003C still needs correct stackup planning. If the dielectric thickness, copper thickness, or trace geometry is changed during production, the final impedance may not match the design.

RO4350B: When It Makes Sense

RO4350B is one of the most commonly seen Rogers materials in RF PCB projects. Many engineers and PCB manufacturers are familiar with it, which can make early project communication easier.

It is often reviewed for:

• RF modules

• Antenna boards

• Wireless infrastructure

• Microwave communication boards

• Industrial RF equipment

• High frequency multilayer PCB

• Mixed RF and digital boards

RO4350B may be a practical choice when the project needs a high frequency material with broad design and manufacturing experience. It can also be useful when the buyer wants a material that is easier to discuss with different suppliers during prototype and batch production.

That does not mean RO4350B is always the safer choice. If the design has stricter loss requirements, higher-frequency signal paths, or more sensitive antenna performance, the material should be compared carefully with RO4003C or other low-loss options.

Key Difference: Do Not Choose by Name Alone

Many quotation problems happen because the buyer only writes “Rogers material” or “RO4003C / RO4350B acceptable” without explaining the application.

That is not enough for a serious RF PCB review. The manufacturer should know:

• Working frequency

• Target impedance

• Signal loss sensitivity

• Board thickness

• Copper thickness

• Layer count

• Stackup structure

• Surface finish

• Prototype or batch quantity

• Application background

Without this information, a material comparison becomes too shallow. A PCB can be made from the requested laminate and still fail the customer’s RF test if the stackup and impedance were not reviewed correctly.

Signal Loss and Frequency Range

Signal loss is one of the main reasons buyers compare RO4003C and RO4350B.

For lower-frequency or less loss-sensitive RF circuits, both materials may be reviewed. For higher-frequency microwave paths, antenna feed networks, or radar-related signals, loss behavior becomes more visible.

The review should include:

• Material Df

• Copper type

• Trace length

• Signal layer position

• Surface finish

• Via transitions

• Connector launch quality

• Final board thickness

In practice, signal loss is not controlled by laminate choice alone. A good material can still perform poorly if the layout has long RF paths, broken ground reference, poor via transitions, or uncontrolled connector launch areas.

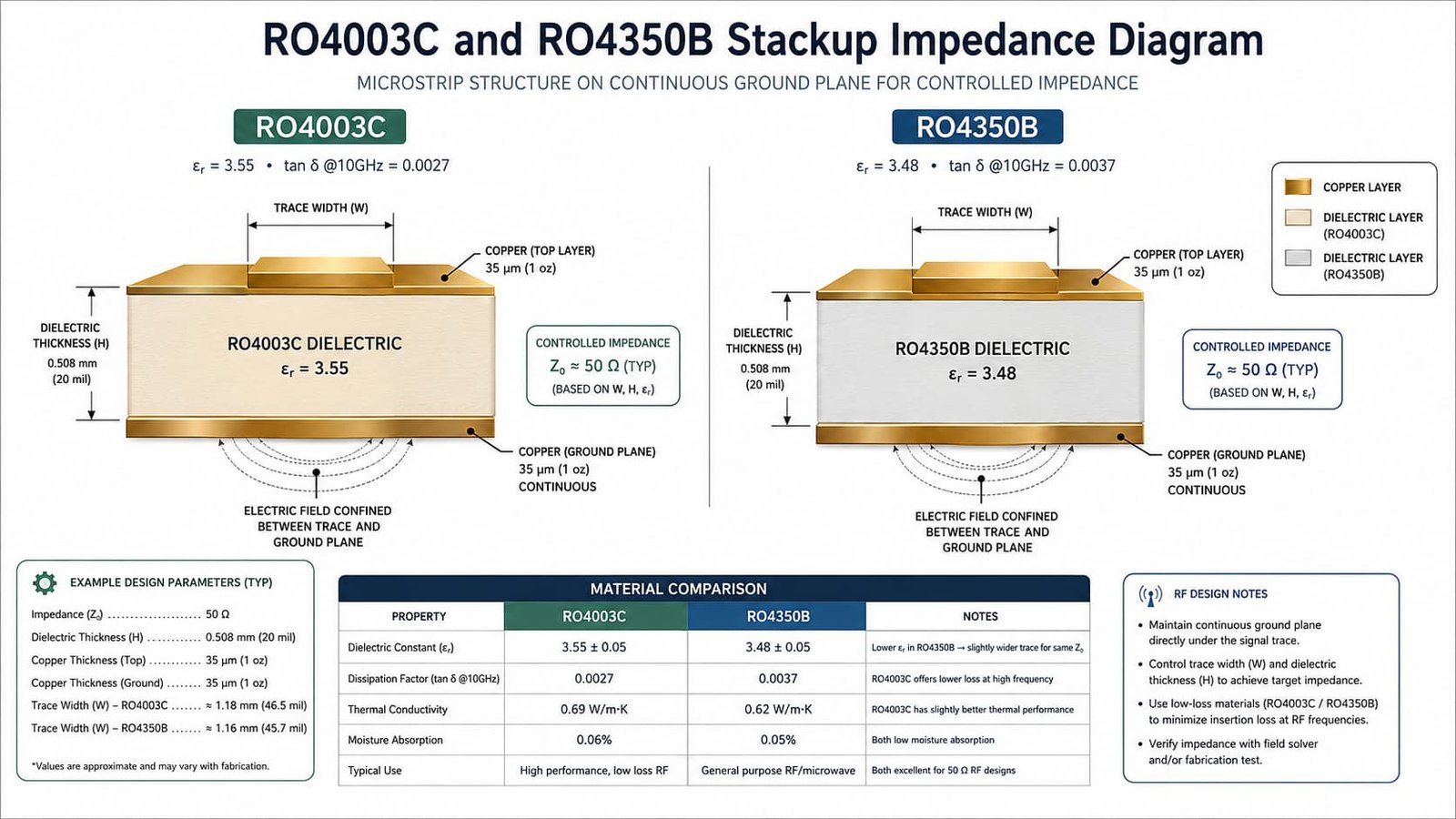

Controlled Impedance Review

Both RO4003C and RO4350B are often used in controlled impedance PCB designs.

The impedance depends on:

• Material Dk

• Dielectric thickness

• Trace width

• Copper thickness

• Ground reference plane

• Solder mask condition

• Etching tolerance

• Final production stackup

The manufacturer should calculate impedance based on the real production stackup, not only the design drawing. If the customer gives only Gerber files without a stackup, the factory may need to rebuild the stackup assumptions before quoting accurately.

For RF boards, this step should happen before fabrication. Once the board is produced, impedance problems are difficult to correct without a new revision.

Manufacturing Review Before Production

RO4003C and RO4350B are both more demanding than standard FR4 when used in RF and microwave projects.

Before production, the manufacturer should review:

• Material availability

• Stackup feasibility

• Drilling requirements

• Plated through-hole reliability

• Copper thickness

• Trace width tolerance

• Surface finish

• Lamination process

• Panel size

• Impedance test requirement

For simple two-layer RF boards, the focus may be material thickness, trace accuracy, and surface finish. For multilayer boards, lamination, registration, ground plane continuity, and plated through-hole reliability become more important.

A material that works well in a simple RF board may need more review in a multilayer hybrid stackup.

RO4003C vs RO4350B for Antenna PCB

Antenna PCBs are sensitive to material Dk, Df, board thickness, copper geometry, and feed line impedance.

If the antenna size, matching, or radiation behavior is tightly controlled, material substitution should not be made casually. Even a small dielectric difference can affect antenna tuning.

For antenna PCB projects, buyers should confirm:

• Operating frequency

• Antenna structure

• Feed line impedance

• Ground plane design

• Board thickness

• Copper pattern tolerance

• Surface finish

• Mechanical environment

RO4003C and RO4350B can both be considered, but the final decision should be made around the antenna design and test requirement.

RO4003C vs RO4350B for Radar and Microwave PCB

Radar and microwave PCB projects usually care more about signal loss, phase behavior, impedance stability, and via transitions.

For these boards, the material comparison should not stop at laminate price. The review should include the full RF path from connector to transmission line, through vias, ground reference, and surface finish.

If the board includes microwave signal processing, radar antenna feed structures, or high-frequency test points, the manufacturer should review whether the selected material and stackup can support the expected performance before production.

Procurement and Cost Review

From a procurement point of view, material choice affects more than unit price.

Buyers should also consider:

• Material availability

• MOQ or panel utilization

• Prototype lead time

• Batch production stability

• Supplier familiarity

• Engineering support

• Risk of future substitution

• Testing requirement

Sometimes a lower material cost can create higher engineering cost if the board fails testing or requires multiple revisions. For RF and microwave PCB, the lowest material price is not always the lowest project cost.

What Buyers Should Send for Quotation

To compare RO4003C and RO4350B properly, buyers should prepare:

• Gerber files

• Drill files

• PCB stackup

• Material preference

• Working frequency

• Board thickness

• Copper thickness

• Surface finish

• Controlled impedance requirement

• Quantity

• Prototype or batch plan

• Application background

If the buyer is not sure which material to choose, the working frequency and application background are especially useful. The manufacturer can then review whether RO4003C, RO4350B, another Rogers material, PTFE, Taconic, F4B, or a hybrid stackup is more reasonable.

Conclusion

RO4003C and RO4350B are both practical Rogers materials for RF and microwave PCB projects, but they should not be selected by name alone.

RO4003C is often reviewed when lower loss and stable RF performance are key concerns. RO4350B is often reviewed when the project needs a widely used high frequency laminate with broad manufacturing experience and practical processing behavior.

For buyers, the right choice depends on working frequency, signal loss target, stackup, controlled impedance, antenna behavior, surface finish, production quantity, and long-term availability. A good material decision should reduce RF risk before production, not create new problems after testing.
