Rogers PCB Prototype in China: Lead Times, Files Required and How to Verify Factory Capability
Everything an RF engineer needs to know before placing a Rogers PCB prototype order in China — lead times by material, required files, DFM process, shipping timeline and 5 questions to verify factory capability.
Table of Contents
Key point: Rogers RO4350B prototype: 5–7 working days. Rogers RO3003 / RT5880 (PTFE): 7–10 working days. Door-to-door including DHL Express: 8–15 working days. No MOQ — from 1 board. Most factories quote 3–4 weeks for RO3003 / RT5880 due to material procurement wait. Riching PCB maintains these materials in stock with in-house plasma activation — no material wait.
Files needed: Gerber zip, NC drill file, stackup drawing with material grade and dielectric thickness, impedance target and tolerance, quantity and IPC Class. DFM review within 4–8 hours of file submission.
Getting a Rogers PCB prototype from China is straightforward for RO4350B — it processes identically to FR4, most capable factories stock it, and lead time is 5–7 working days. For PTFE materials (RO3003, RT5880, RO3006, RO3010), it is more complex: these materials require in-house plasma activation, PTFE-specific drill parameters, and most Chinese factories do not stock them. The result is that many factories quoting 5–7 days for Rogers PTFE are either using the wrong process or planning to outsource the plasma activation — both produce boards that fail in the field.
This guide covers lead times by material, what files to send, the DFM review process, shipping timeline from Shenzhen to your door, and the 5 questions to verify your factory actually has PTFE capability before placing an order.

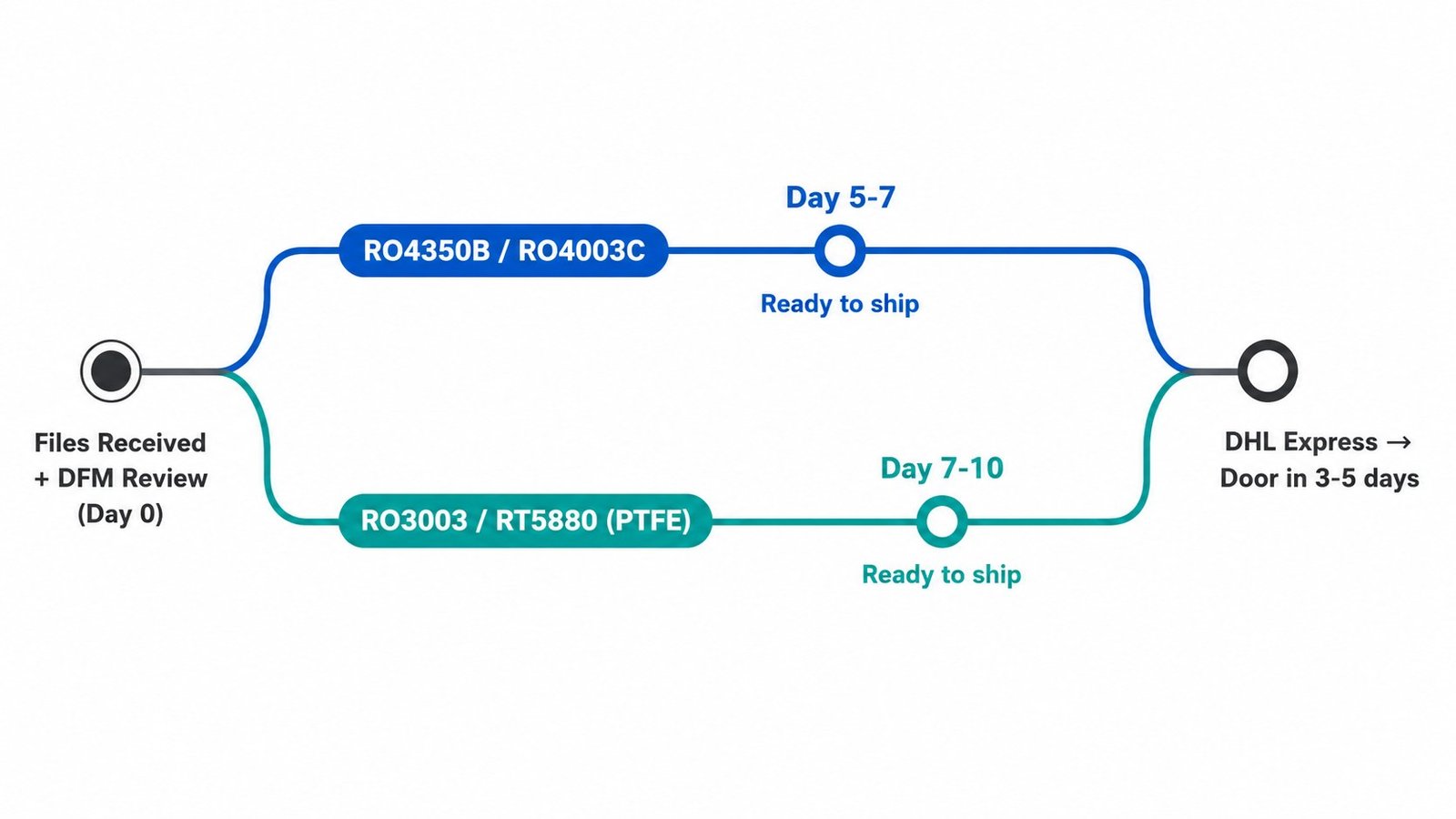

Lead Time by Material
| Material | Prototype Lead Time | In Stock | Notes |
|---|---|---|---|
| Rogers RO4350B | 5–7 working days | ✅ Yes | FR4-compatible — fastest Rogers option |
| Rogers RO4003C | 5–7 working days | ✅ Yes | Same process as RO4350B |
| Rogers RO3003 | 7–10 working days | ✅ Yes — 0.127 & 0.254 mm | PTFE — plasma activation required |
| Rogers RT5880 | 7–10 working days | ✅ Yes — 6 thicknesses | Most factories quote 4–6 weeks — no stock |
| RO3006 / RO3010 | 10–14 working days | ✅ Yes | Military-grade PTFE — rare stock anywhere |
| Taconic TLY-5 / RF-35 | 7–10 working days | ✅ Yes | RT5880 / RO4350B cost-saving equivalent |
| FR4 + Rogers hybrid | 10–14 working days | ✅ Yes | 2-stage lamination adds time |
The single biggest variable in Rogers PCB prototype lead time is whether the material is PTFE or hydrocarbon ceramic. RO4350B and RO4003C are hydrocarbon ceramic — FR4-compatible process, no plasma activation required, 5–7 days. RO3003, RT5880, RO3006, RO3010 are PTFE — plasma activation required, PTFE drill parameters required, 7–10 days. The extra 2–3 days for PTFE is the plasma activation step, which must be performed in-house immediately before copper plating.

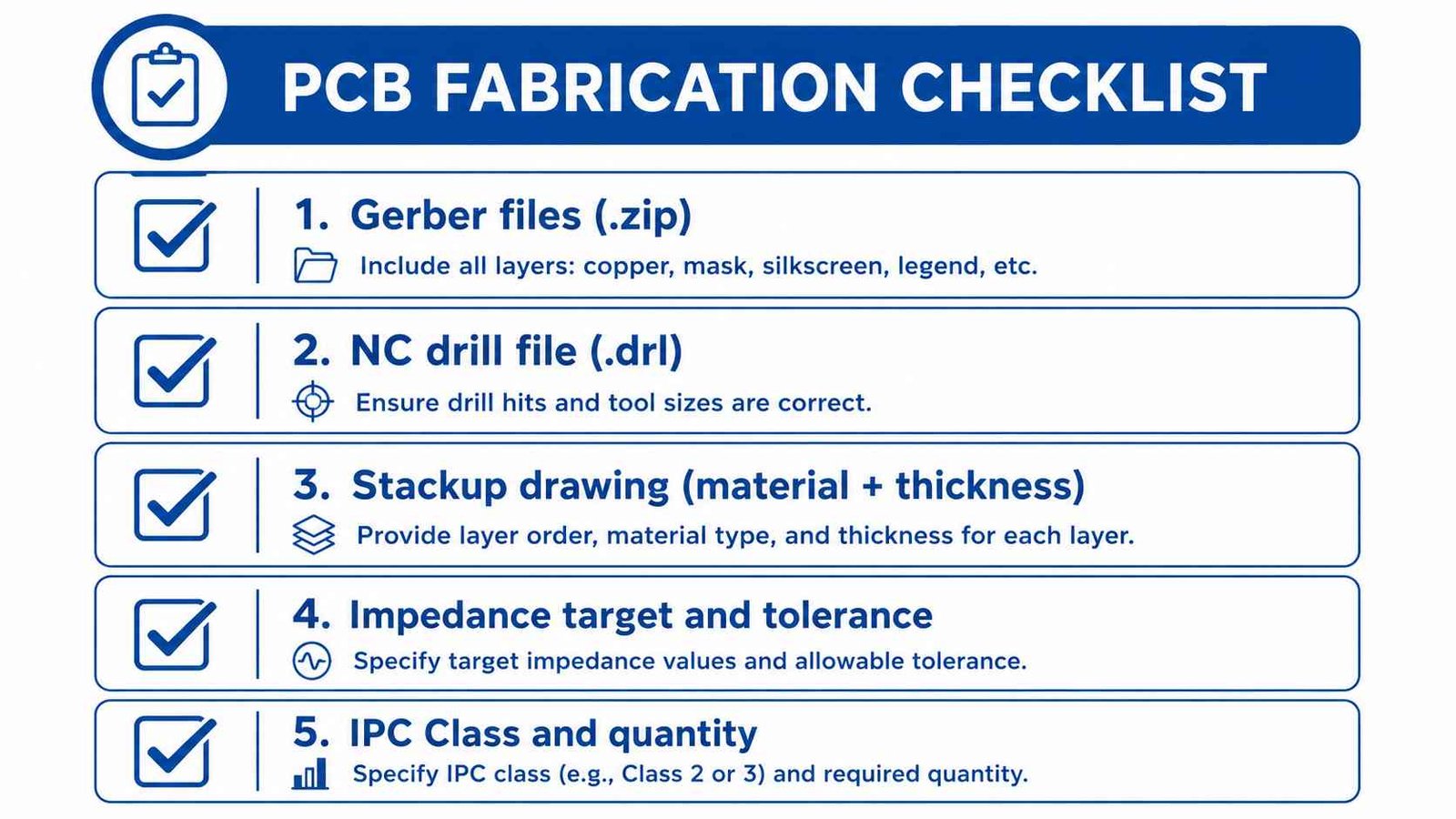

What Files to Send
| File | Format | Notes |
|---|---|---|
| Gerber files | .zip (RS-274X) | All copper layers, silkscreen, soldermask, board outline |
| NC drill file | .drl / .xln | Must match Gerber layer count |
| Stackup drawing | .pdf or inline | Material grade, dielectric thickness, copper weight per layer |
| Impedance requirements | On drawing or in email | Target impedance, tolerance (±10% or ±5%), reference layer |
| IPC Class | In email | Class 2 (commercial) or Class 3 (military/aerospace) |
| Quantity | In email | No MOQ — from 1 board |
The most common reason for DFM delays: missing stackup drawing. Many engineers send Gerber + drill only and leave the material specification in an email. For Rogers PCB, the stackup drawing must specify the material grade, dielectric thickness, and copper weight per layer — not just the total board thickness. A board specified as ‘0.8mm RO4350B’ is ambiguous: is that one 0.508mm core plus prepreg, or a 0.762mm core? Each gives different 50Ω trace widths and different finished board thickness.
The DFM Review Process
Every Rogers PCB order at Riching PCB goes through DFM review before production starts. For a standard prototype, DFM review takes 2–4 hours and checks:
- Minimum trace width and spacing vs copper weight and layer type
- 50Ω trace width vs submitted stackup Dk and dielectric thickness
- Via fence spacing vs operating frequency if specified
- Annular ring vs drill diameter vs layer registration
- Soldermask clearance over RF traces — LSOG confirmed or added
- Drill-to-copper clearance in PTFE layers
If DFM finds issues, you receive a DFM report via WhatsApp or email within 4–8 hours of file submission — before any material is cut or drilling starts. Most DFM issues are resolvable without a full re-spin: trace width adjustment, annular ring compensation, soldermask opening correction.
Shipping Timeline: Shenzhen to Your Door
DHL Express from Shenzhen to major cities:
- USA (East Coast / West Coast): 3–4 working days
- UK / Germany / France: 3–5 working days
- Israel / Middle East: 3–5 working days
- Australia / New Zealand: 4–6 working days
- Canada: 4–5 working days
Total door-to-door from file submission: RO4350B 8–12 working days. RO3003/RT5880 10–15 working days. This is comparable to or faster than most Western fabricators’ manufacturing lead time alone — before shipping.
Total Cost Comparison: China vs Western Fabricator
For a typical 2-layer RO4350B prototype (100×100 mm, 5 boards, ENIG, ±10% impedance):
- Western fabricator (USA/Europe): USD 400–800 + shipping, 10–15 working day lead time
- Riching PCB (China, DHL Express): USD 120–250 + USD 40–60 shipping = USD 160–310 total, 8–12 working days door-to-door
For RO3003/RT5880 PTFE: Western fabricators often add a PTFE process surcharge of 30–50% on top of base Rogers price. Chinese factory with in-house plasma: same price structure as RO4350B with standard PTFE lead time premium only.
5 Questions to Verify Factory Capability Before Ordering
| Question | Good Answer | Red Flag |
|---|---|---|
| RO3003 prototype lead time? | ✅ 7–10 working days | 🚩 5–7 days (no plasma activation) |
| Is plasma activation in-house? | ✅ Yes — our own equipment | 🚩 Outsourced / partner facility |
| Do you stock RO3003 and RT5880? | ✅ Yes — standard inventory | 🚩 We can source in 2–3 weeks |
| TDR on every production lot? | ✅ Yes — report available on request | 🚩 Only on request or not mentioned |
| IPC Class 3 capability? | ✅ Yes — specify on drawing | 🚩 We only do Class 2 |
The fastest single check: ask for RO3003 prototype lead time. 7–10 days = in-house plasma capability. 5–7 days = FR4 process being applied to PTFE, or outsourced plasma. The extra 2–3 days for PTFE is not negotiable — it reflects the plasma activation step within the manufacturing sequence. A factory quoting RO3003 in the same time as RO4350B is not doing it correctly.
How to Place an Order with Riching PCB
- Send files via WhatsApp (+86 13760473650) or email (xcepcb@163.com)
- Include: Gerber zip, NC drill, stackup drawing with material and thickness, impedance target, quantity and IPC Class
- DFM review: 2–4 hours — you receive confirmation or DFM report
- Payment: after DFM approval, before production starts
- Production: 5–10 working days depending on material
- Shipping: DHL Express tracking number sent same day as shipment
No MOQ. From 1 board. No NDA required for standard DFM review.
Conclusion
Rogers PCB prototype from China: RO4350B 5–7 days, RO3003/RT5880 7–10 days, door-to-door 8–15 working days including DHL Express. Total cost typically 40–60% lower than Western fabricators. The key variable is PTFE process capability — verify in-house plasma activation before ordering. Riching PCB stocks RO4350B, RO4003C, RO3003, RT5880, RO3006 and RO3010 as standard inventory with in-house plasma activation and TDR on every lot. See Rogers materials overview for full thickness availability, or Rogers PCB price guide for reference pricing.
Start Your Rogers PCB Prototype — DFM Review Within 4–8 Hours
RO4350B, RO3003, RT5880, RO3006 in stock. No MOQ. Send these files:
- Gerber files (.zip) + NC drill file
- Stackup drawing — material grade + dielectric thickness
- Impedance target and tolerance
- IPC Class and quantity
WhatsApp +86 13760473650— DFM review within 4–8 hours
Rogers PCB Prototype China Q&A
Common questions about Rogers PCB prototype lead times, required files, minimum order quantity and factory verification.
How long does a Rogers PCB prototype take from China?
RO4350B / RO4003C: 5–7 days manufacturing + 3–5 days DHL = 8–12 days door-to-door. RO3003 / RT5880: 7–10 days + 3–5 days shipping = 10–15 days. Hybrid Rogers + FR4: 10–14 days manufacturing.
What files do I need to send?
Gerber zip + NC drill + stackup drawing (material grade + dielectric thickness per layer) + impedance target and tolerance + IPC Class + quantity. Missing stackup drawing is the most common DFM delay cause.
Why is Rogers PTFE prototype longer than RO4350B?
PTFE needs plasma hole wall activation — in-house, within 2–4 hours of plating. Adds 2–3 days. Same speed as RO4350B means PTFE process is wrong or outsourced.
What is the minimum order quantity?
No MOQ — from 1 board. Ordering 5–10 boards significantly reduces per-board material cost without changing lead time.
How do I verify a Chinese Rogers PCB factory?
Ask RO3003 lead time — 7–10 days = in-house plasma. 5–7 days = red flag. Also ask: plasma in-house? RO3003/RT5880 in stock? TDR every lot?
