PTFE PCB Manufacturing Challenges and Process Considerations

PTFE PCB manufacturing requires more process control than standard FR4 PCB fabrication. PTFE materials are widely used in PTFE PCB manufacturing, RF PCB manufacturing, microwave PCB manufacturing, antenna PCB, radar electronics, satellite communication, high frequency test equipment, and low-loss signal transmission applications.

The main reason engineers choose PTFE PCB is its strong high frequency performance. Rogers describes its RT/duroid high frequency circuit materials as filled PTFE composite laminates used in high reliability, aerospace, and defense applications. These materials can support demanding RF and microwave circuits, but they also require careful processing.

For buyers and engineers, PTFE PCB should not be treated like a normal FR4 board. Material handling, drilling, hole preparation, plating, lamination, dimensional stability, controlled impedance, and surface finish should all be reviewed before production.

Quick Summary

PTFE PCB is commonly used in microwave circuits, radar PCB, antenna systems, RF modules, satellite communication, and low-loss high frequency signal applications.

Compared with standard FR4, PTFE materials are softer and more difficult to process, so drilling, plating, bonding, and dimensional control require more manufacturing experience.

Important PTFE PCB manufacturing requirements include stable material handling, accurate drilling, reliable plated through holes, controlled lamination, copper adhesion, stackup review, and impedance control.

For related background, buyers can also review What Is PTFE PCB and Why Is It Used in Microwave Circuits? and Rogers PCB vs PTFE PCB before choosing materials for RF or microwave projects.

Why PTFE PCB Is Used in High Frequency Applications

PTFE PCB is selected when a circuit requires low signal loss, stable dielectric performance, and reliable high frequency behavior.

Common PTFE PCB applications include:

Microwave circuits
RF modules
Radar electronics
Antenna systems
Satellite communication
Aerospace electronics
High frequency test equipment
Low-loss signal transmission boards

In these applications, standard FR4 may not provide enough signal stability or low-loss performance. PTFE materials can help reduce dielectric loss and support better RF and microwave performance.

Rogers also notes in its article on low-loss RF microwave laminates that laminate composition affects both performance and fabrication behavior. This is important because a material with excellent high frequency performance may still require special manufacturing control.

Why PTFE PCB Is More Difficult to Manufacture

PTFE materials behave differently from standard FR4.

They are generally softer, less rigid, and more sensitive during drilling and processing. If the factory does not use suitable process control, the final PCB may have poor hole quality, weak plating reliability, dimensional variation, or unstable production repeatability.

Common PTFE PCB manufacturing challenges include:

Material softness
Drilling difficulty
Hole wall preparation
Copper adhesion
Plated through-hole reliability
Lamination control
Dimensional stability
Stackup tolerance
Controlled impedance consistency

For this reason, PTFE PCB projects should be reviewed by a manufacturer with real high frequency PCB experience, not only standard FR4 production capability.

Material Handling and Storage

PTFE materials need careful handling before and during production.

Improper handling may affect surface quality, dimensional stability, or bonding performance. The manufacturer should control material storage, cleaning, baking if required, and handling conditions according to the material type and project requirement.

For high frequency PCB projects, material identity should also be confirmed clearly. PTFE laminates may come in different thicknesses, copper types, dielectric constants, and loss performance levels.

Before production, the material requirement should be clearly stated in the stackup or quotation request. If the material is not confirmed, the manufacturer can review the design based on working frequency, signal loss requirement, board thickness, and application background.

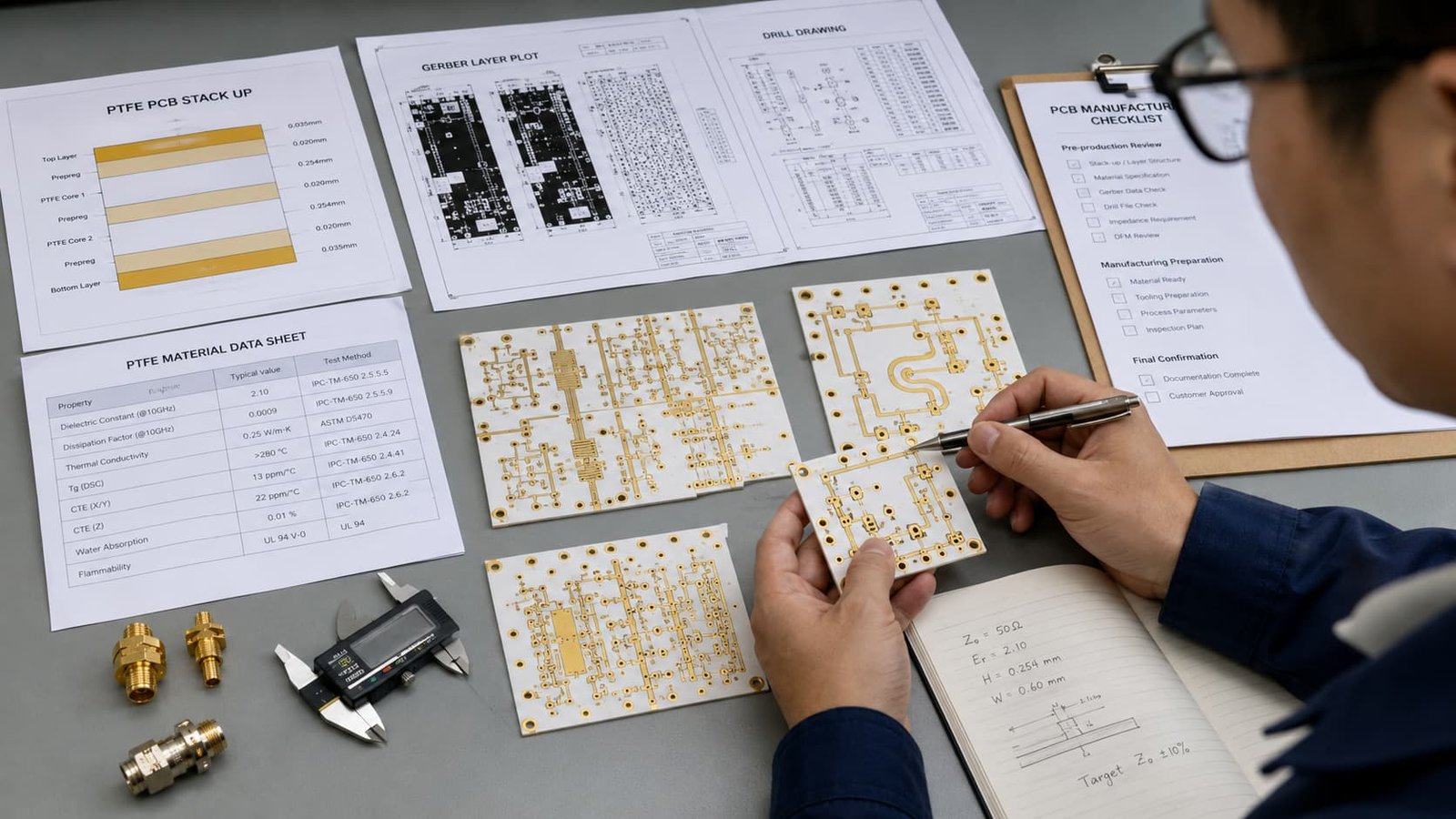

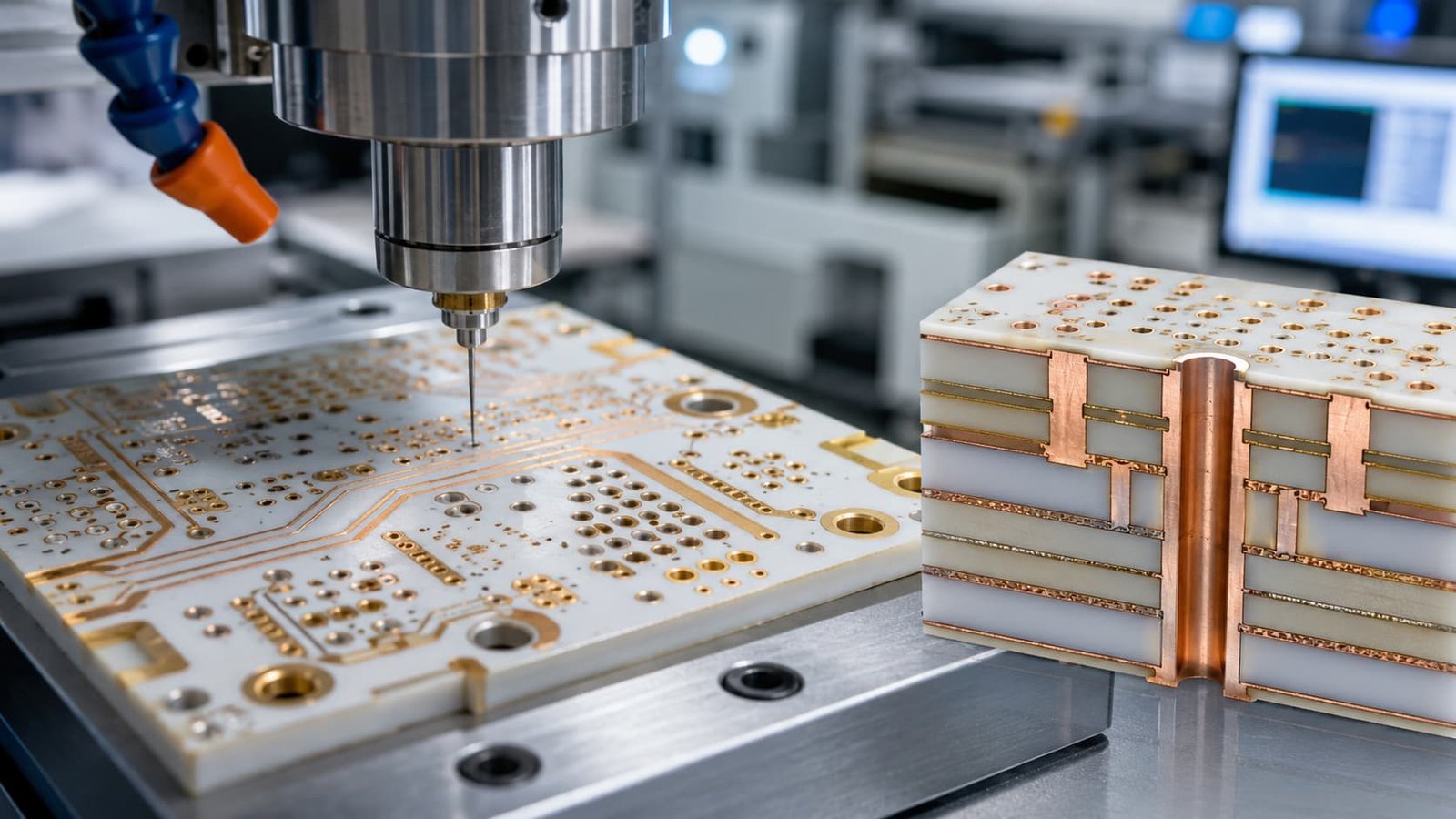

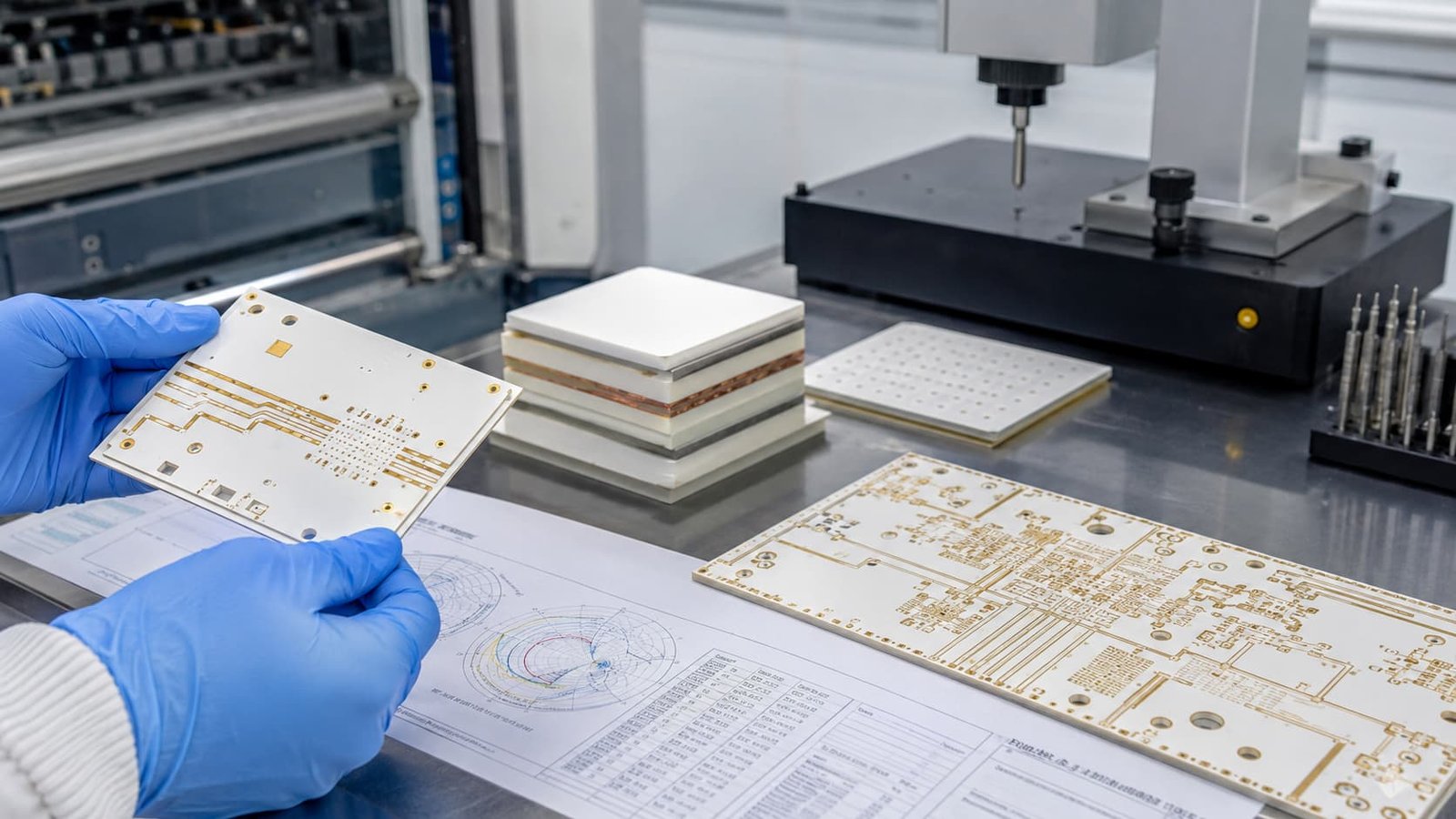

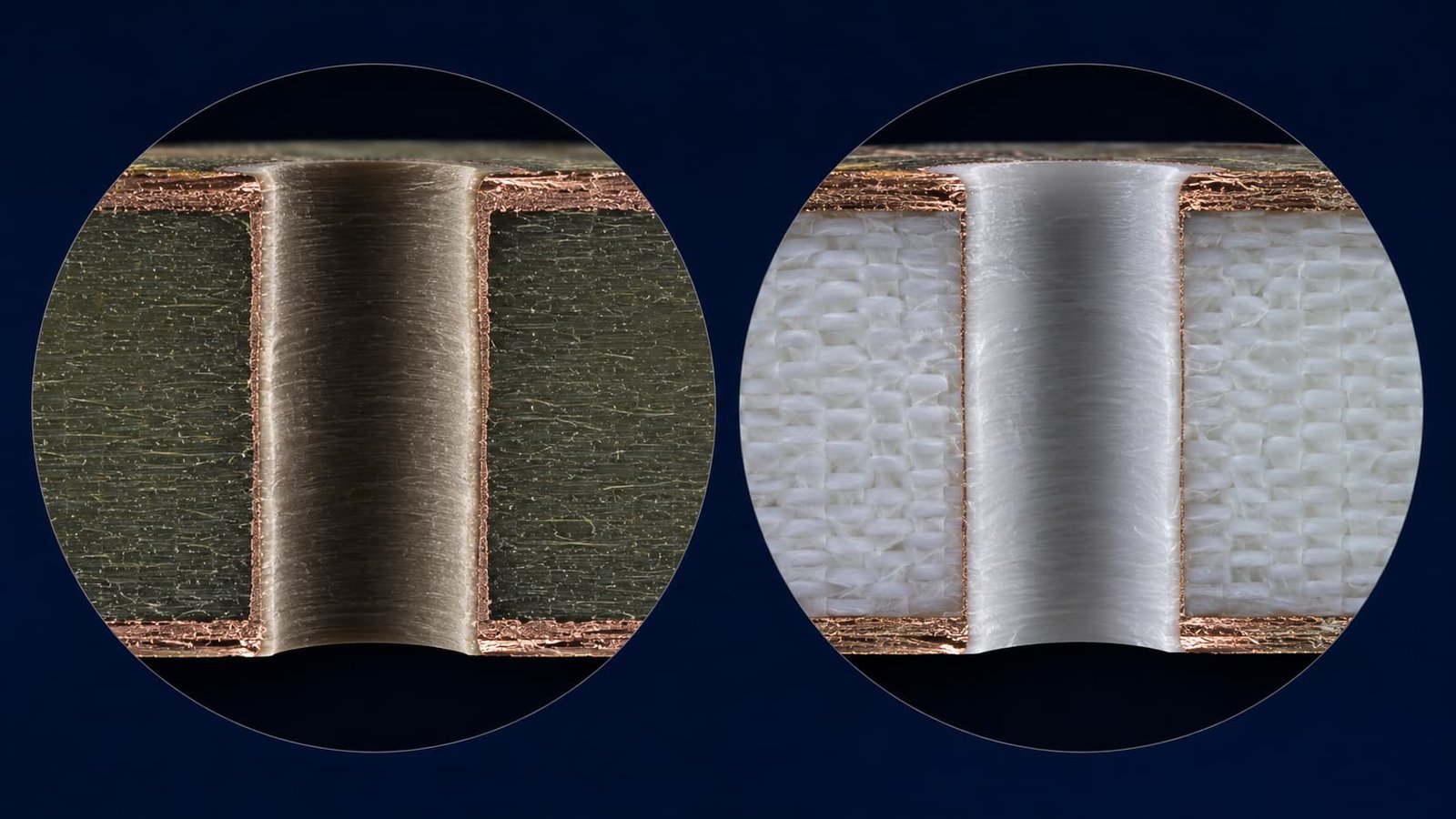

Drilling Challenges in PTFE PCB

Drilling is one of the most important challenges in PTFE PCB manufacturing.

Because PTFE materials are softer than standard FR4, poor drilling control may cause hole roughness, deformation, smear, or poor hole wall quality. This can affect plated through-hole reliability and final electrical connection.

Important drilling factors include:

Drill bit selection
Spindle speed
Feed rate
Hole size
Board thickness
Material thickness
Hole density
Via structure
Connector hole tolerance

Rogers’ RT/duroid 5870/5880 fabrication guidelines explain that drilled holes in PTFE-based laminates must be treated before conductive seed layer deposition, because poor surface activation may result in weak metal adhesion or plating problems.

For RF and microwave PCB projects, drilling quality can also affect grounding vias, signal transitions, connector areas, and RF performance. This is why via design should be reviewed together with stackup and material selection.

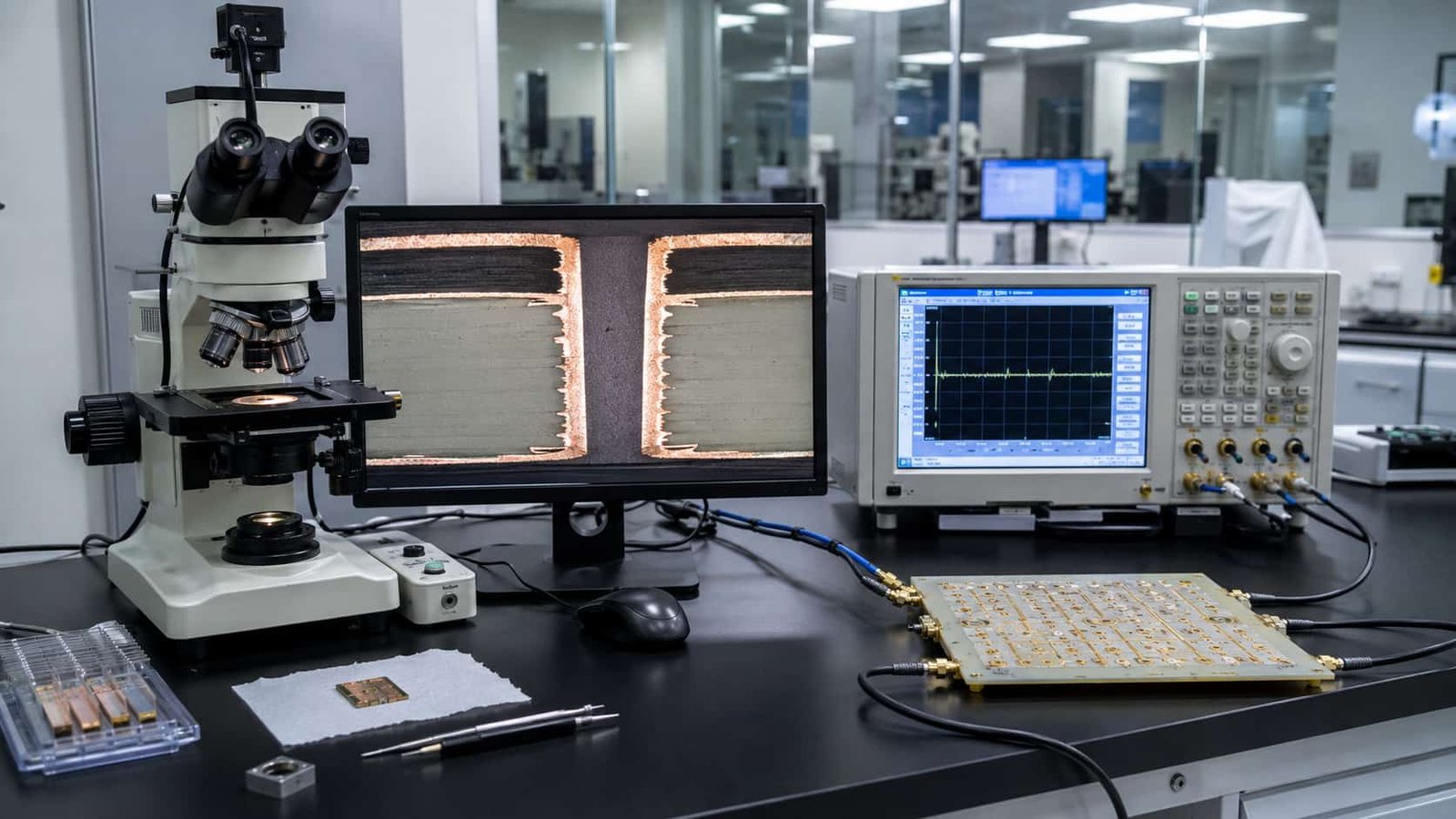

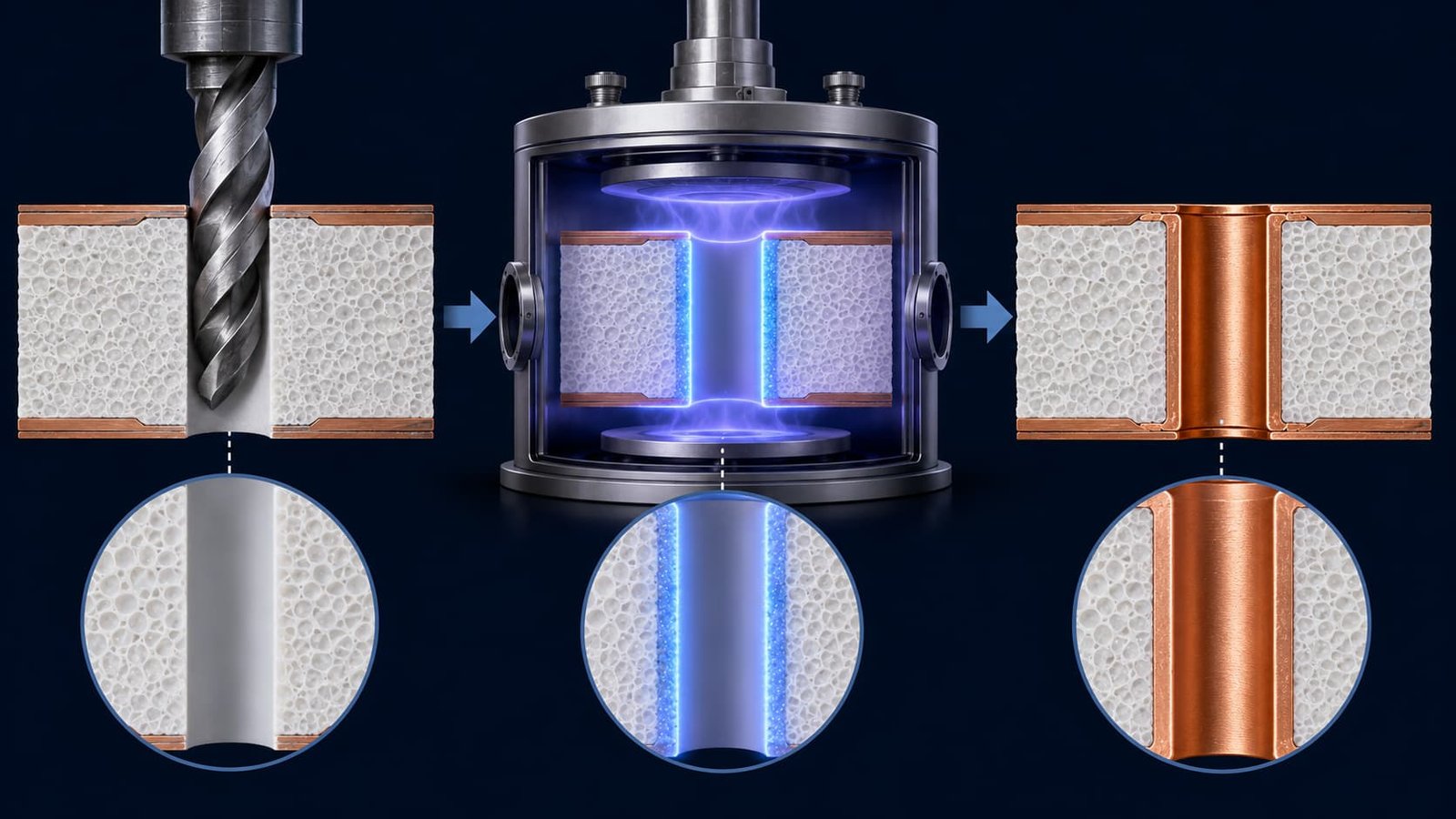

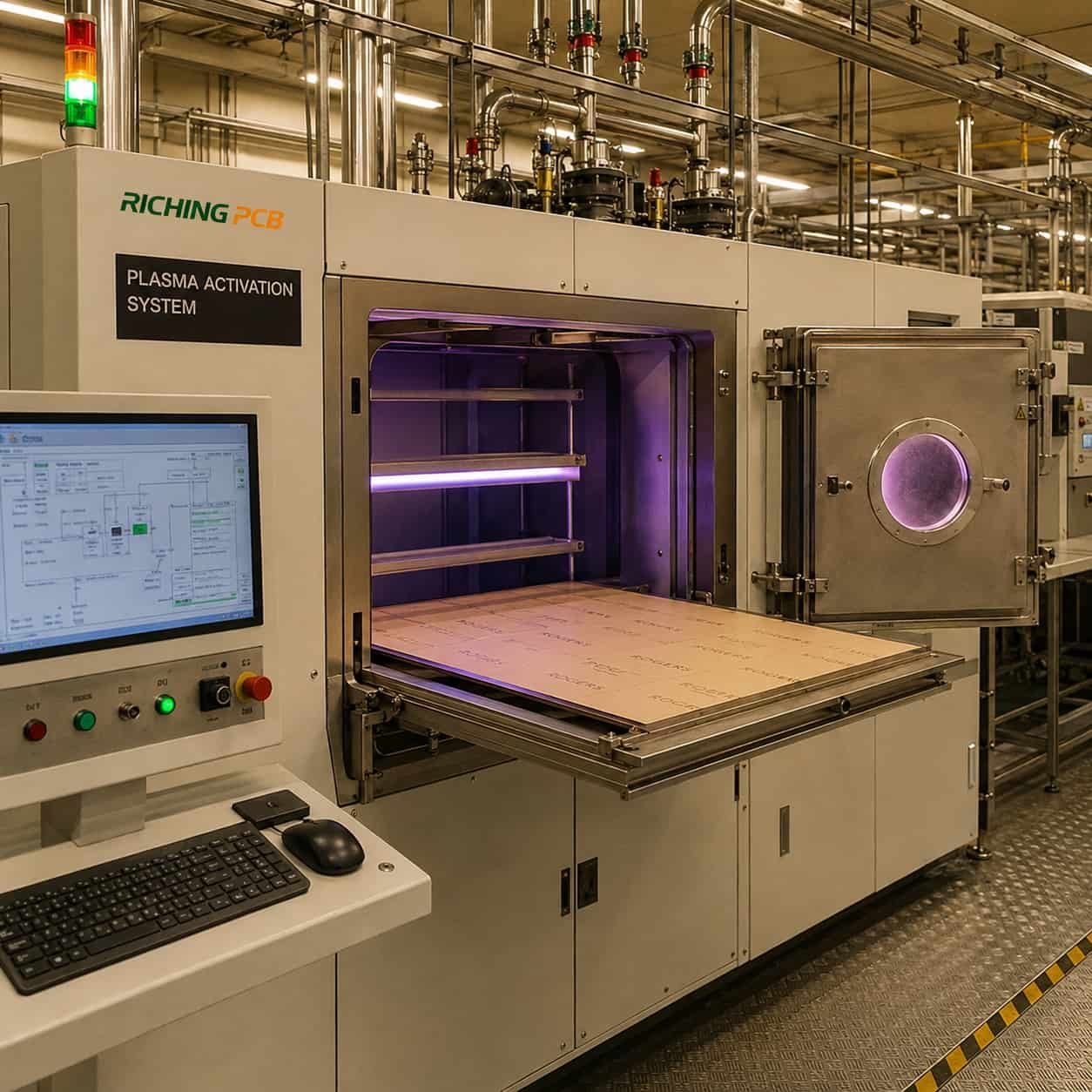

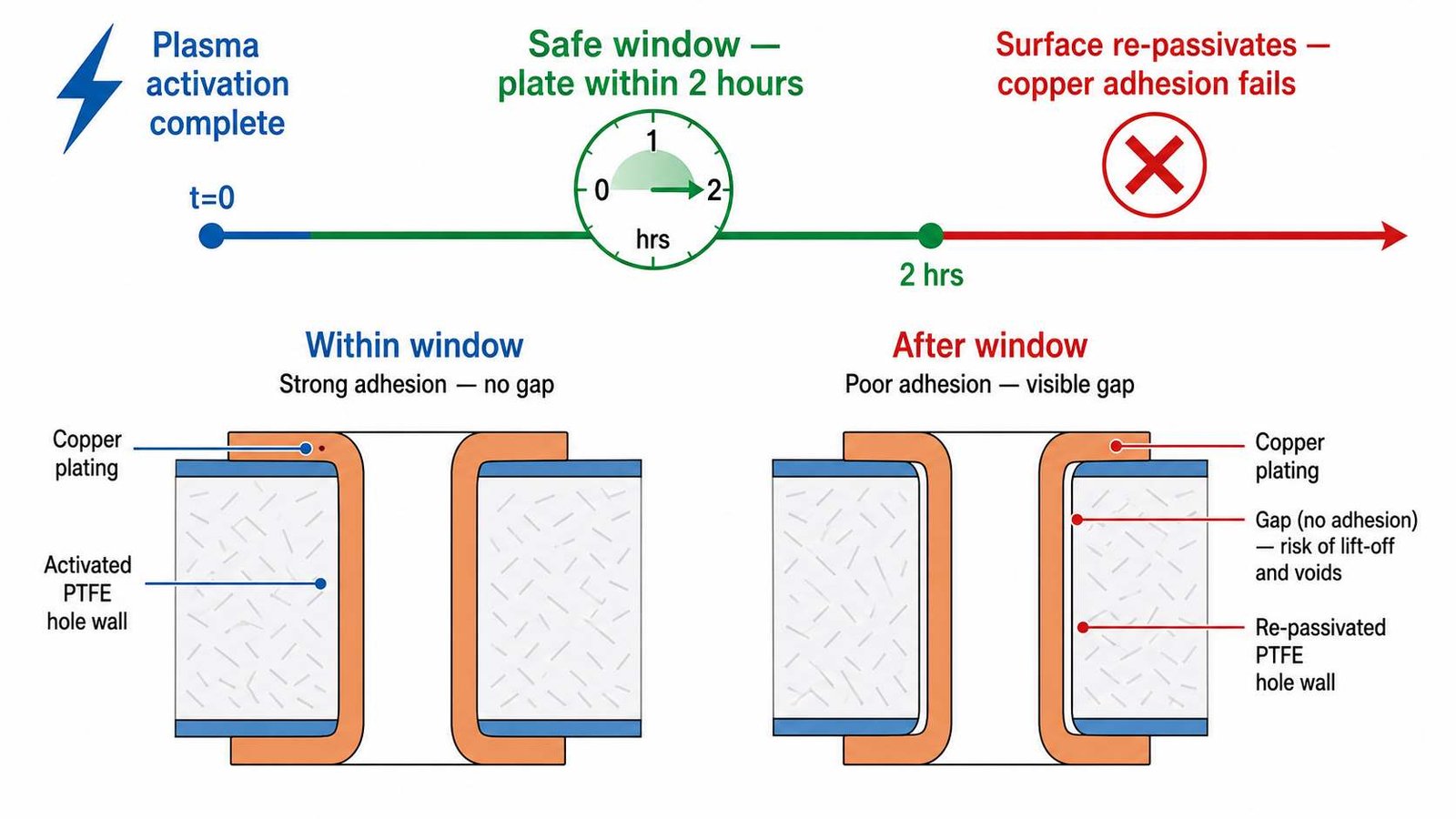

Hole Wall Preparation and Plating

Plated through-hole reliability is critical for PTFE PCB.

After drilling, the hole wall must be properly prepared before copper plating. If the preparation is not controlled well, copper adhesion may be weak, which can cause reliability problems during assembly or long-term use.

PTFE PCB plated holes may be used for:

Ground connections
RF transitions
Signal vias
Connector grounding
Via fences
Thermal paths
Multilayer connections

For RF and microwave applications, a via must be electrically reliable and also support stable signal behavior. Poor plating or unstable hole quality may affect both reliability and RF performance.

Lamination and Bonding

PTFE PCB lamination requires careful control because PTFE materials may behave differently from standard epoxy-based FR4 materials.

For multilayer PTFE PCB or PTFE hybrid PCB, lamination should review:

Material compatibility
Bonding system
Temperature profile
Pressure control
Layer registration
Final thickness
Copper balance
Warpage risk

If PTFE is combined with FR4 or other high frequency materials, the stackup becomes more complex. Different materials may have different thermal expansion and bonding behavior.

For hybrid structures, buyers can also review FR4 + Rogers Hybrid PCB Stackup to understand why material compatibility, lamination process, and plated through-hole reliability must be checked before production.

Dimensional Stability

Dimensional stability is important in PTFE PCB manufacturing.

RF and microwave circuits can be sensitive to trace width, spacing, board thickness, and dielectric thickness. If the board dimension changes during processing, the finished PCB may not match the design expectation.

Dimensional variation may affect:

Controlled impedance
Antenna tuning
RF trace geometry
Connector alignment
Layer registration
Final board outline
Assembly fit

For antenna PCB, radar PCB, and microwave PCB, dimensional stability is especially important because the copper pattern and material thickness can directly affect signal behavior.

Controlled Impedance in PTFE PCB

Many PTFE PCB projects require controlled impedance.

Impedance depends on:

Material Dk
Dielectric thickness
Trace width
Copper thickness
Reference plane
Solder mask
Etching tolerance
Final stackup

If the PTFE material thickness or copper trace geometry changes during production, the final impedance may shift. This can cause signal reflection, insertion loss, or poor RF performance.

For this reason, impedance calculation should be based on the real production stackup, not only on a general design assumption. For related technical content, buyers can review Why Controlled Impedance Matters in RF PCB Manufacturing and RF PCB Stackup Design.

Copper Adhesion and Etching Control

Copper adhesion is another important point in PTFE PCB manufacturing.

The copper must remain stable during fabrication, assembly, and operation. Weak adhesion may create reliability issues, especially around fine traces, pads, vias, and RF structures.

Etching control is also important because RF PCB performance depends on accurate trace geometry. Over-etching or under-etching may change trace width and affect impedance.

For PTFE PCB projects, the manufacturer should control:

Copper thickness
Trace width tolerance
Etching uniformity
Pad quality
RF trace geometry
Surface cleanliness
Final inspection

Surface Finish Selection

Surface finish protects exposed copper and supports soldering or assembly.

Common PTFE PCB surface finishes may include:

ENIG
Immersion silver
OSP
HASL
Lead-free HASL
Hard gold for contact areas
Customer-specified finishes

ENIG is commonly used for many RF and microwave PCB projects because it provides a flat surface and stable solderability. Immersion silver may be considered for some RF applications, while OSP or HASL should be reviewed carefully depending on storage, assembly, and reliability requirements.

Surface finish should be selected based on the material, assembly process, RF sensitivity, connector requirement, and customer specification. For more detail, see Surface Finish Options for RF and Microwave PCB.

PTFE PCB Quotation Requirements

To quote a PTFE PCB project accurately, buyers should prepare complete technical information.

Recommended files and details include:

Gerber files
Drill files
PCB stackup
PTFE material requirement
Board thickness
Copper thickness
Surface finish
Controlled impedance requirement
Layer count
Quantity
Working frequency
Application background
Special reliability requirements

If the exact material is not confirmed, the manufacturer can review possible options based on frequency, signal loss requirement, impedance target, stackup design, and production feasibility.

Common PTFE PCB Manufacturing Mistakes

Common mistakes include:

Treating PTFE like standard FR4
Missing stackup details
Unclear material specification
Poor drilling control
Ignoring hole wall preparation
Not reviewing plated through-hole reliability
Changing material without approval
Ignoring dimensional stability
No controlled impedance review
Selecting surface finish only by cost

These issues may not be obvious in the early quotation stage, but they can affect production quality and RF testing results later.

Conclusion

PTFE PCB manufacturing is important for RF, microwave, antenna, radar, satellite communication, and high frequency signal applications. PTFE materials provide low-loss high frequency performance, but they also require careful processing.

Key manufacturing requirements include material handling, drilling control, hole wall preparation, plated through-hole reliability, lamination control, dimensional stability, copper adhesion, controlled impedance, and surface finish selection.

For PTFE PCB projects, early engineering review can help reduce production risk and improve prototype and batch production consistency.
