PTFE PCB Manufacturer — In-House Plasma, RO3003 RT5880 In Stock
Riching PCB manufactures PTFE PCB with in-house plasma activation for Rogers RO3003, RT5880, RT5870, RO3006, RO3010 and Taconic materials. Direct factory in Shenzhen. All major PTFE grades in stock — no 3–4 week material procurement delay. Plasma activation performed on-site within 2 hours of copper plating. TDR every production lot. No MOQ.
Table of Contents
In-house
RF plasma activation
2-hour window enforced
7–10
day PTFE prototype
RO3003 · RT5880 · Taconic
In stock
RO3003 · RT5880 · RO3006
RO3010 · Taconic · F4B
No MOQ
From 1 board
IPC Class 2 / 3
PTFE Material Stock — Every Major Grade Available
PTFE PCB materials cost USD 500–1,500/m² depending on grade. Most factories treat them as special-order items. Riching PCB stocks every major PTFE grade as standard inventory — from RO3003 0.127mm for 77GHz radar to RO3010 Dk 10.2 for compact filter designs.
| Material | Dk | Df | Stock & Lead Time |
|---|---|---|---|
| Rogers RO3003 | 3.0 | 0.0010 | ✅ In stock 0.127 / 0.254mm — 7–10 day prototype |
| Rogers RT5880 | 2.20 | 0.0009 | ✅ In stock 6 thicknesses (0.127–1.575mm) — 7–10 days |
| Rogers RT5870 | 2.33 | 0.0012 | ✅ In stock — 7–10 day prototype |
| Rogers RO3006 | 6.15 | 0.0020 | ✅ In stock — 10–14 day prototype |
| Rogers RO3010 | 10.2 | 0.0022 | ✅ In stock — 10–14 day prototype |
| Taconic TLY-5A / TLP-5 | 2.17–2.20 | 0.0009 | ✅ In stock — 7–10 day prototype |
| Taconic RF-35 | 3.5 | 0.0018 | ✅ In stock — 7–10 day prototype |
| F4BM220 / F4BM300 | 2.20 / 3.0 | 0.0010 / 0.0017 | ✅ In stock — 7–10 day prototype |

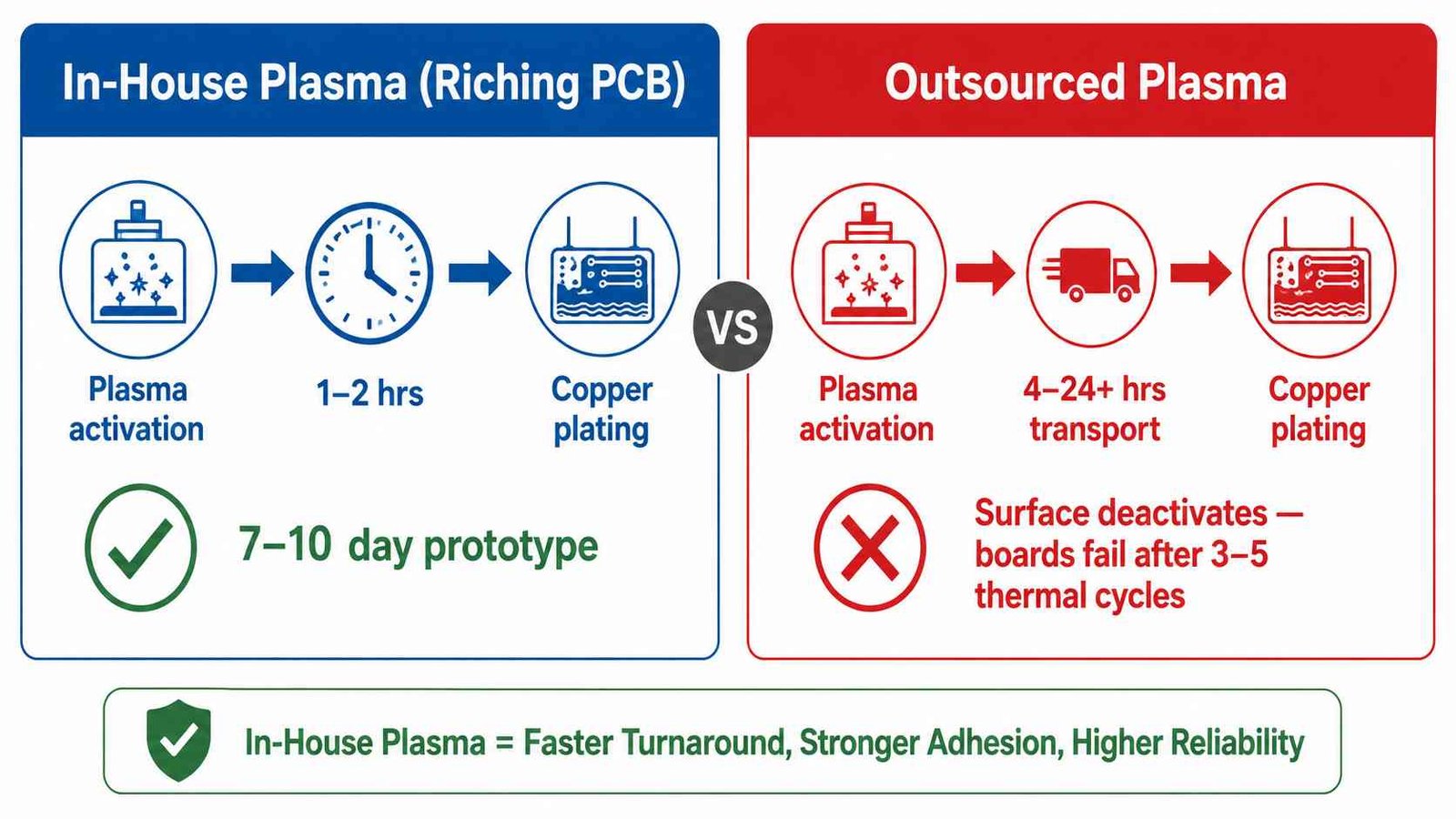

The Plasma Activation Difference
Plasma activation must be performed in-house and within 2 hours of copper plating. After that, the activated PTFE surface begins to deactivate — copper deposits with zero mechanical adhesion and separates from the hole wall after 3–5 thermal cycles. Boards pass initial testing and fail in the field.
Most factories that claim PTFE capability outsource plasma activation to a third-party facility. By the time boards are transported and plating begins, the window has closed. Riching PCB operates an in-house RF plasma chamber — activation and plating occur in the same facility, same production shift.
| Process Step | Riching PCB | Without Genuine PTFE Capability |
|---|---|---|
| Plasma activation | ✅ In-house RF plasma — same shift | 🚩 Outsourced: surface deactivates in transit |
| Activation to plating | ✅ 1–2 hours, enforced | 🚩 4–24+ hours: copper adhesion fails |
| PTFE drill speed | ✅ 40,000–60,000 RPM | 🚩 FR4 speed: PTFE smear blocks plasma |
| Lamination cycles | ✅ Maximum 2 — enforced | 🚩 No limit: Dk shifts, delamination risk |
| Material stock | ✅ RO3003, RT5880, RO3006 on shelf | 🚩 3–4 week procurement per order |
| RO3003 lead time | ✅ 7–10 working days | 🚩 5–7 days = FR4 process on PTFE |
| TDR verification | ✅ Every production lot | 🚩 On request only or not at all |
Applications
| Application | PTFE Material | Key Requirement |
|---|---|---|
| 77 GHz automotive radar | RO3003 0.127mm | In stock, 7–10 day prototype |
| Ka-band satellite terminal (LEO) | RO3003 / RT5880 | Both in stock, hybrid stackup available |
| EW receiver 2–18 GHz | RT5880 0.508mm | Lowest loss, 6 thicknesses in stock |
| Ka-band defense radar (AESA) | RO3003 0.127 / 0.254mm | IPC Class 3, ±5% TDR available |
| 5G mmWave 28 GHz | RO3003 / RT5880 | No material procurement delay |
| High-power phased array | RO3003 (0.50 W/m/K thermal) | Better heat spreading vs RT5880 |
| Compact high-Dk filter | RO3006 / RO3010 | Dk 6.15–10.2, in stock |
Why Engineers Specify Riching PCB for PTFE
- RO3003 0.127mm in stock — the standard 77GHz and Ka-band substrate, no wait
- RT5880 in stock across 6 thicknesses — 0.127 / 0.254 / 0.381 / 0.508 / 0.787 / 1.575mm
- RO3006 and RO3010 in stock — Dk 6.15 and 10.2, rare materials most factories cannot source quickly
- Plasma activation in-house — not outsourced, not subcontracted, done here every order
- PTFE-specific drill programs — 40,000–60,000 RPM, separate from FR4
- Maximum 2 lamination cycles enforced — Dk stability guaranteed
- Rogers 4450F and 2929 bondply in stock — hybrid PTFE + FR4 stackups available
- TDR every production lot — impedance verified before shipment
- IPC Class 3 on request — for defense and aerospace programs
How to Order
- WhatsApp: +86 13760473650
- Send: Gerber zip + NC drill + stackup drawing (PTFE grade + dielectric thickness per layer)
- Specify: impedance target, IPC Class, quantity
- DFM review: 4–8 hours
- No MOQ. From 1 board.
PTFE PCB Manufacturer — Shenzhen Direct Factory
RO3003 · RT5880 · RO3006 · Taconic In Stock
In-House Plasma · 7–10 Day Prototype · No MOQ
Send Gerber + stackup drawing. DFM review within 4–8 hours.
No material procurement delay. IPC Class 2 / 3.
