High Frequency PCB Prototype Manufacturer — 5–10 Day Turnaround
Riching PCB manufactures high frequency PCB prototypes — Rogers, PTFE, Taconic, F4B and FR4 — with 5–10 day turnaround from DFM approval. All major materials in stock, no procurement delay. DFM review within 4–8 hours. No MOQ, from 1 board.
Table of Contents
4–8 hrs
DFM review
quote same time
5–10
day fabrication
from DFM approval
In stock
Rogers · PTFE
FR4 · no wait
No MOQ
From 1 board
IPC Class 2 / 3

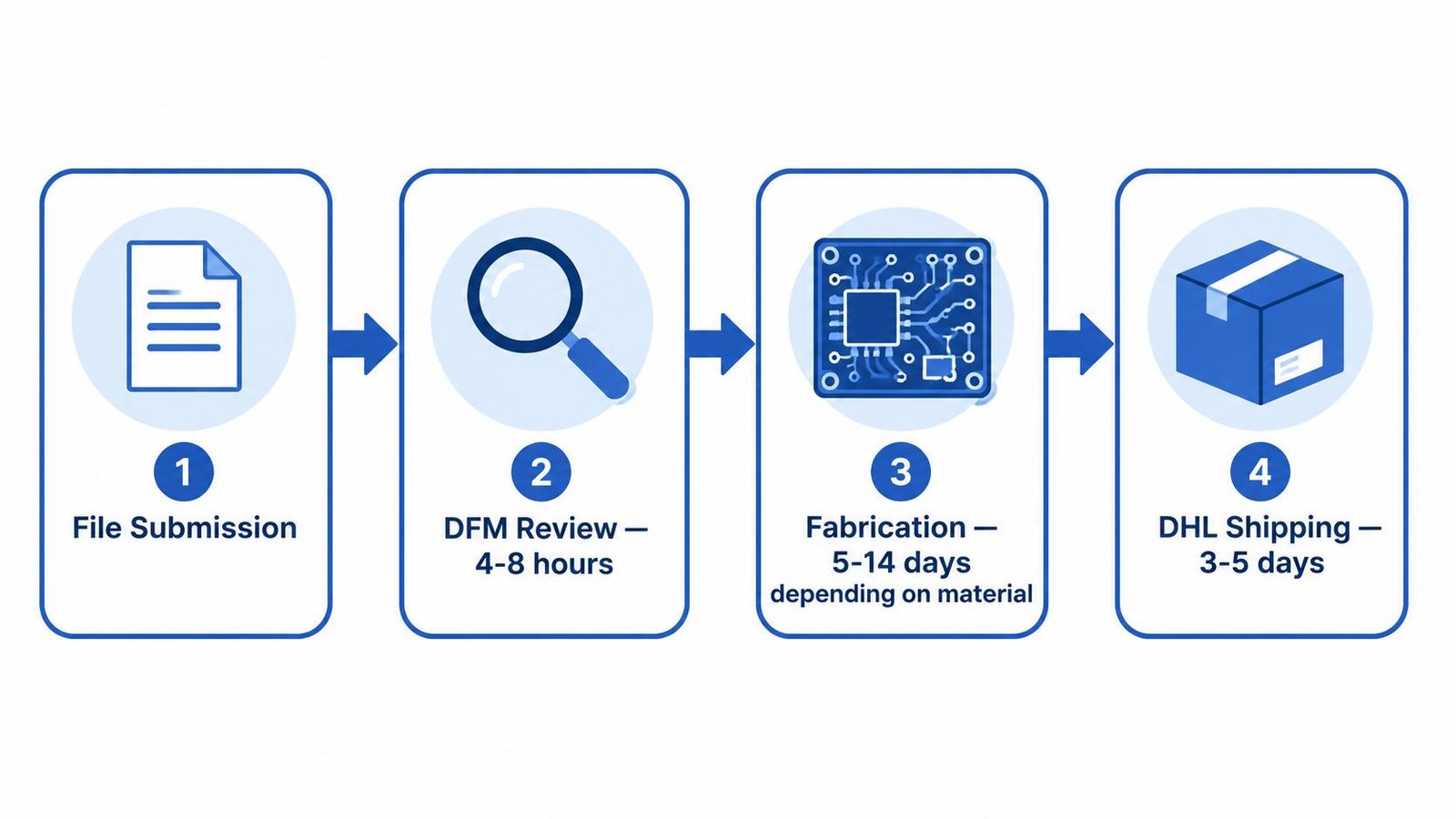

Prototype Process and Lead Time
| Material | DFM Review | Fabrication | Total (Door-to-Door) |
|---|---|---|---|
| FR4 / RO4350B / RO4003C | 4–8 hours | 5–7 days | 8–12 days incl. DHL |
| RO3003 / RT5880 / RT5870 | 4–8 hours | 7–10 days | 10–15 days incl. DHL |
| RO3006 / RO3010 / RO6010 | 4–8 hours | 10–14 days | 13–19 days incl. DHL |
| Taconic / F4B | 4–8 hours | 7–10 days | 10–15 days incl. DHL |
Lead time is counted from DFM approval, not from order placement. Most delays at other factories come from material procurement — Riching PCB stocks Rogers and PTFE materials so fabrication starts immediately after DFM sign-off.

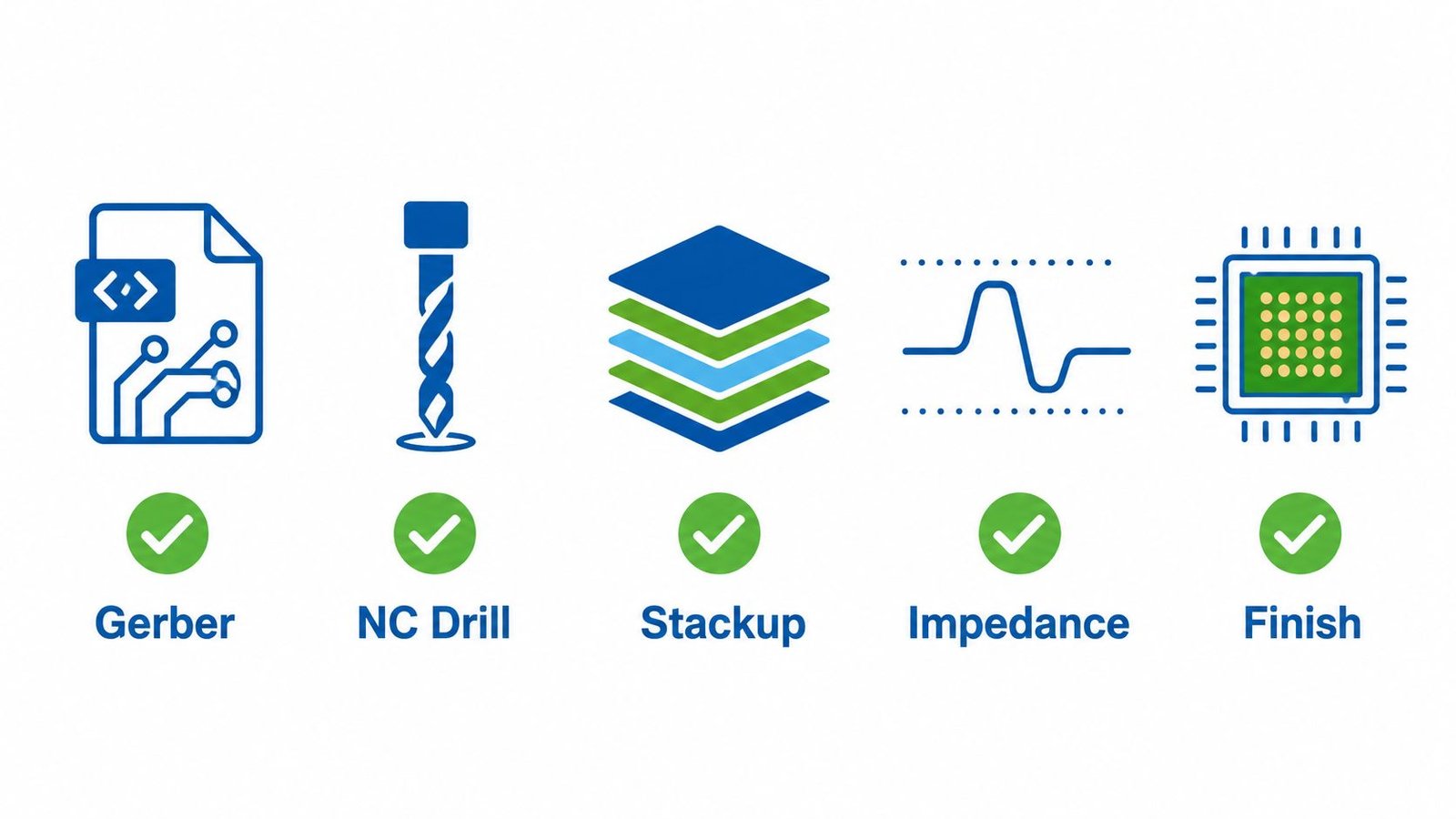

What to Send for an Accurate Quote
| File / Info | What to Include |
|---|---|
| Gerber files (RS-274X) | All layers — copper, soldermask, silkscreen, drill drawing |
| NC drill file | Excellon format, with tool list |
| Stackup drawing | Material grade + dielectric thickness per layer, copper weight, total thickness |
| Impedance requirements | Target impedance (e.g. 50Ω), tolerance (±10% or ±5%), reference layer |
| IPC Class | Class 2 (default) or Class 3 — specify if required |
| Surface finish | ENIG (default), or specify hard gold / ENEPIG / immersion silver |
| Special notes | Plated half-holes, backdrilling, controlled depth routing, etc. |
For a step-by-step walkthrough of file preparation, see Rogers PCB prototype China — lead times and files required. For impedance-critical designs, specify tolerance per controlled impedance PCB manufacturer.
Why Prototype Lead Time Varies by Material
- FR4 and RO4350B/RO4003C: 5–7 days — standard hydrocarbon ceramic process, FR4-compatible drilling and lamination
- RO3003/RT5880/RT5870 (PTFE): 7–10 days — requires in-house plasma activationwithin 2 hours of plating, plus max 2 lamination cycles
- RO3006/RO3010/RO6010: 10–14 days — higher Dk materials require additional process verification
- Multi-panel orders with single-lot material allocation: confirm on enquiry
No MOQ — From 1 Board
Prototype orders start from 1 board with no minimum order quantity. Small panel sizes are accommodated — confirm panel utilization during DFM review for cost efficiency on multi-board orders.
How to Order
- WhatsApp: +86 13760473650
- Send: Gerber zip + NC drill + stackup drawing
- Specify: material grade, impedance target/tolerance, IPC Class, quantity
- DFM review: 4–8 hours. Quote returned same time.
- No MOQ. From 1 board.
High Frequency PCB Prototype Manufacturer — Shenzhen Direct Factory
5–10 Day Turnaround · DFM Review in 4–8 Hours
Rogers · PTFE · FR4 In Stock · No MOQ
Send Gerber + stackup drawing. Quote returned same time as DFM.
From 1 board — no minimum order quantity.
DFM review within 4–8 hours
Request a PCB Quote
Upload your Gerber ZIP file and project requirements. Our engineering team will review your PCB material, stackup, impedance needs, surface finish, and production quantity before quoting.
Please prepare:
- Gerber files in ZIP format
- PCB material or stackup requirements
- Controlled impedance notes if available
- Prototype or batch production quantity
