Rogers PCB Manufacturer in China: Factory Capabilities, Materials and Buyer Guide
What to verify before ordering Rogers PCB from a Chinese manufacturer — materials in stock, plasma activation capability, impedance control and lead time.
Table of Contents
Key point: Rogers RO4350B and RO4003C are hydrocarbon ceramic laminates — any factory with FR4 equipment can process them. Rogers RO3003, RT5880, RT5870, RO3006, and RO3010 are PTFE-based — they require in-house plasma hole wall activation, PTFE-specific drill parameters, and a maximum of 2 lamination press cycles. A Chinese Rogers PCB factory without in-house plasma activation cannot reliably manufacture PTFE materials. Riching PCB is a direct factory in Shenzhen stocking all major Rogers grades with in-house plasma activation, TDR verification on every lot, no MOQ, 5–7 day prototype (RO4350B) and 7–10 days (PTFE).
Sourcing Rogers PCB from China offers significant cost advantages — typically 40–60% lower than equivalent Western fabricators for prototype and low-volume production. The risk is that not every Chinese PCB factory claiming Rogers capability has the process equipment to manufacture PTFE-based Rogers materials correctly. A factory that outsources plasma activation, skips TDR verification, or uses FR4 press parameters on PTFE produces boards that fail in the field under thermal cycling or at operating frequency.
This guide covers what a capable Rogers PCB manufacturer in China must have, which Rogers materials Riching PCB stocks and processes in-house, full factory capabilities, and a buyer checklist for evaluating any Chinese Rogers PCB supplier.
What a Capable Rogers PCB Factory Must Have
Rogers PCB divides into two completely different manufacturing categories:
Rogers RO4000 Series — FR4-Compatible (No Plasma Required)
Rogers RO4350B and RO4003C are hydrocarbon ceramic laminates that process on standard FR4-compatible equipment. Any PCB factory with FR4 capability can in principle process RO4350B — the drill parameters, press cycle, and plating process are the same. The differentiating factor is material stock availability, impedance control accuracy, and TDR verification capability.
Rogers PTFE Series — Plasma Activation Required
Rogers RO3003, RT5880, RT5870, RO3006, RO3010, and RO6010 are PTFE-based materials requiring plasma or sodium naphthalene hole wall activation before copper plating. A factory without in-house plasma activation equipment cannot reliably manufacture these materials. See PTFE PCB manufacturing challenges for the full technical explanation of why outsourced plasma activation fails.

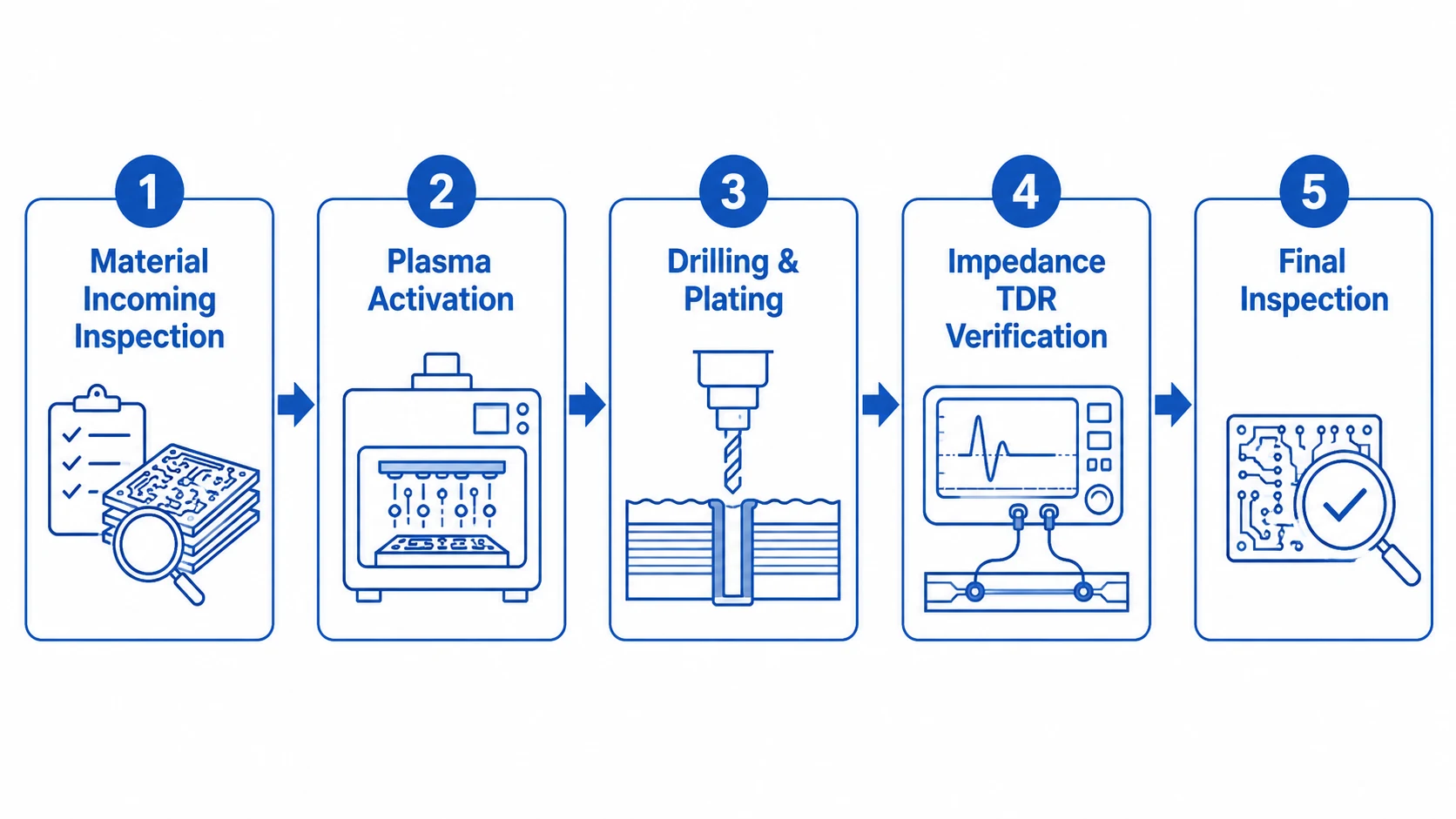

The four non-negotiable capabilities for a Rogers PCB factory handling PTFE materials:
- In-house plasma activation equipment — not outsourced
- PTFE-specific drill parameters — reduced spindle speed to prevent hole wall smearing
- Rogers 2929 or equivalent bondply for hybrid PTFE + FR4 stackups
- TDR impedance verification on every production lot — not first article only
Rogers Materials in Stock at Riching PCB
| Material | Dk | Df | Process Type | Lead Time |
|---|---|---|---|---|
| RO4350B | 3.48 | 0.0037 | FR4-compatible | 5–7 working days |
| RO4003C | 3.38 | 0.0027 | FR4-compatible | 5–7 working days |
| RO3003 | 3.0 | 0.0010 | PTFE — plasma required | 7–10 working days |
| RT5880 | 2.20 | 0.0009 | PTFE — plasma required | 7–10 working days |
| RT5870 | 2.33 | 0.0012 | PTFE — plasma required | 7–10 working days |
| RO3006 | 6.15 | 0.0020 | PTFE — plasma required | 7–10 working days |
| RO3010 | 10.2 | 0.0022 | PTFE — plasma required | 7–10 working days |
| RO6010 | 10.2 | 0.0023 | PTFE — plasma required | 7–10 working days |
Full Factory Capabilities
| Capability | Standard | Available on Request |
|---|---|---|
| Rogers materials | RO4350B, RO4003C, RO3003, RT5880, RT5870, RO3006, RO3010, RO6010 | Other grades on request |
| Other materials | Taconic TLY-5, RF-35, CER-10; F4B series; ZY series | FR4 + Rogers hybrid stackups |
| PTFE plasma activation | In-house, every PTFE order | — |
| Layer count | 2–16 layer | Up to 36 layer |
| Impedance tolerance | ±10% | ±5% with TDR verification |
| Min. drill diameter | 0.2 mm mechanical | 0.1 mm laser |
| Min. line width | 2.5 mil | 2 mil with process review |
| Surface finish | ENIG, immersion silver, OSP, HASL | ENEPIG, hard gold |
| IPC Class | Class 2 | Class 3 |
| MOQ | No MOQ — from 1 board | — |
| Prototype lead time | 5–7 days (RO4350B), 7–10 days (PTFE) | Express available on request |
Buyer Checklist: Evaluating a Chinese Rogers PCB Manufacturer
| Question to Ask | Good Answer | Red Flag |
|---|---|---|
| Is plasma activation performed in-house? | Yes — in-house, every PTFE order | Outsourced or not mentioned |
| Which Rogers grades are in stock? | RO4350B, RO4003C, RO3003, RT5880 | Only RO4350B available |
| Lead time for RO3003 prototype? | 7–10 working days | Same as FR4 — process not different |
| TDR verification on every lot? | Yes — every production lot | First article only |
| Max PTFE lamination press cycles? | Maximum 2 cycles | No limit stated |
| IPC Class 3 available? | Yes — specify on order | Class 2 only |
| DFM review before every order? | Yes — engineering review included | Review only on request |
Why Order Rogers PCB from China vs Western Fabricators
The primary advantage of sourcing Rogers PCB from a capable Chinese manufacturer is cost — typically 40–60% lower unit cost for prototype and low-volume production, with comparable technical capability for most commercial and defense-adjacent applications. The key considerations:
Cost
Rogers RO4350B 2-layer prototype (10 boards, 100×100 mm): approximately USD 150–250 from a Chinese factory vs USD 400–700 from a US or European fabricator. Cost advantage increases with layer count and board complexity.
Lead Time
Rogers RO4350B prototype: 5–7 working days from Riching PCB. Rogers RO3003 and RT5880 PTFE: 7–10 working days. Add 3–5 days shipping to Europe or North America (DHL Express). Total door-to-door: 10–15 working days for most destinations.
Technical Capability
For commercial RF, telecom, and most defense-adjacent applications, a capable Chinese Rogers PCB factory has equivalent technical capability to Western fabricators — same Rogers materials, same IPC standards, same TDR verification. The difference is in process discipline and quality system rigor for the most demanding defense and space applications.
When to Use a Western Fabricator
Specific situations where a Western fabricator may be required: US ITAR-controlled programs requiring domestic sourcing, applications requiring NADCAP or AS9100 certification, or programs with contractual domestic content requirements. For all other applications, a capable Chinese Rogers PCB manufacturer offers equivalent technical quality at significantly lower cost.

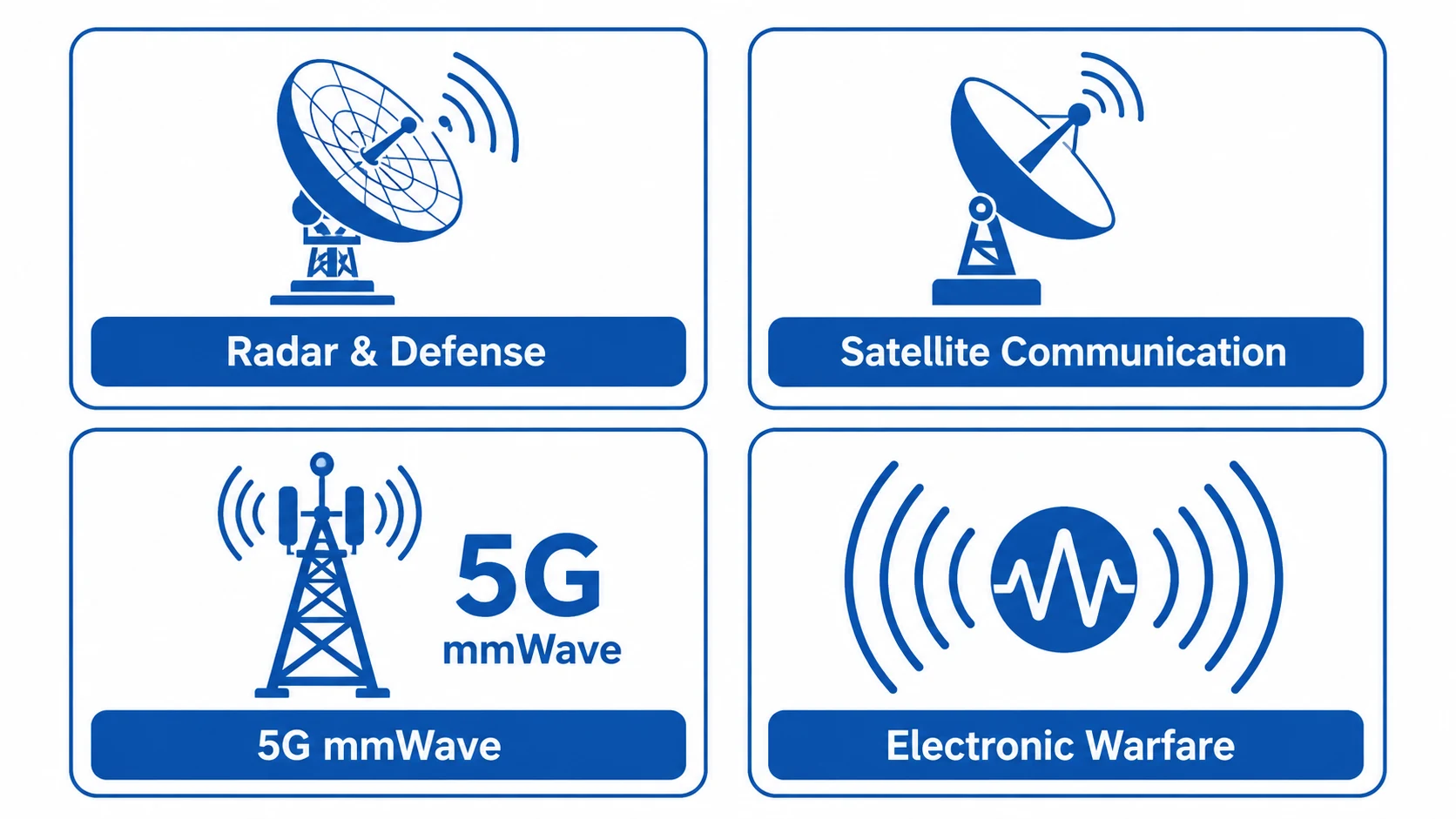

Rogers PCB Applications
- High frequency PCB— Rogers RO4350B for RF circuits 1–12 GHz
- 5G mmWave PCB— RO3003 for 24–40 GHz base station antenna arrays
- 77 GHz radar PCB— RO3003 or RT5880 for automotive radar
- Ka-band PCB— RO3003 for satellite communication terminals
- Electronic warfare PCB— RT5880 for wideband 2–18 GHz ESM/ECM
- Phased array PCB— RO3003 for AESA radar and 5G mmWave arrays
Conclusion
A capable Rogers PCB manufacturer in China must stock Rogers RO4350B, RO4003C, RO3003, and RT5880, perform in-house plasma activation for all PTFE materials, and verify impedance by TDR on every production lot. Riching PCB is a direct factory in Shenzhen with full Rogers and PTFE capability — no MOQ, 5–7 day prototype for RO4350B, 7–10 days for PTFE. See Rogers materials page for full thickness and availability, or contact via WhatsApp for a same-day quotation.
Get a Quote from a Direct Rogers PCB Factory in China
All major Rogers grades in stock. In-house plasma activation. DFM review before every order. Send the following:
- Gerber files + NC drill file
- Rogers material grade and dielectric thickness
- Stackup drawing — layer count, copper weight per layer
- Controlled impedance requirements
- IPC Class and quantity
- Required lead time
WhatsApp +86 13760473650 — quotation within 24 hours
Rogers PCB Manufacturer China Q&A
Common questions about sourcing Rogers PCB from China — PTFE capability verification, lead times, quality comparison and minimum order quantity.
What is the difference between Rogers RO4350B and PTFE materials for Chinese manufacturers?
RO4350B and RO4003C are hydrocarbon ceramic — any factory with FR4 equipment can process them. RO3003, RT5880, RT5870, RO3006, RO3010 are PTFE-based — require in-house plasma hole wall activation. A Chinese factory without plasma activation equipment cannot reliably manufacture PTFE Rogers materials.
How do I verify a Chinese Rogers PCB manufacturer has PTFE capability?
Ask: Is plasma activation in-house or outsourced? Which PTFE grades in stock? Lead time for RO3003? TDR on every lot or first article only? Max lamination cycles for PTFE? A capable factory answers specifically — vague or incorrect answers indicate no PTFE capability.
What is the lead time for Rogers PCB from China?
RO4350B: 5–7 working days. RO3003 / RT5880 PTFE: 7–10 working days. Add 3–5 days DHL Express to Europe or North America. Total door-to-door: typically 10–15 working days. No MOQ — from 1 board.
Is Rogers PCB from China as reliable as from US or European manufacturers?
For commercial RF, telecom, and most defense-adjacent applications — yes. A capable Chinese factory using in-house plasma activation, TDR verification, and IPC Class 2/3 produces equivalent quality using the same Rogers materials and IPC standards. Exceptions: ITAR-controlled programs requiring domestic US sourcing and AS9100/NADCAP certification requirements.
Does Riching PCB offer Rogers PCB with no minimum order quantity?
Yes — prototype from 1 board. RO4350B, RO4003C, RO3003, RT5880 in stock. DFM review before every order. WhatsApp: +86 13760473650 — quotation within 24 hours.
